HONEYWELL VB6A047+047+AL VB6 Series 6-Way Control Ball Valve and Actuator

Product Description

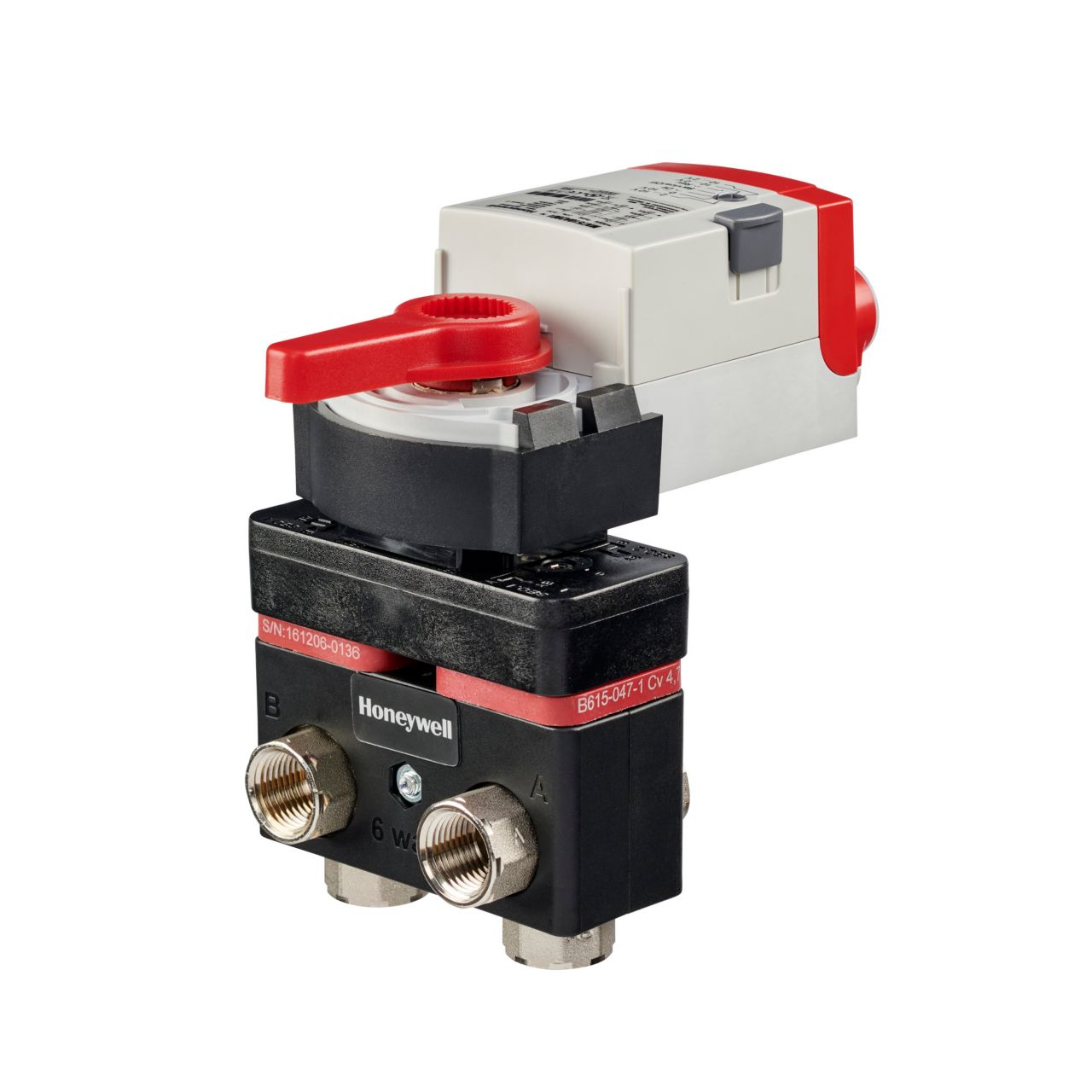

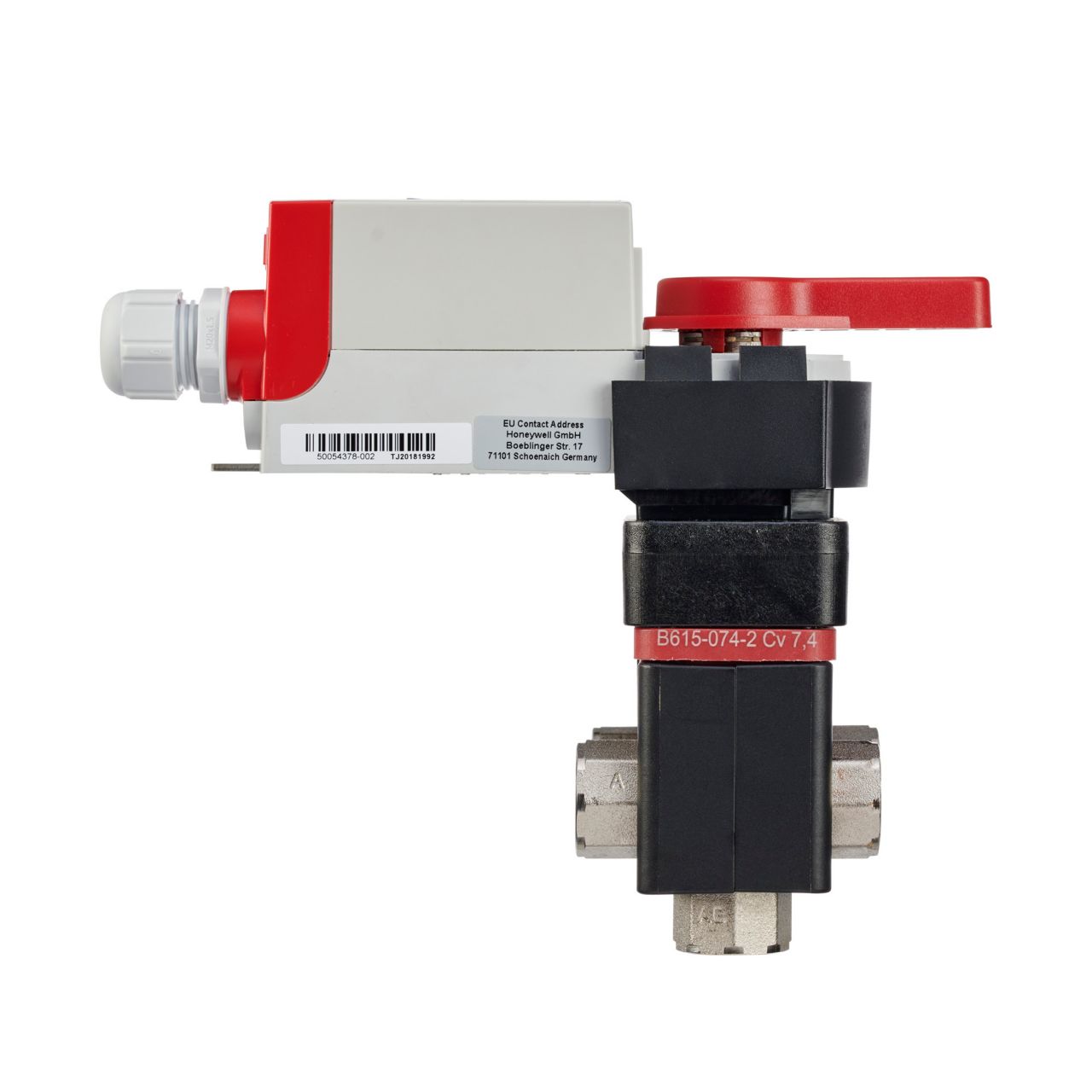

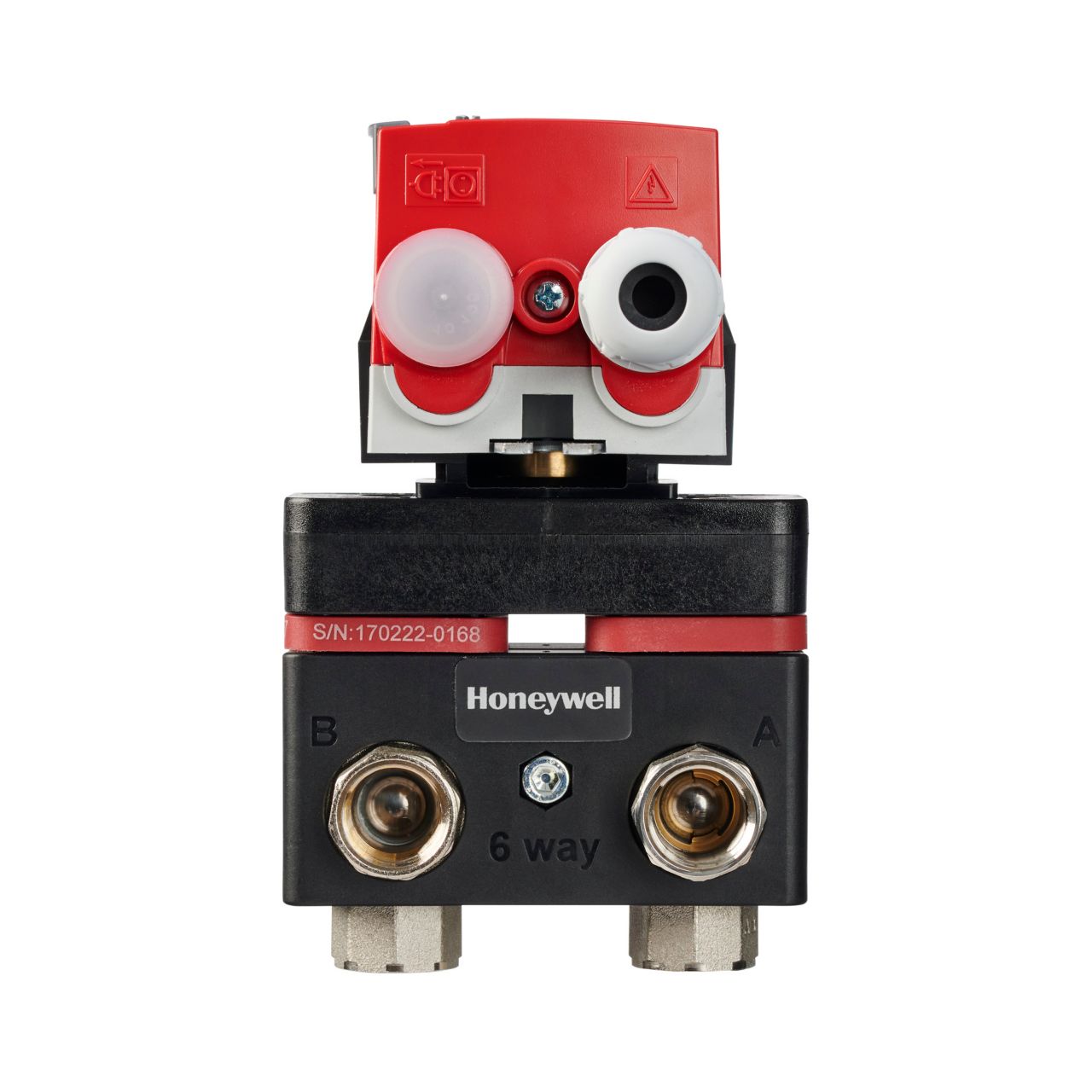

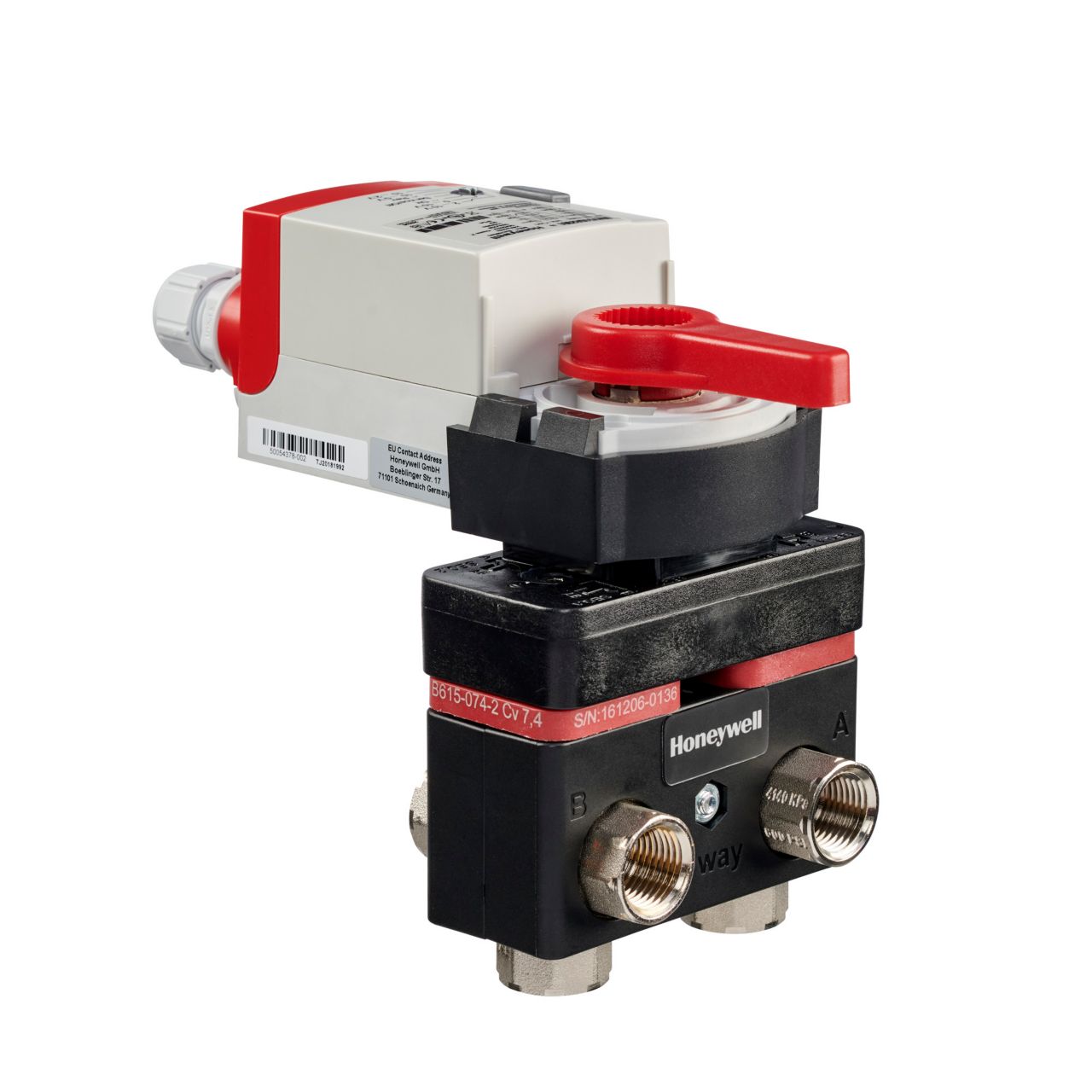

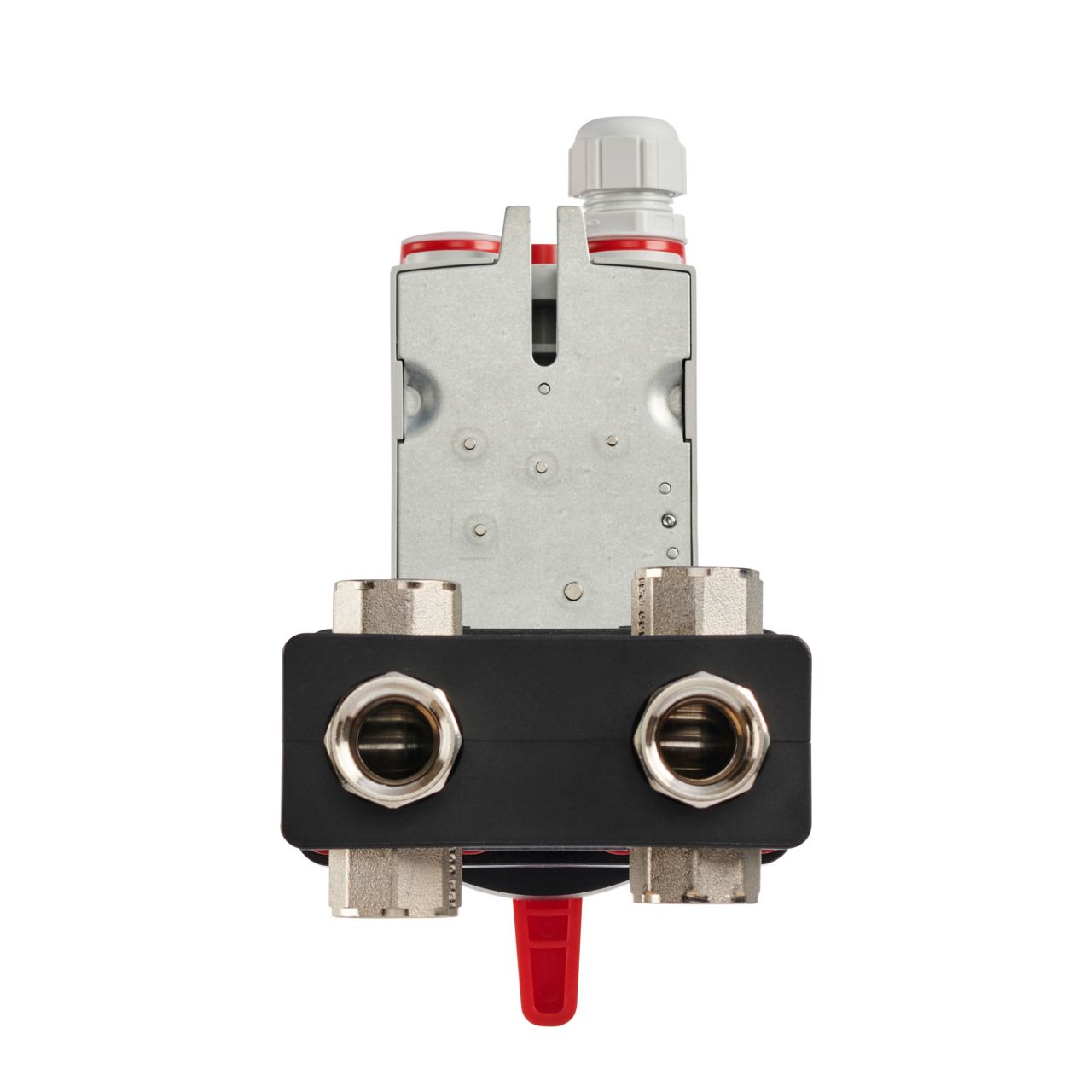

The Honeywell VB6A047+047+AL is a 6-way control ball valve and actuator assembly designed for 4-pipe systems. It features a durable nickel-plated forged brass body with a stainless steel ball and stem. The actuator is direct-coupled and operates at 24 VAC, providing positive shut-off while controlling heating and cooling for single coil applications. The valve ensures equal percentage flow characteristics, making it efficient and reliable.

• Valve size: 1/2 inch NPT
• Includes two SPDT auxiliary switches
• Compatible with water and glycol (up to 60%) service

Product Highlights

This valve assembly is ideal for HVAC applications, providing versatile control for different fluid types in temperature regulation tasks.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell International Inc

Technical Specifications

• Part Number: VB6A047+047+AL
• Model: VB6VALVE
• Category: Components
• Type: Valves
• Material: Brass
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Auxiliary Switches: Two SPDT
• Weight: 1.5 lbs
