Honeywell VB6A047+030+AL Control Valve Assembly

Product Description

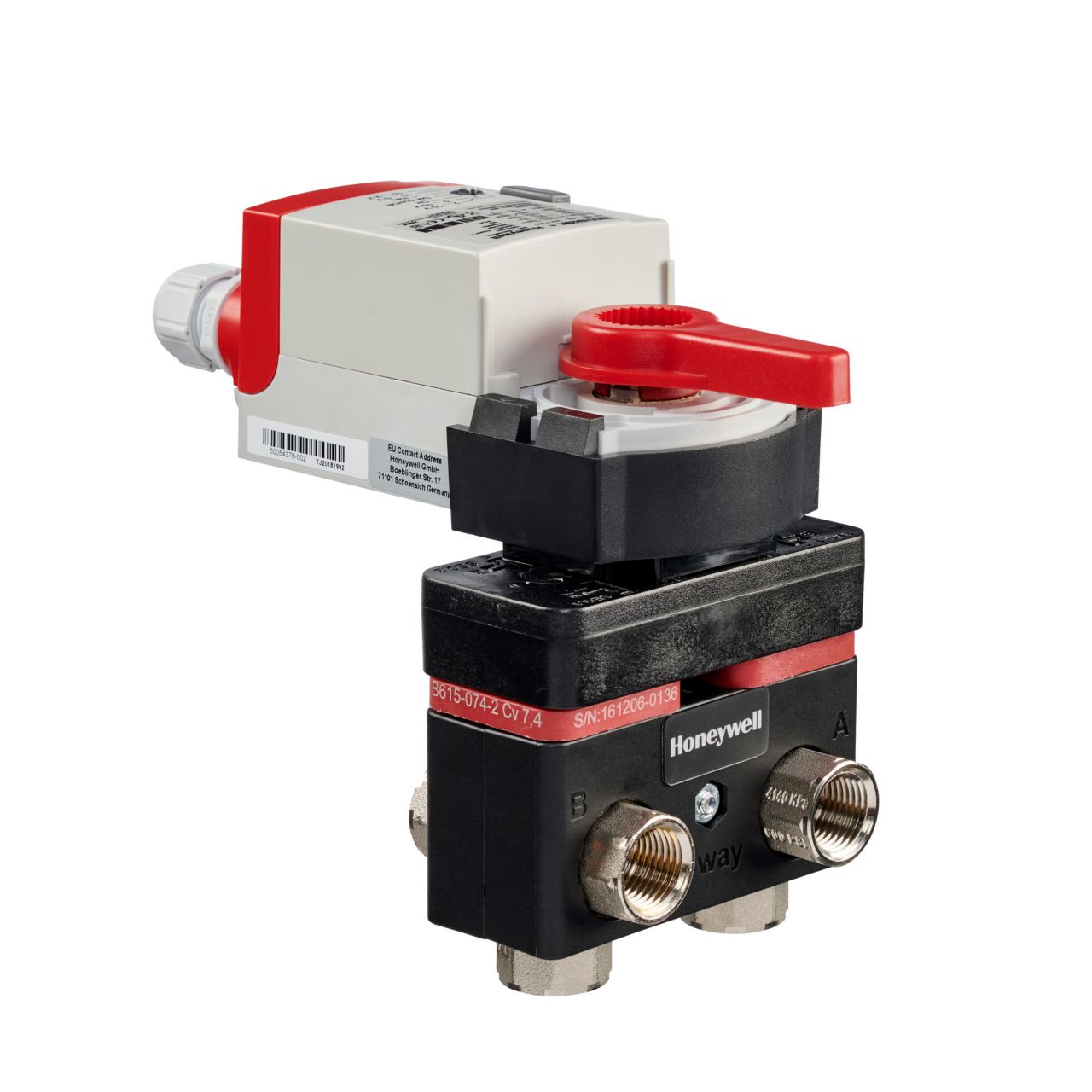

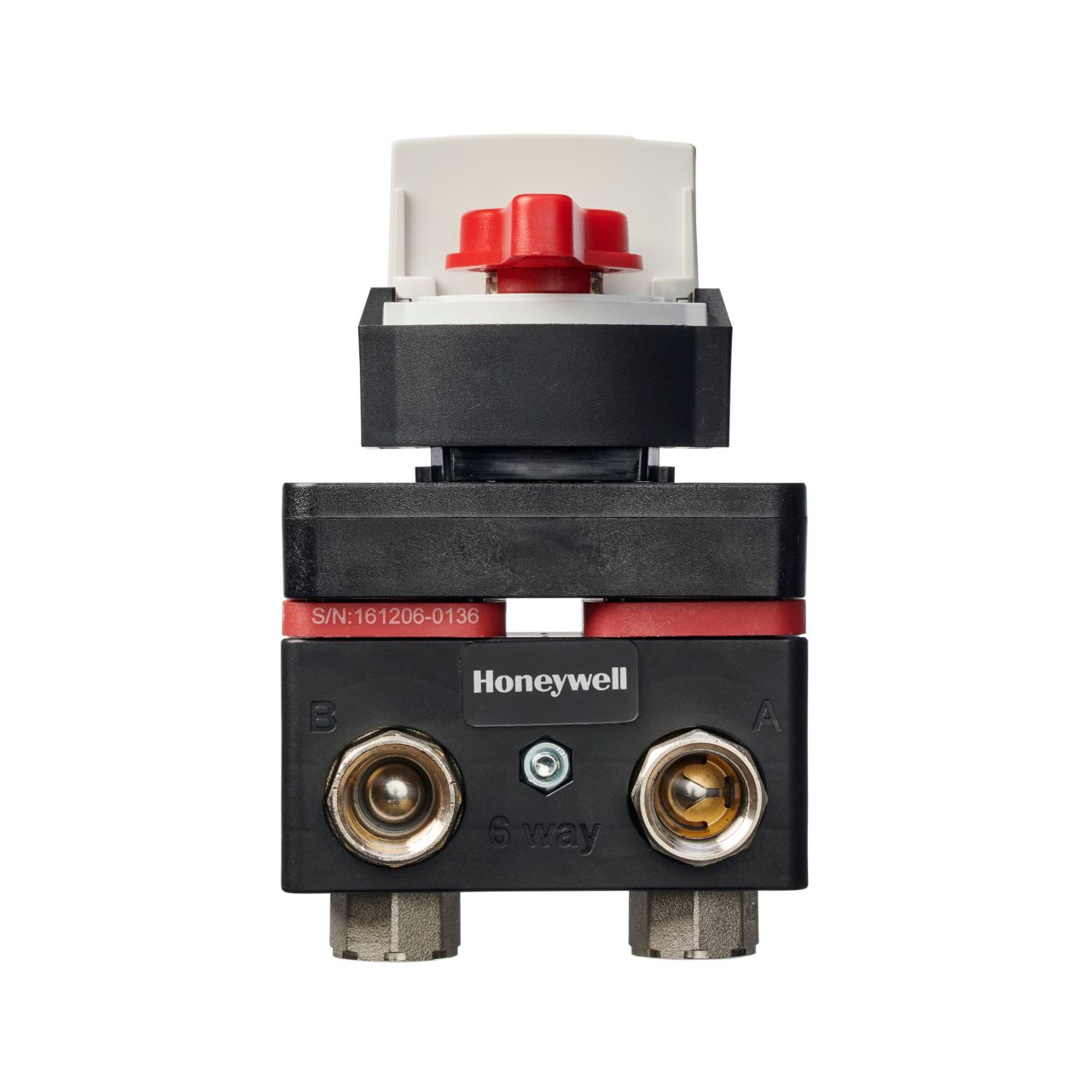

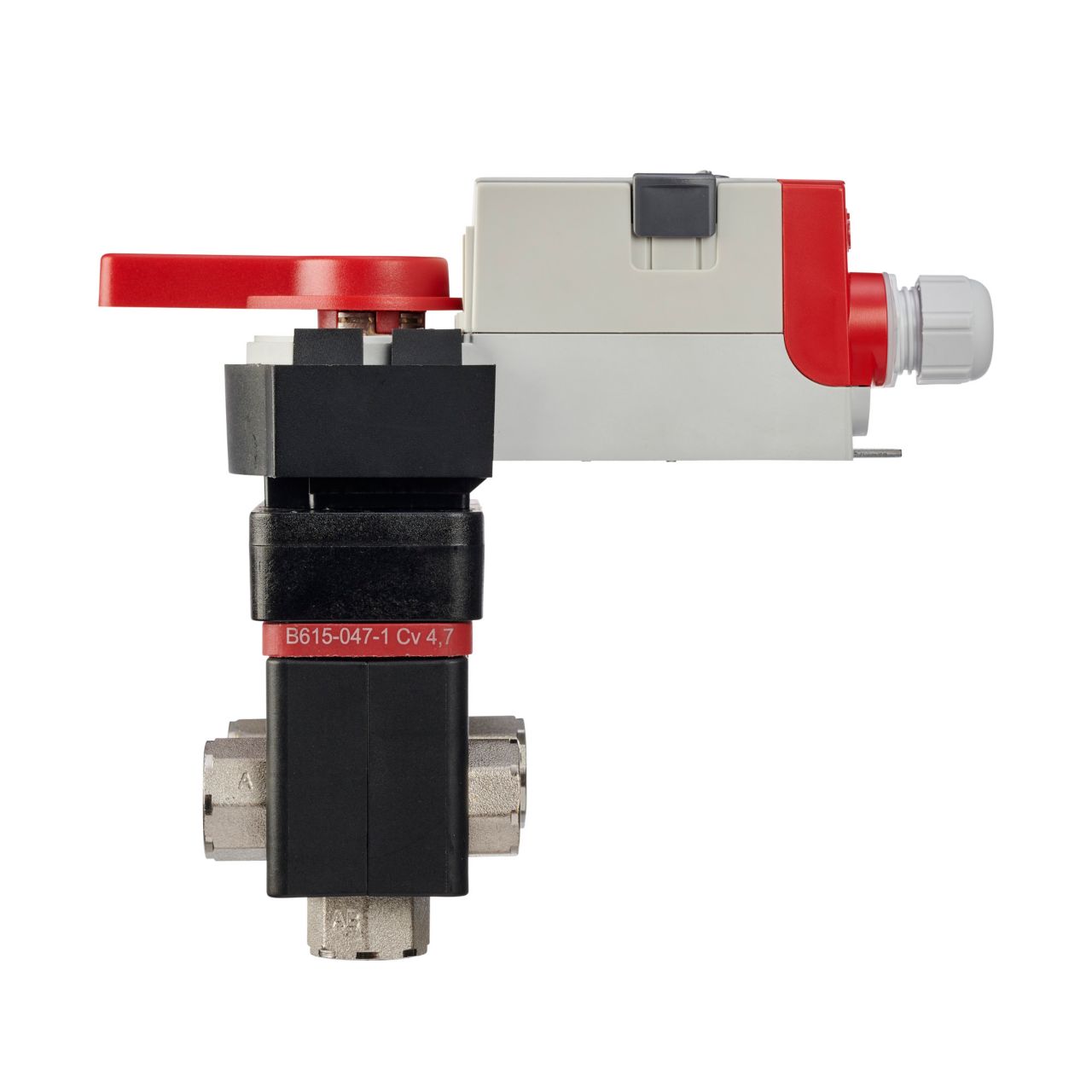

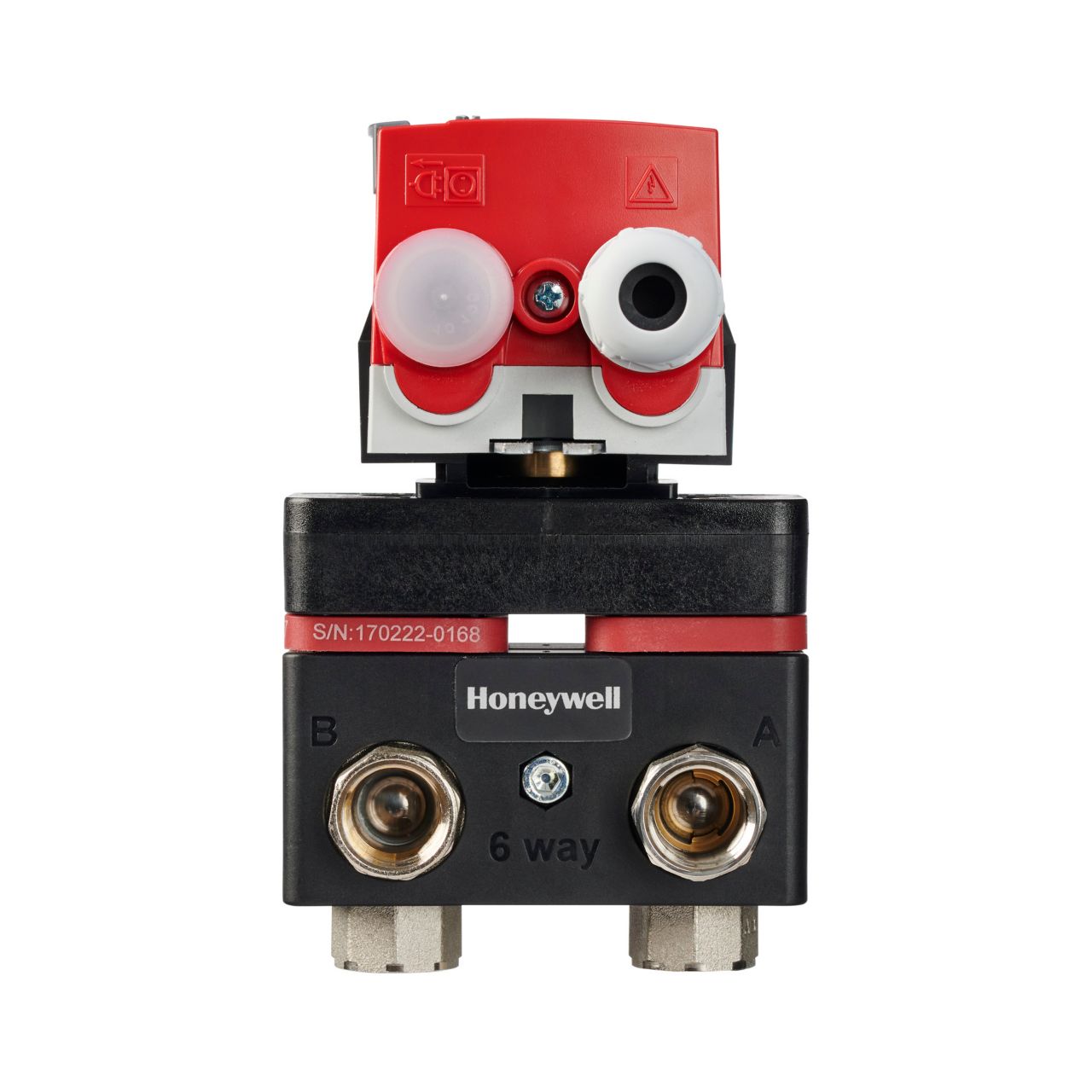

The Honeywell VB6A047+030+AL is a six-way control valve assembly designed for effective water and glycol management. This unit features a half-inch NPT connection and operates with a modulating actuator at 24 VAC. It maintains sequence one with a flow coefficient of 4.7 Cv and sequence two with 3.0 Cv, making it suitable for closed loop systems controlling heated or cooled water. The valve body is made from nickel-plated forged brass with a stainless steel ball and stem for enhanced durability.

• Suitable for water and glycol up to sixty percent.
• Equal percentage flow characteristic for precise control.
• Operational temperature range from negative five degrees Fahrenheit to one hundred forty degrees Fahrenheit.

Product Highlights

This control valve assembly is designed for high reliability in water and glycol applications, ensuring efficient thermal management.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VB6A047+030+AL
• Model: VB6VALVE
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Electrical Connections: Field Wiring 14-22 AWG
• Auxiliary Switches: Two SPDT
