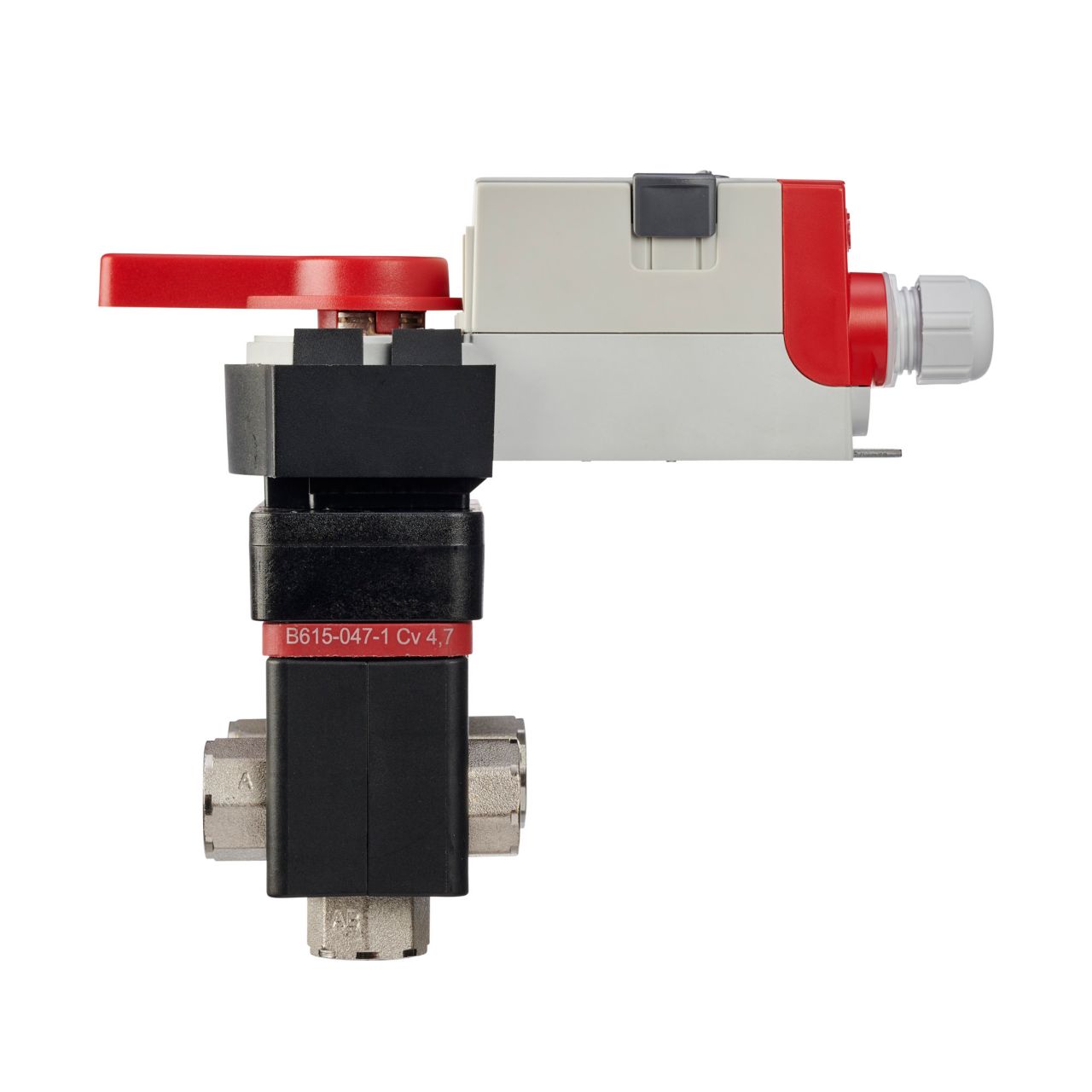

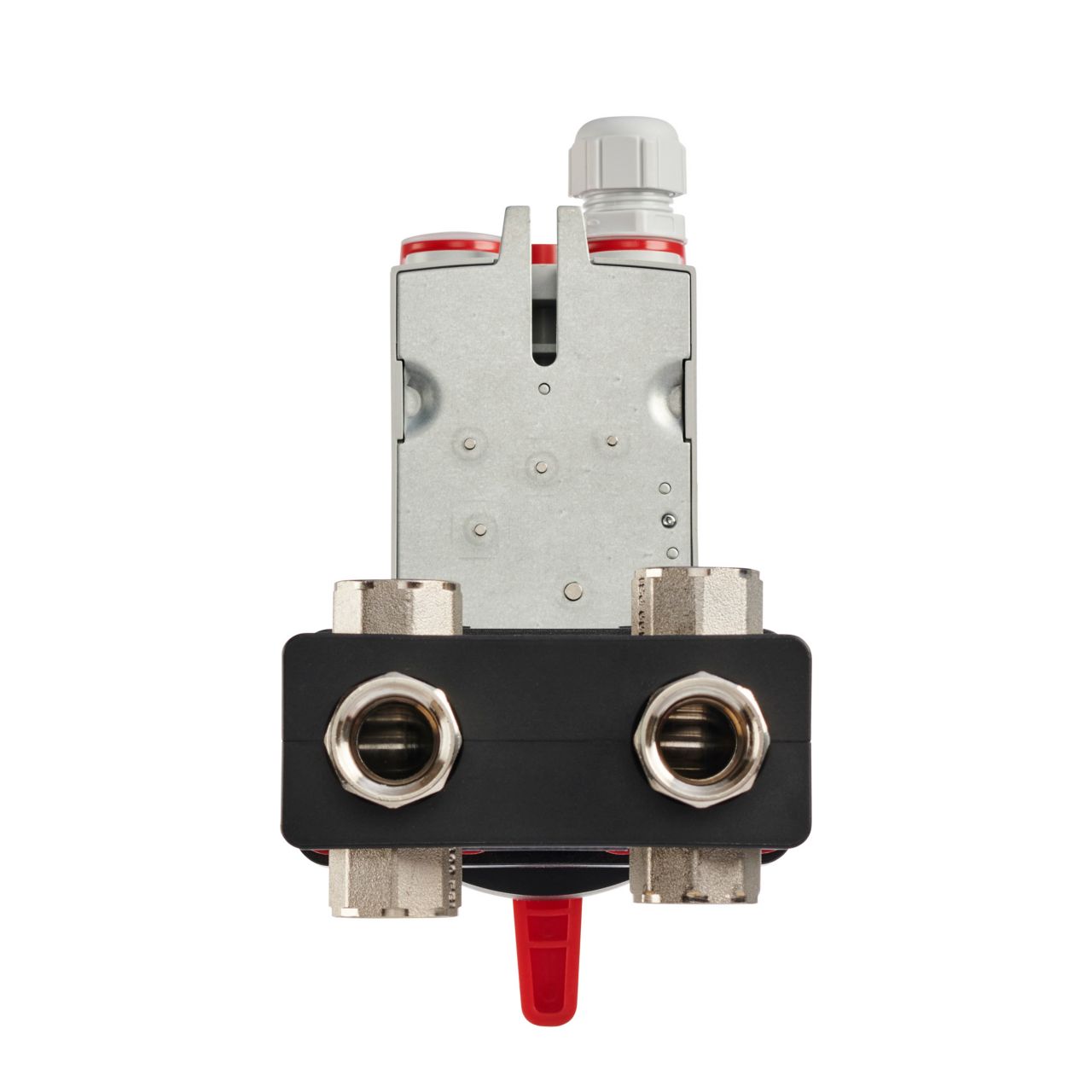

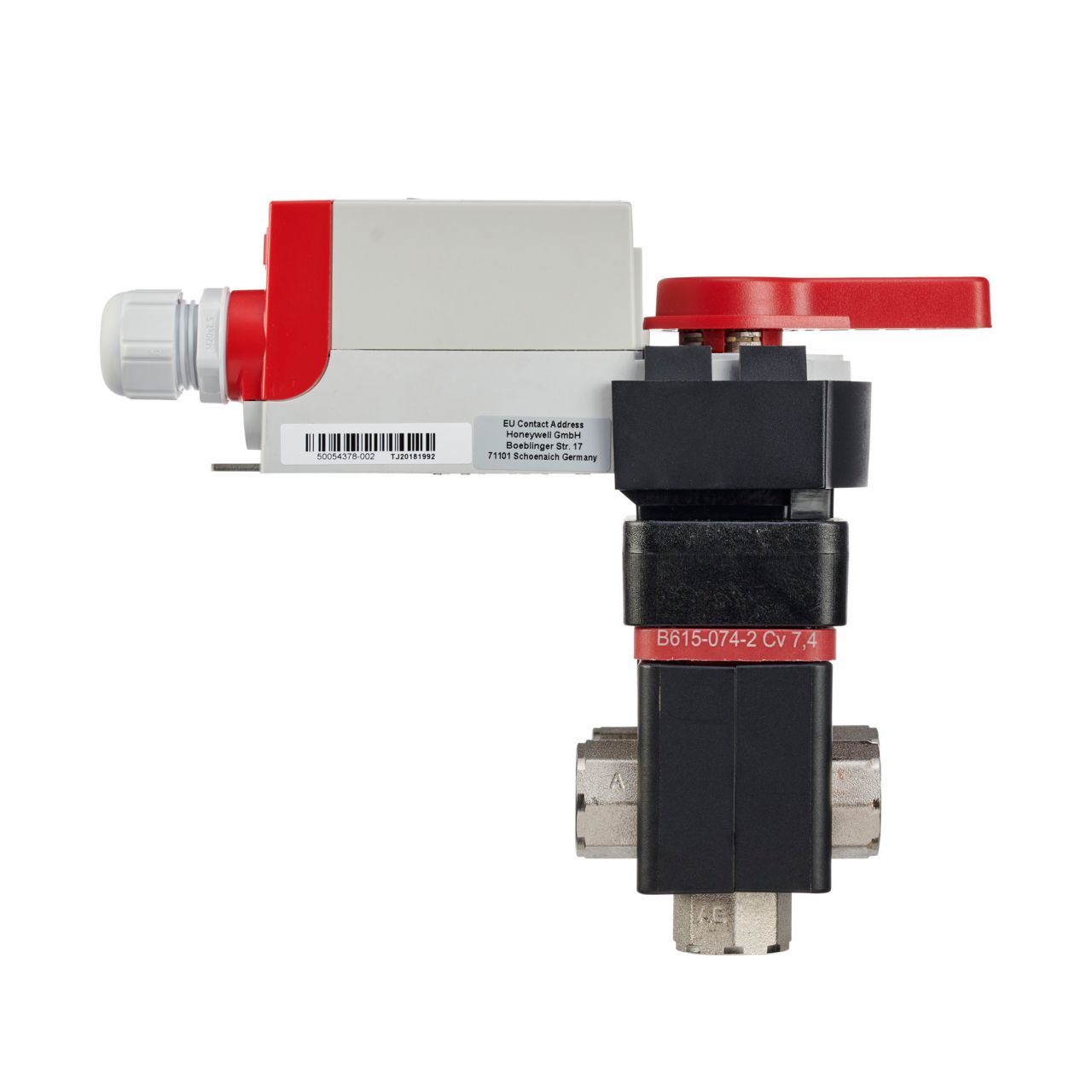

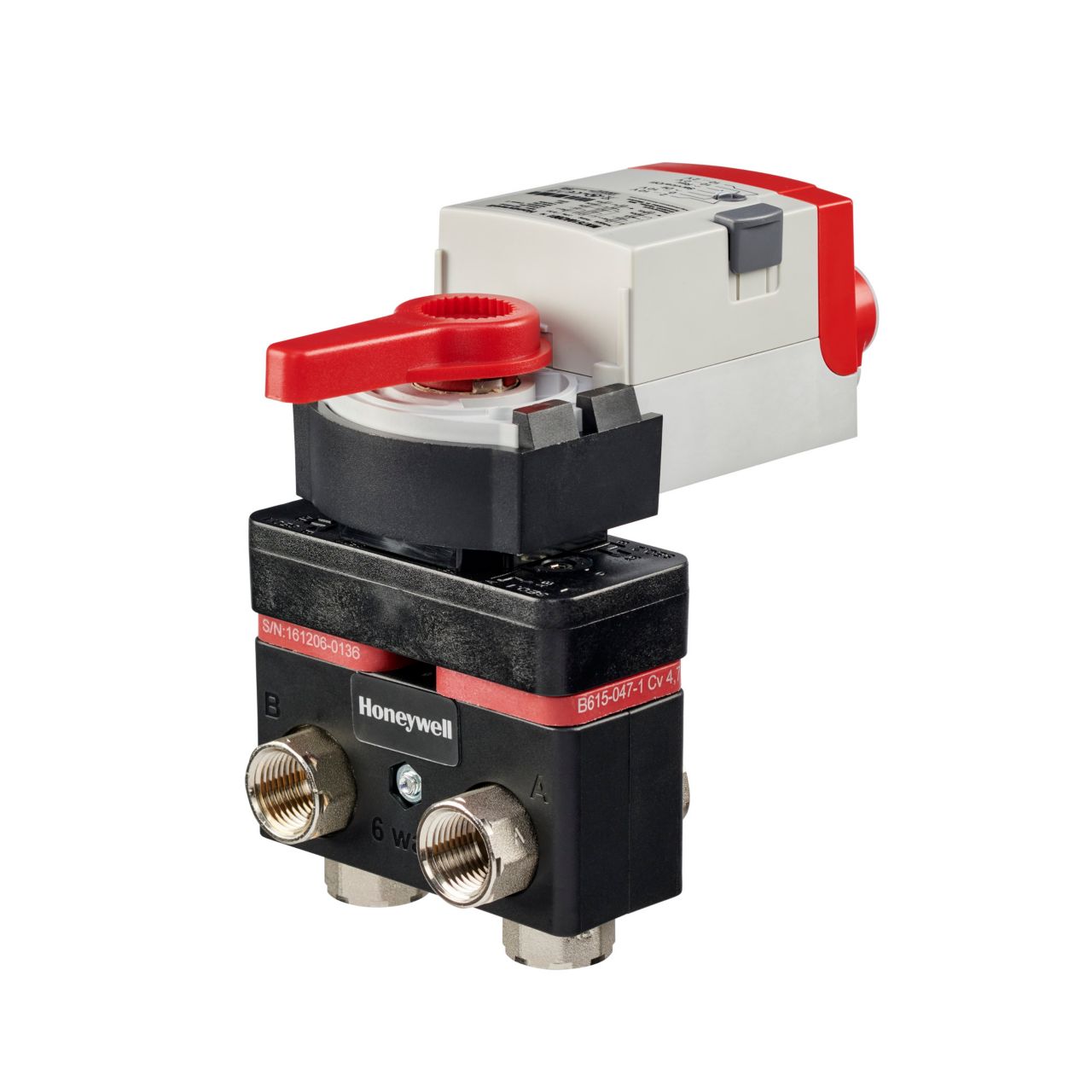

Honeywell VB6A047+005+AL VB6 Series 6-Way Control Valve

Product Description

The Honeywell VB6A047+005+AL is a 6-way control valve used in 4-pipe systems with a 2-pipe heat exchanger. It serves as both a change-over and control valve featuring a modulating actuator. This valve's design allows for simultaneous rotation of two balls connected by a stem, enabling the opening and closing of supply and return ports efficiently. It is effective in regulating chilled or hot water in closed loop systems.

• Compatible with chilled beam units and fan coil units.
• Constructed for use in both heating and cooling applications.
• Features a compact design for easy integration.

Product Highlights

This product is essential for HVAC systems where precise control of water flow is required.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VB6A047+005+AL

Technical Specifications

• Product Category: 6-Way Valves
• Model: VB6VALVE
• Valve Size: 1/2 Inch
• Sequence 1 CV: 4.7
• Sequence 2 CV: 0.46
• Actuator: MN7510A2001 Modulating Actuator
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals, Located Under The Removable Access Cover
• Auxiliary Switches: Two SPDT
