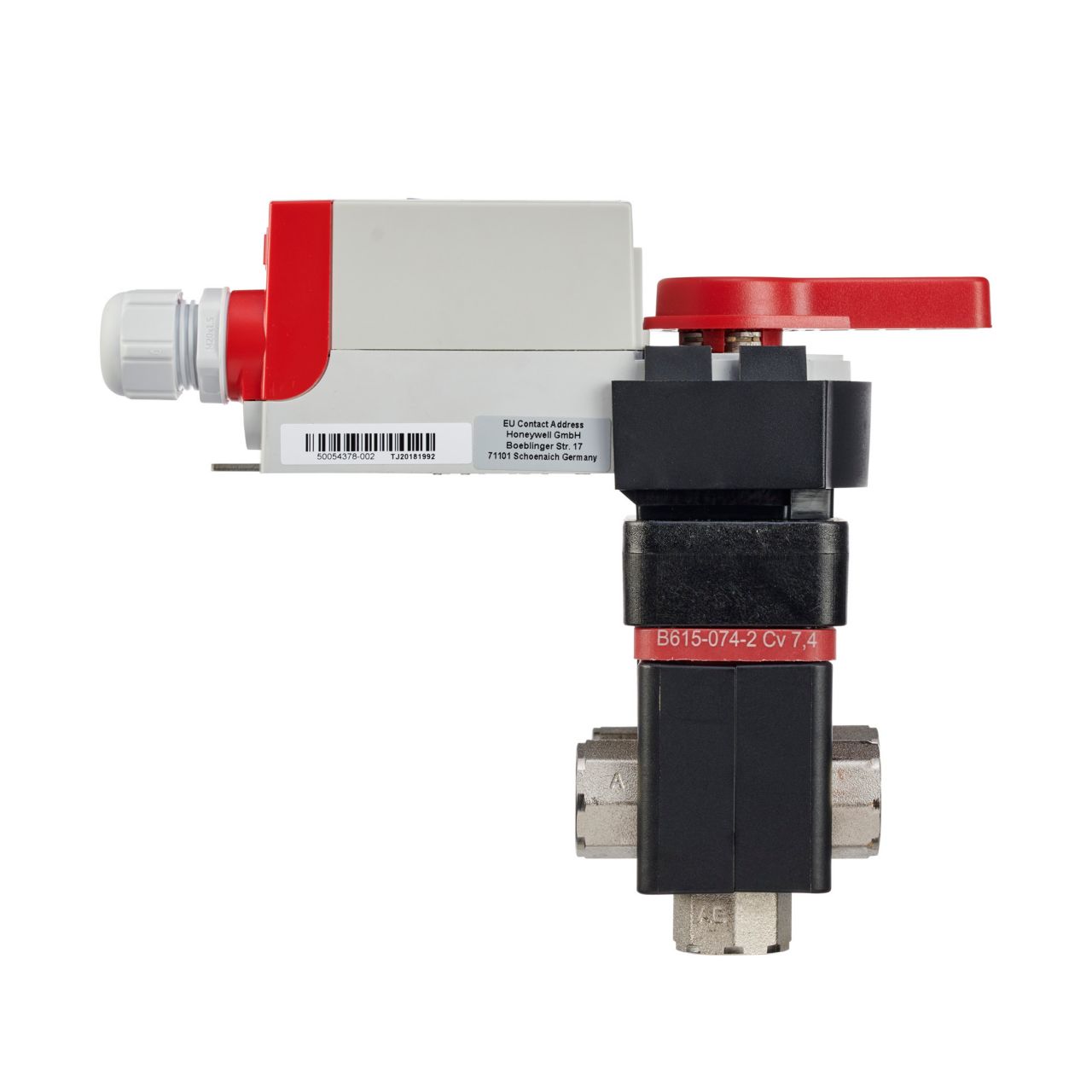

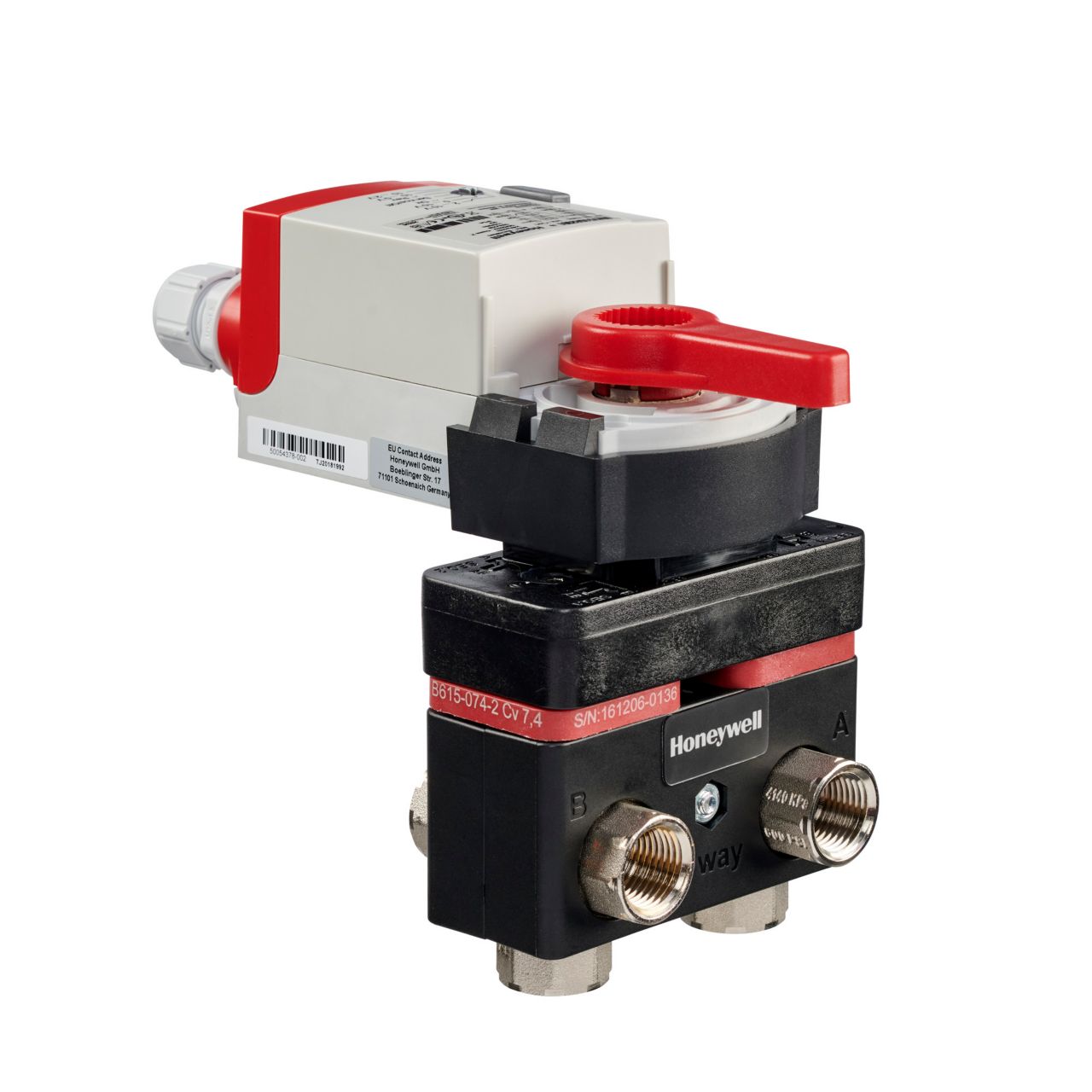

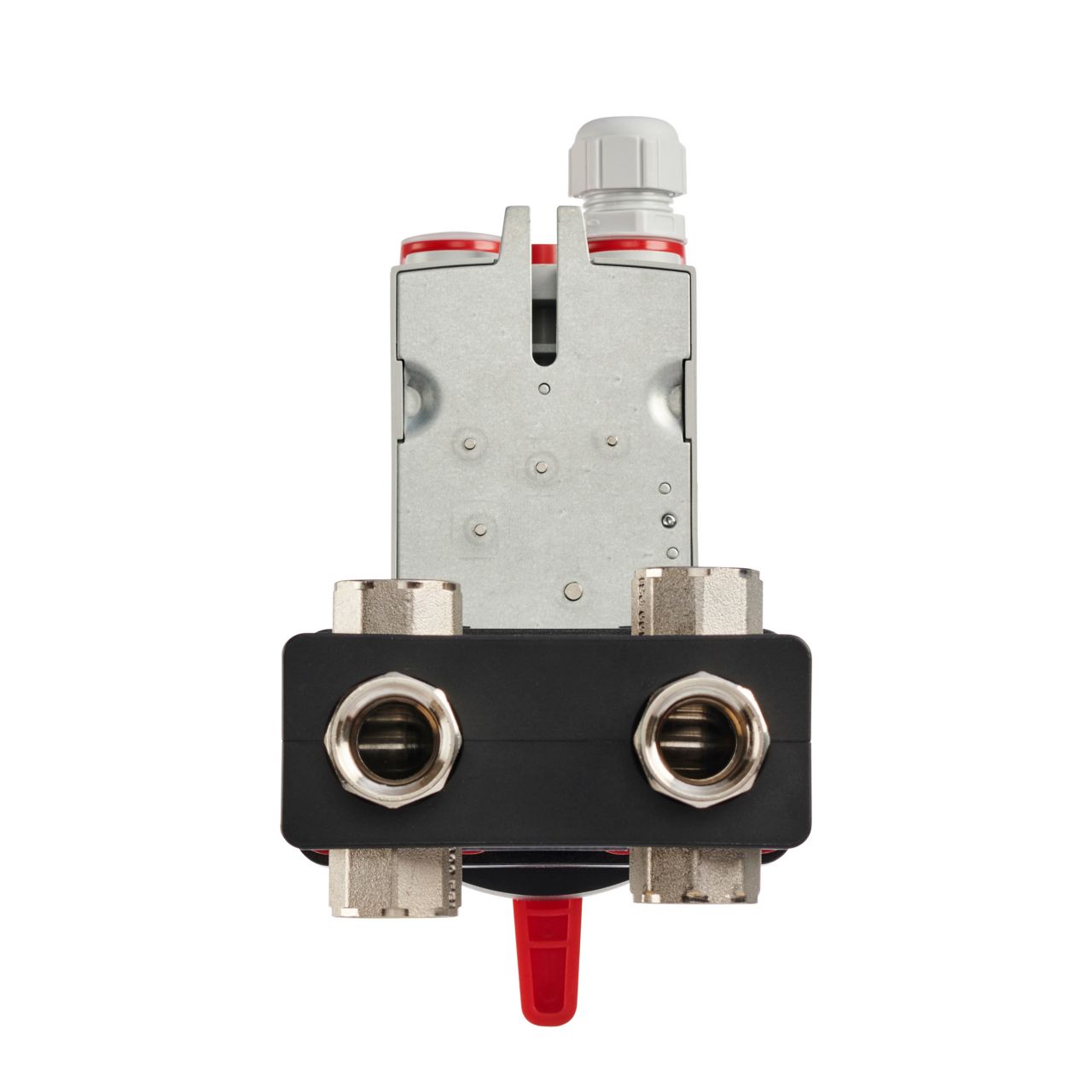

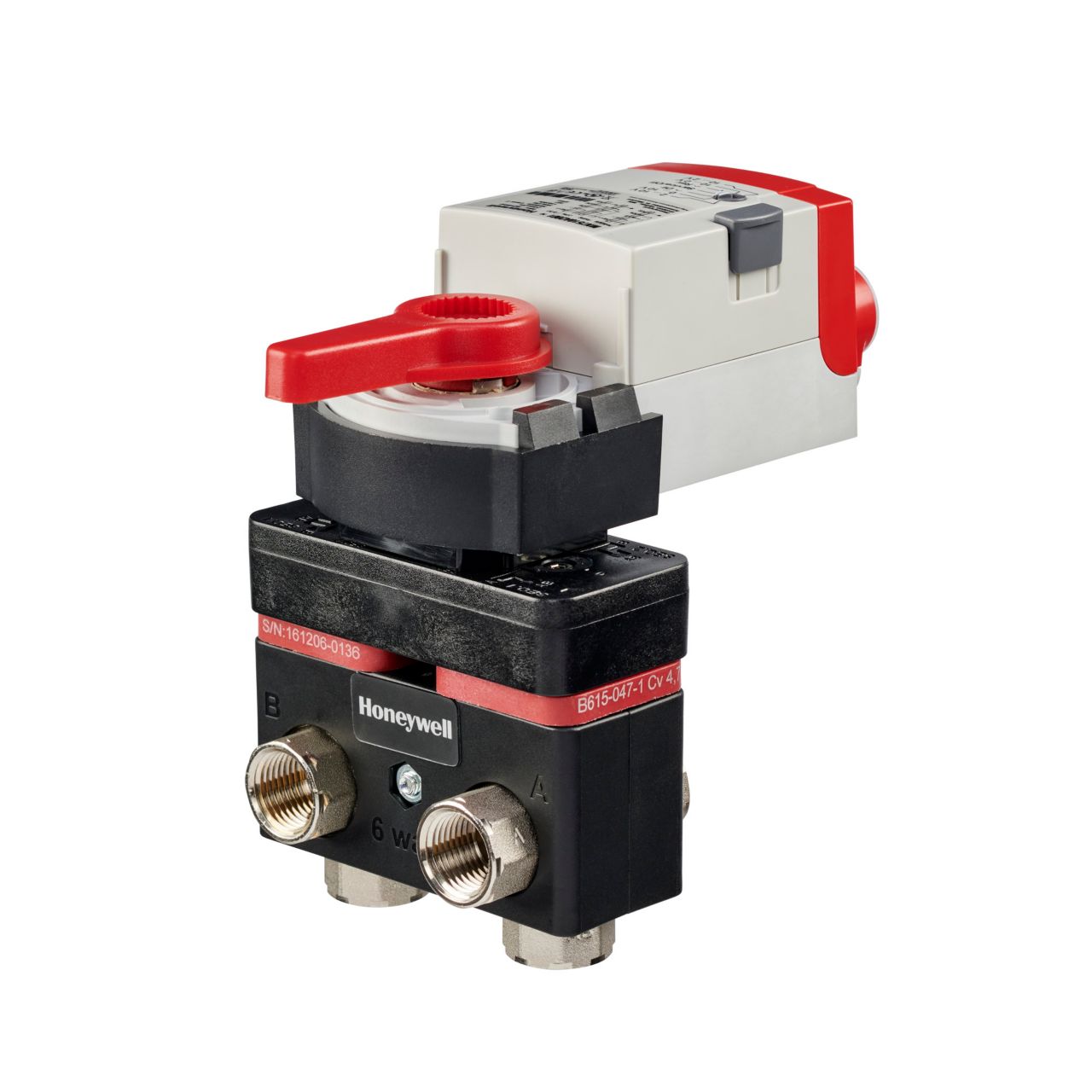

Honeywell VB6A030+019+AL VB6 Series 6-Way Control Ball Valve and Actuator

Product Description

The Honeywell VB6A030+019+AL is a VB6 Series 6-way control ball valve paired with a modulating actuator. This valve assembly is engineered for efficient shut-off and changeover, controlling heating and cooling in four-pipe systems. It features an equal percentage characterized control.

• Constructed from nickel-plated forged brass.
• Stainless steel ball and stem for durability.
• Direct coupled actuator that operates on 24 VAC.

Product Highlights

This valve is designed for fluid service with water and glycol (up to sixty percent). It includes self-cleaning technology to reduce blockage and leakage, making it suitable for applications with a close-off pressure of two hundred psi.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VB6A030+019+AL

Technical Specifications

• Model Code: VB6A030+019+AL
• Type: Valves
• Material: Brass
• Flow Characteristic: Equal Percentage
• Service: Water, Glycol 60%
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter
