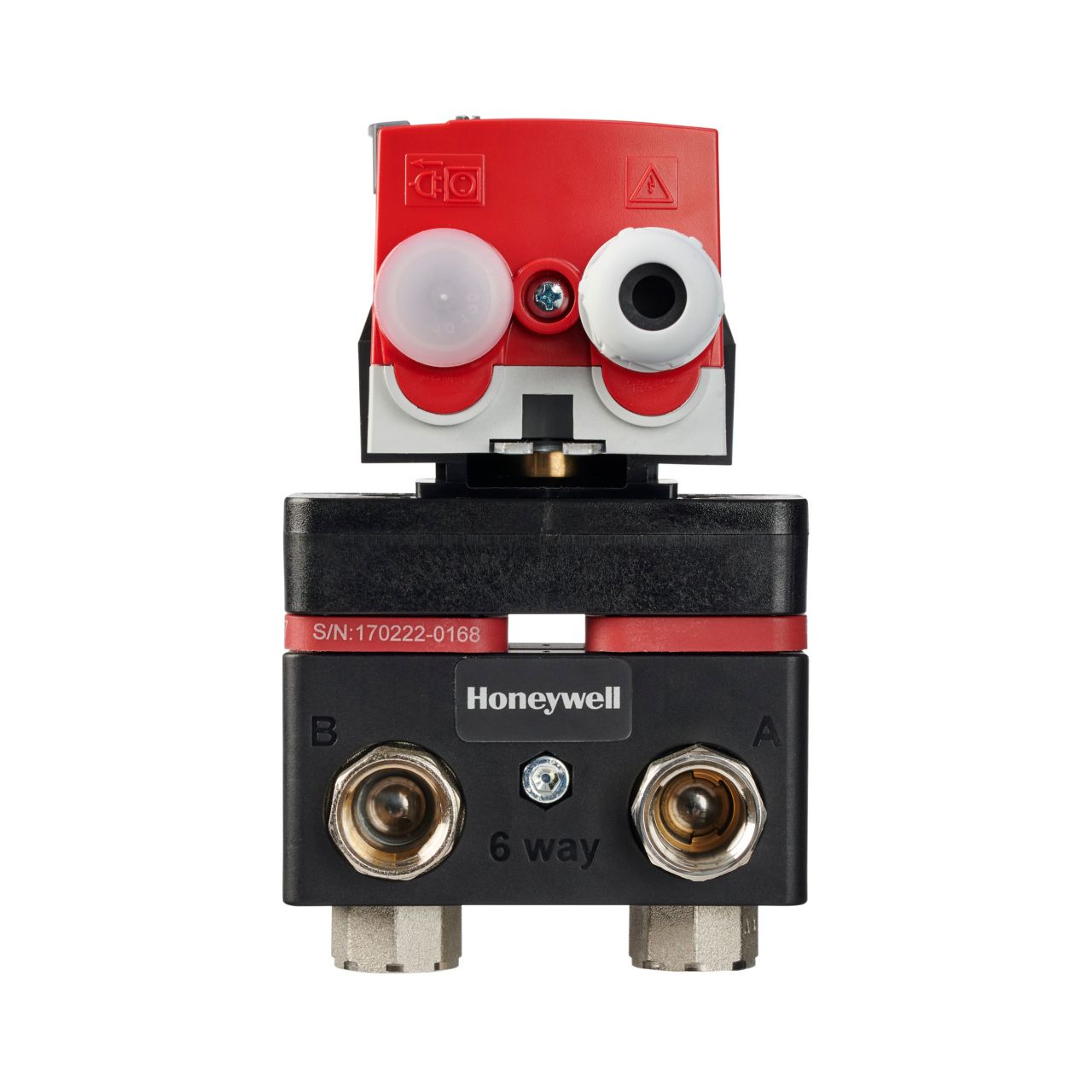

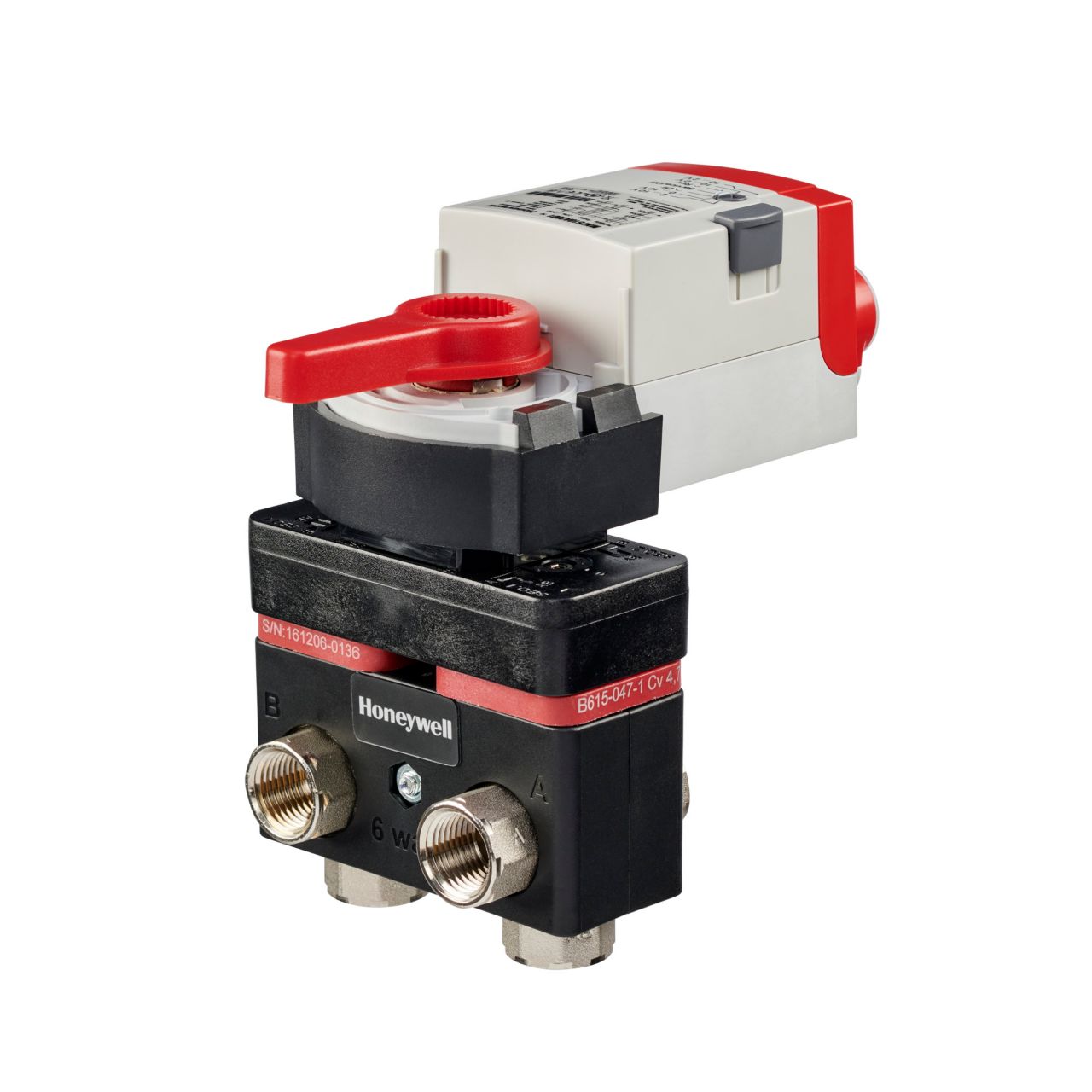

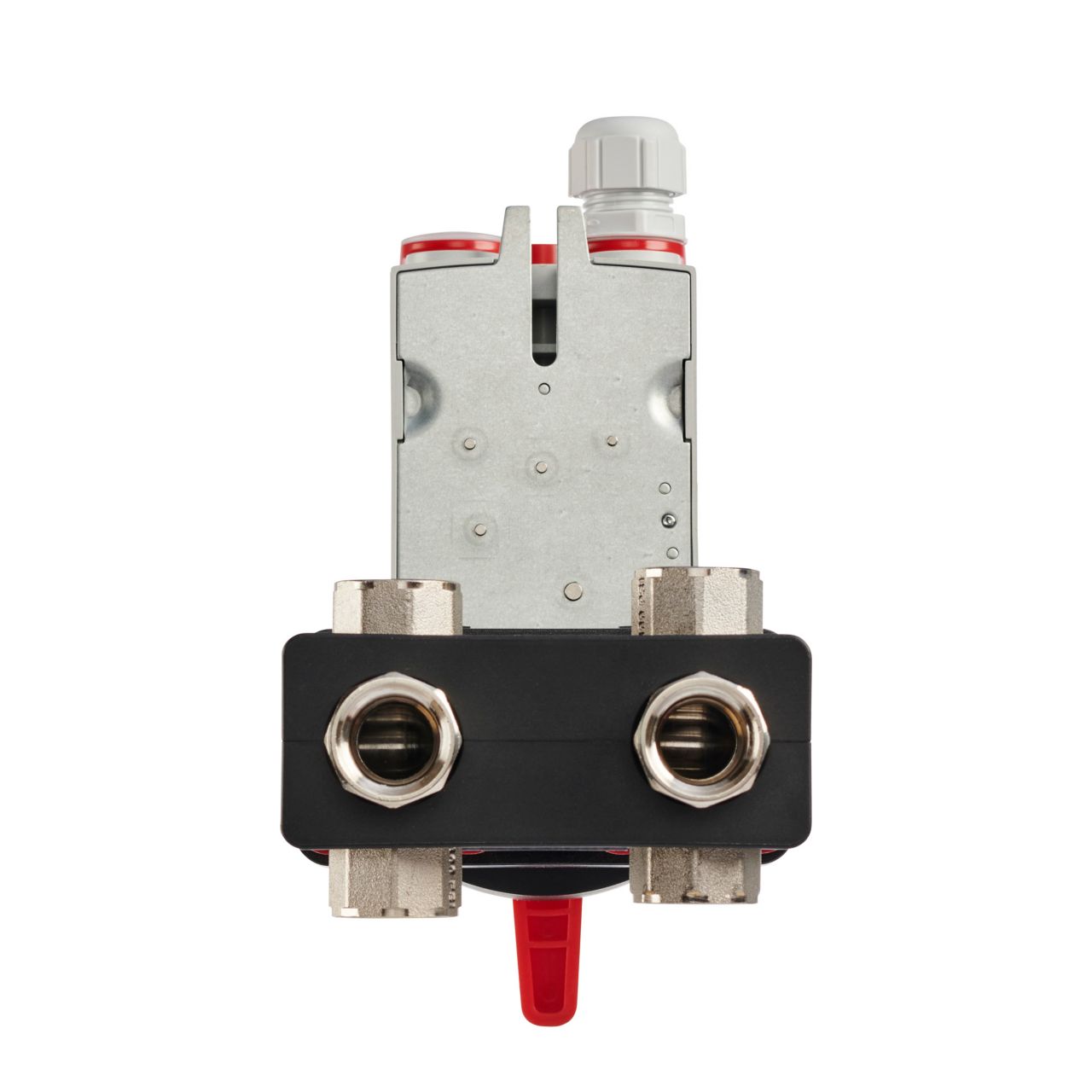

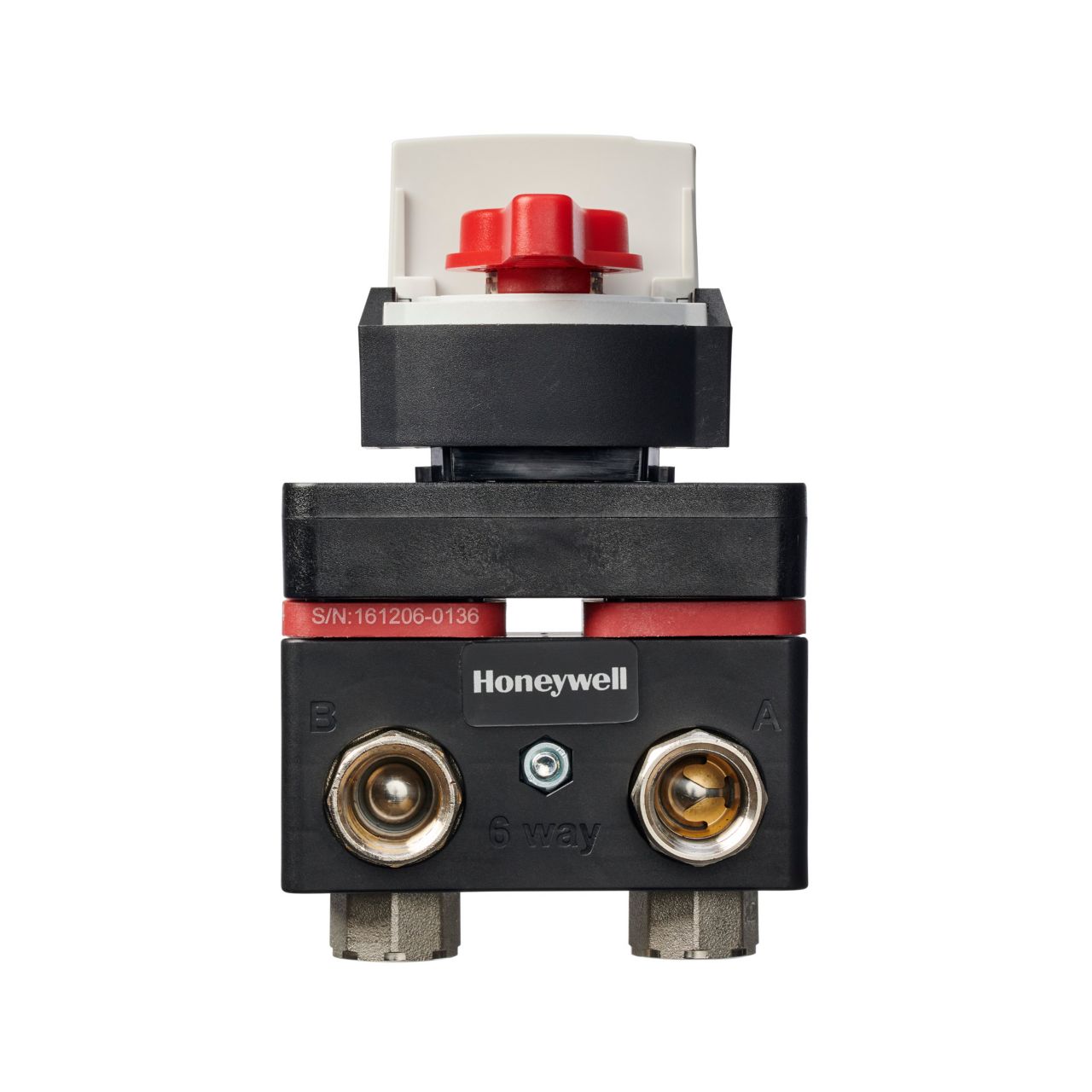

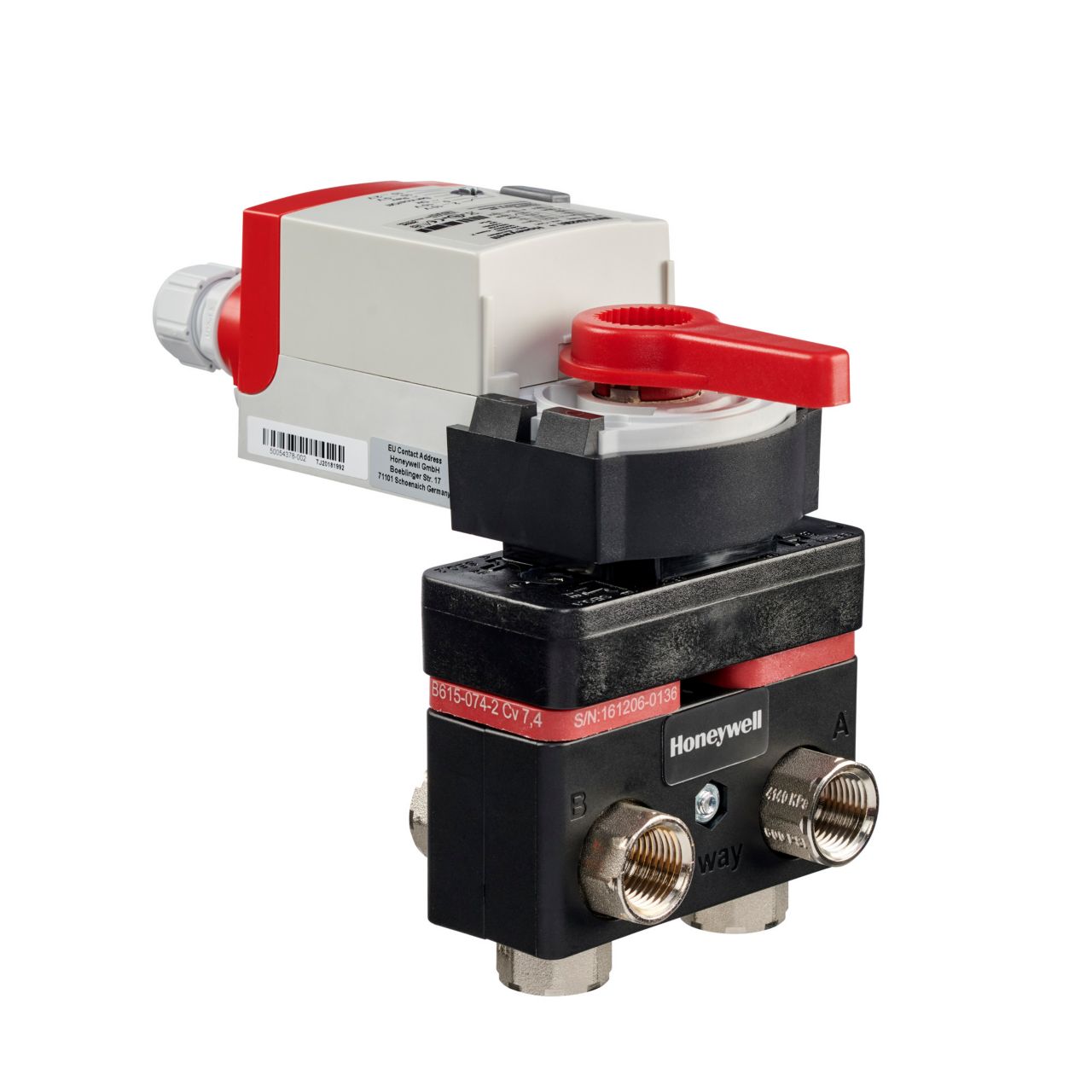

Honeywell VB6A030+005+AL VB6 6-Way Control Valve with Modulating Actuator

Product Description

The Honeywell VB6A030+005+AL is a VB6 6-way ball valve that serves as both a change-over and control valve. It is ideal for use in 4-pipe systems and operates with a single modulating actuator. This valve effectively connects a 2-pipe heat exchanger while managing supply and return ports through the synchronized rotation of two mechanically linked balls. It is suitable for applications including chilled beam units, fan coil units, and small air handling coils for regulating chilled or hot water in closed-loop systems.

• Supports applications in 4-pipe systems.
• Features self-cleaning technology to reduce blockage and leakage.
• Connects 2-pipe heat exchangers for effective water management.

Product Highlights

This valve is designed for both change-over functionality and precise control.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VB6A030+005+AL
• Item Number: VB6A030+005+AL
• Product Category: 6-Way Valves
• Model: VB6VALVE
• Connection Size: 1/2 inch
• Cv Value (Sequence 1): 3
• Cv Value (Sequence 2): 0.46
