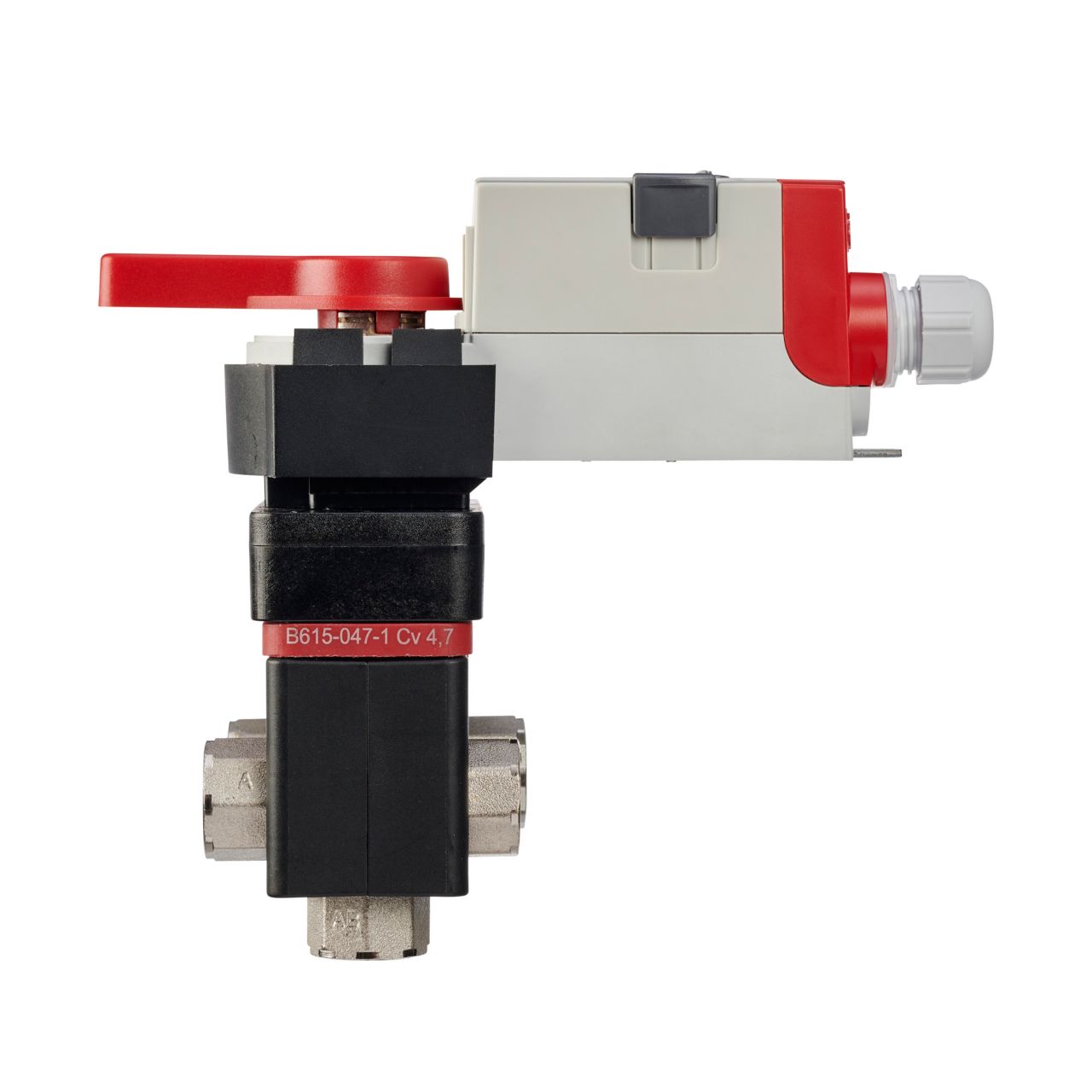

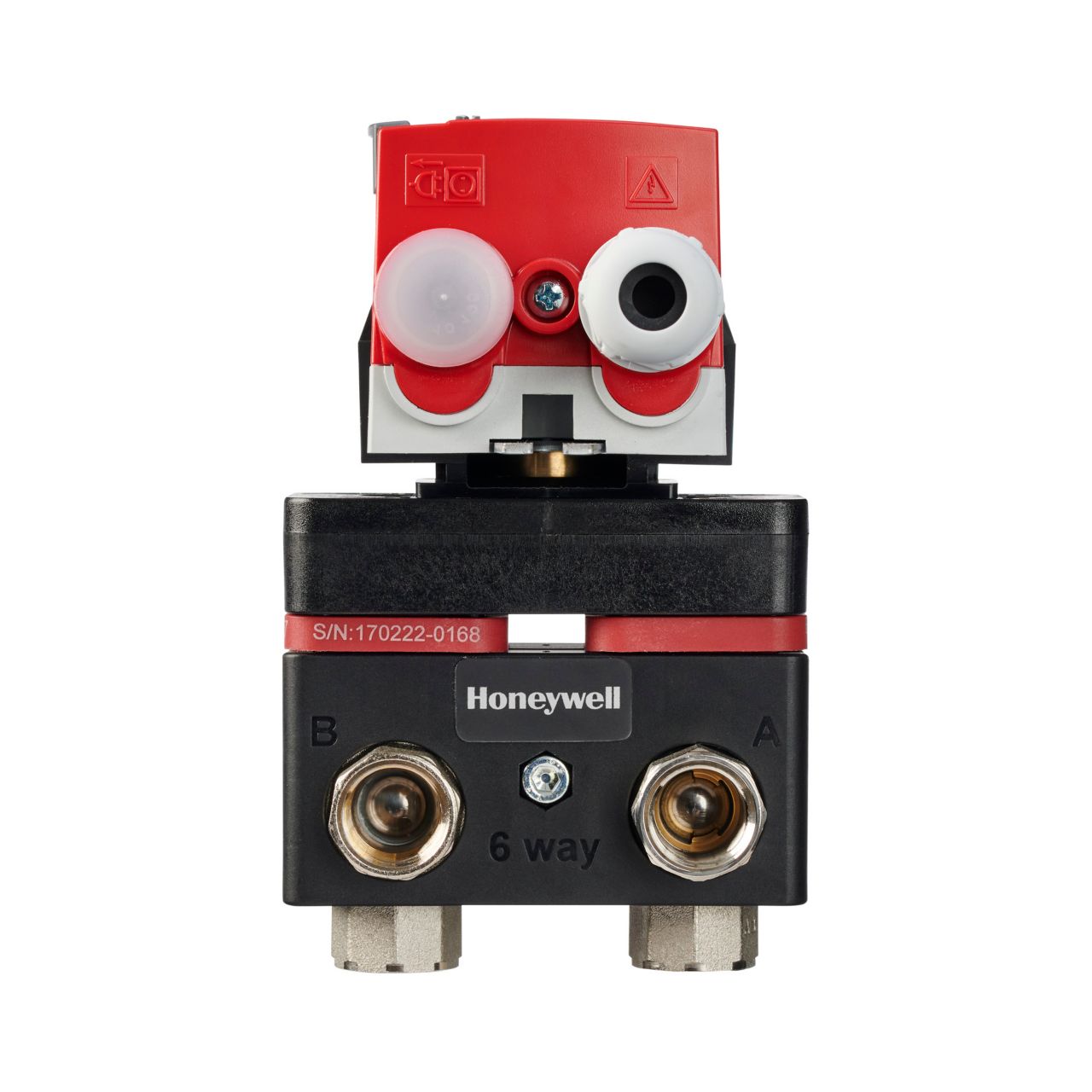

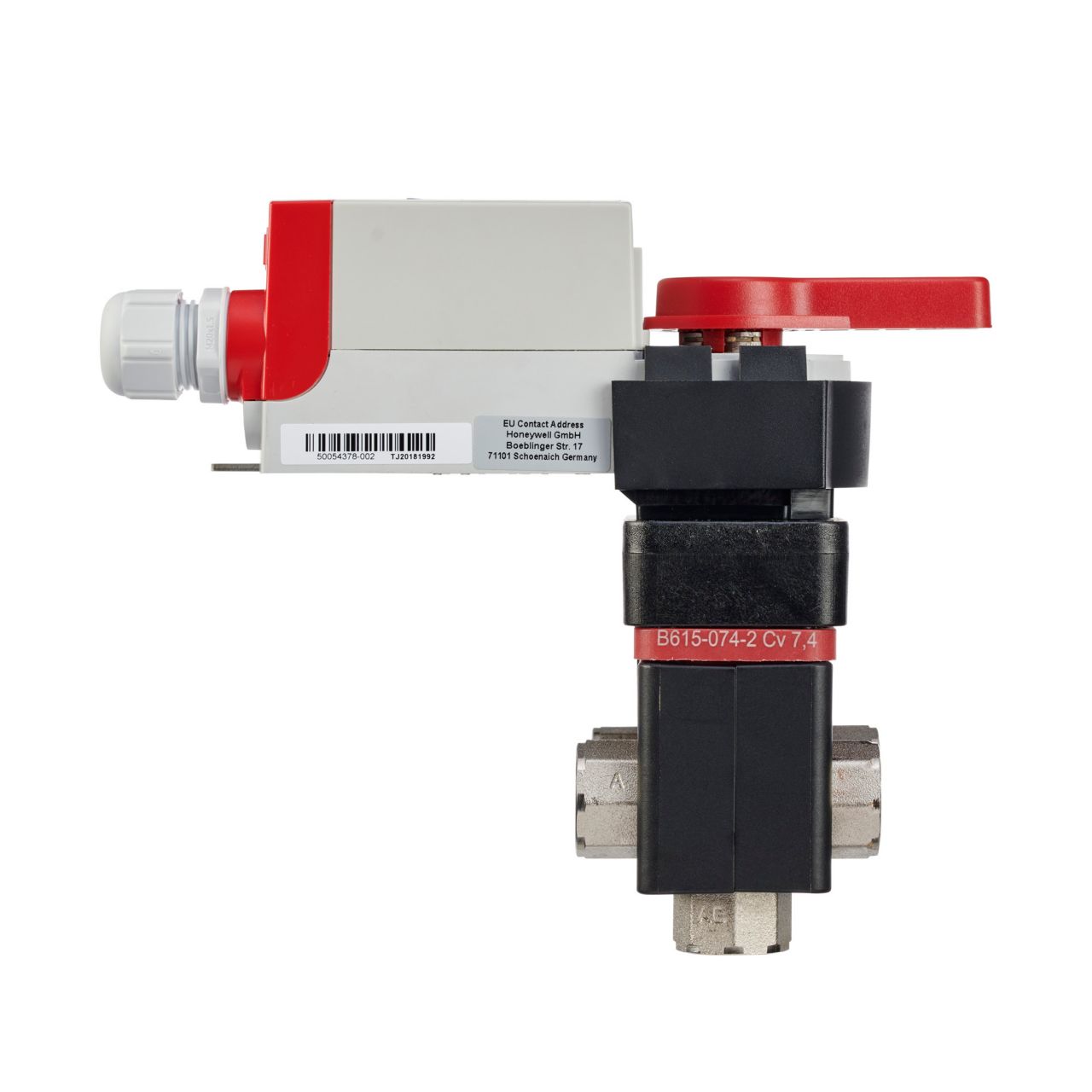

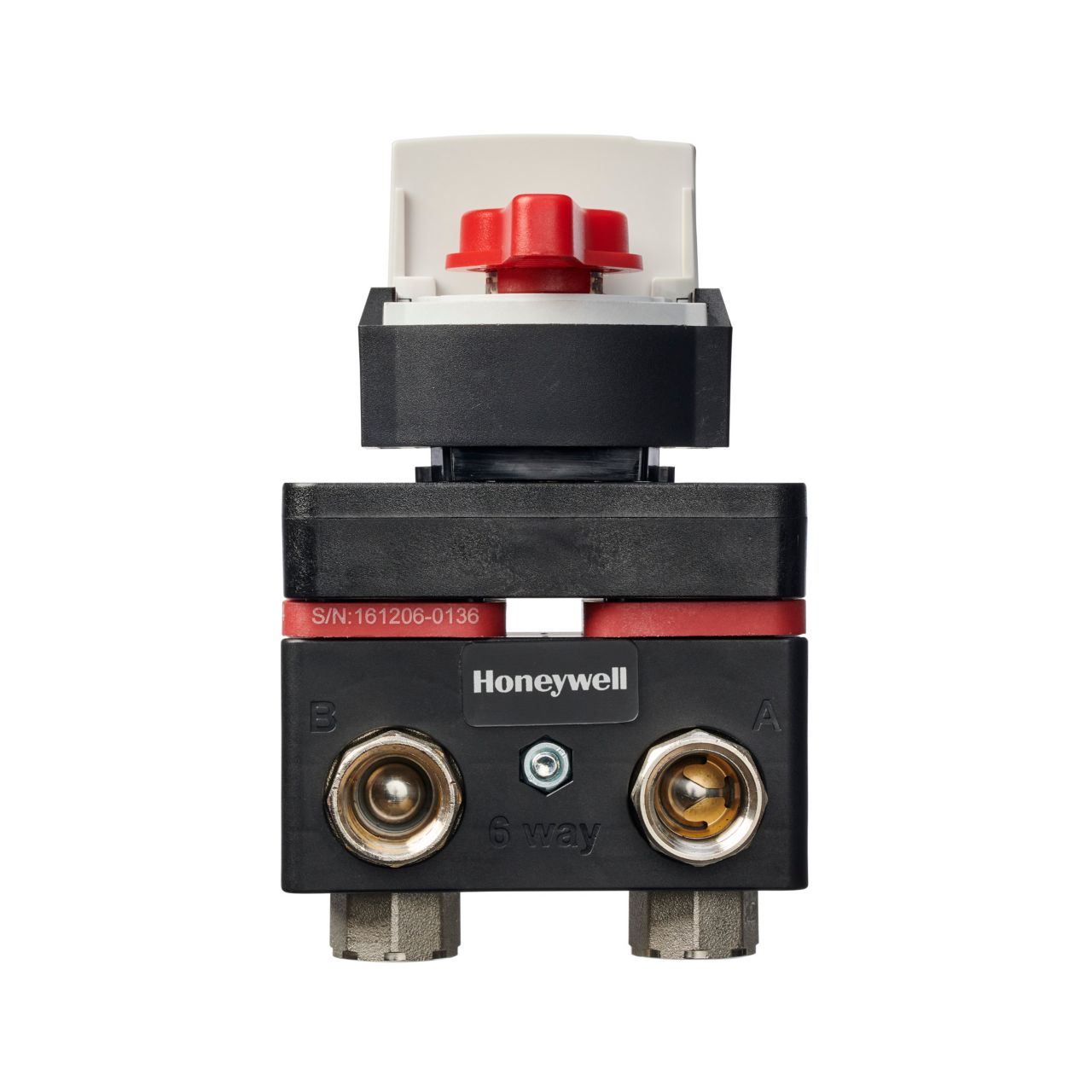

Honeywell VB6A019+047+AL 6-Way Control Valve Assembly

Product Description

The Honeywell VB6A019+047+AL is a 6-way control valve assembly designed for applications where fluid modulation is required. This product features a half inch connection and is built to operate efficiently in closed loop systems with hot or chilled water.

• Constructed from nickel-plated forged brass.
• Includes stainless steel ball and stem for added durability.
• Compatible with water and glycol solutions (up to sixty percent).

Product Highlights

The valve's direct coupled modulating actuator ensures precise control. Ideal for systems needing robust performance under various operating conditions.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VB6A019+047+AL

Technical Specifications

• Model: VB6VALVE
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals, Located Under The Removable Access Cover
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter (Shaft Coupling)
• Weight: 1.5 lbs
