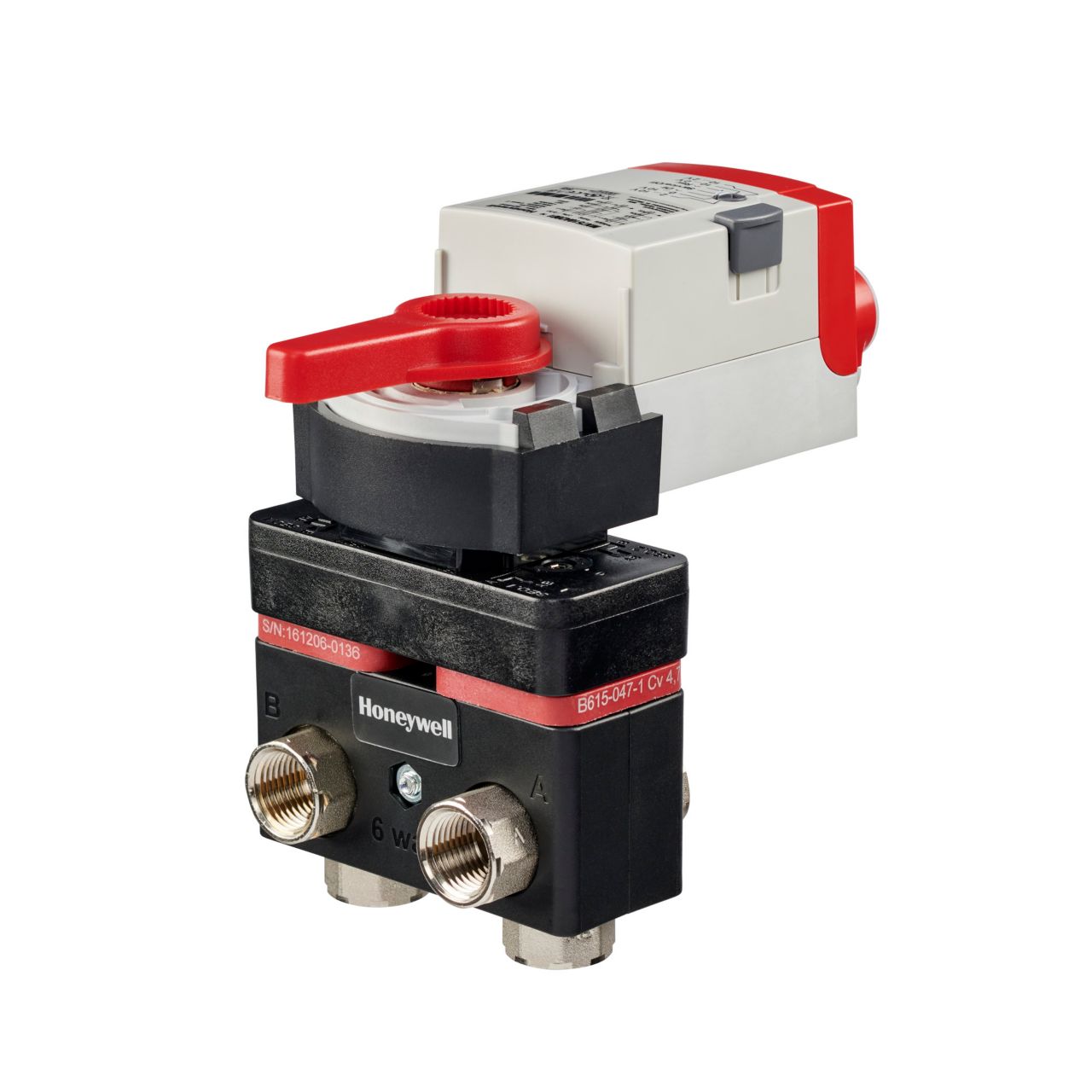

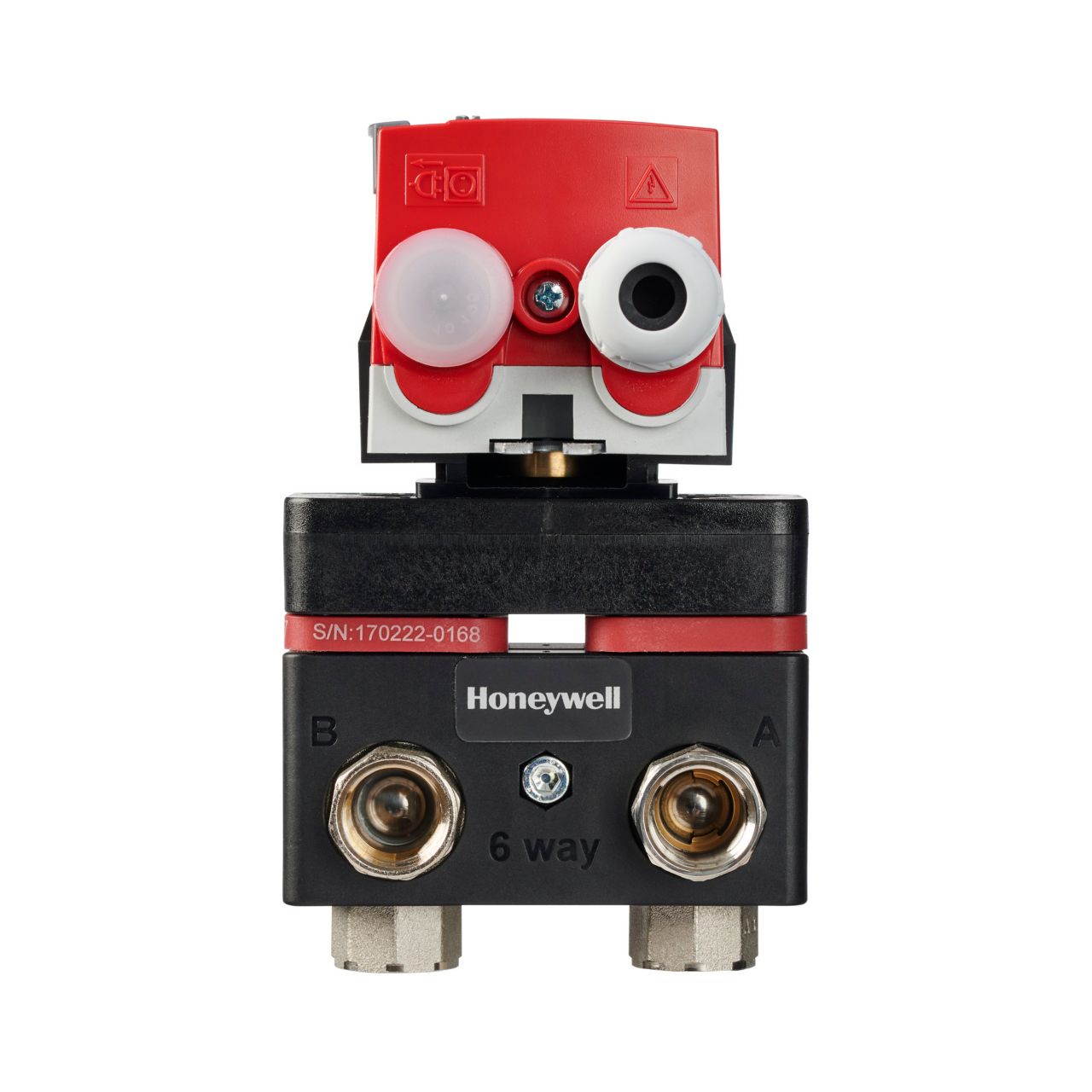

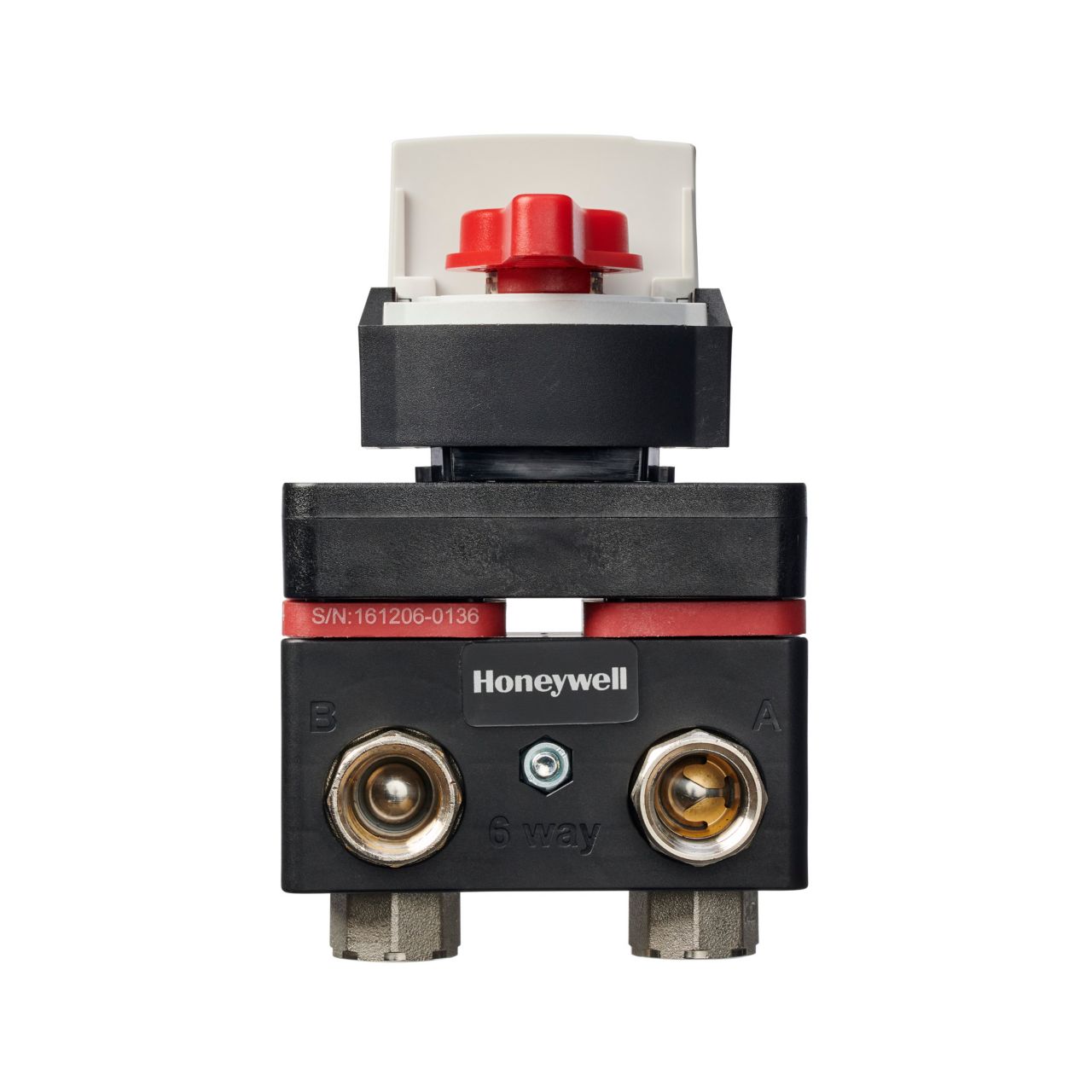

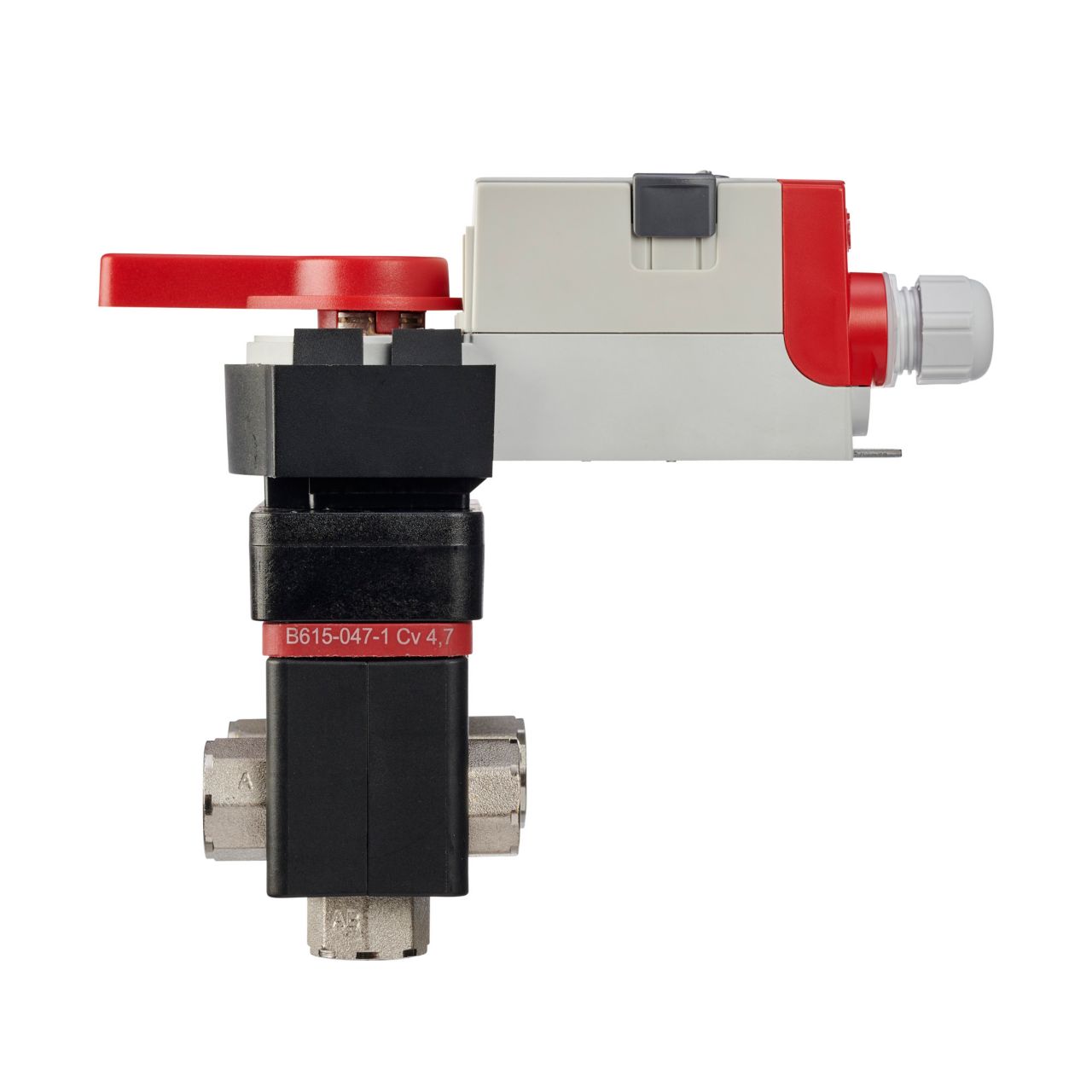

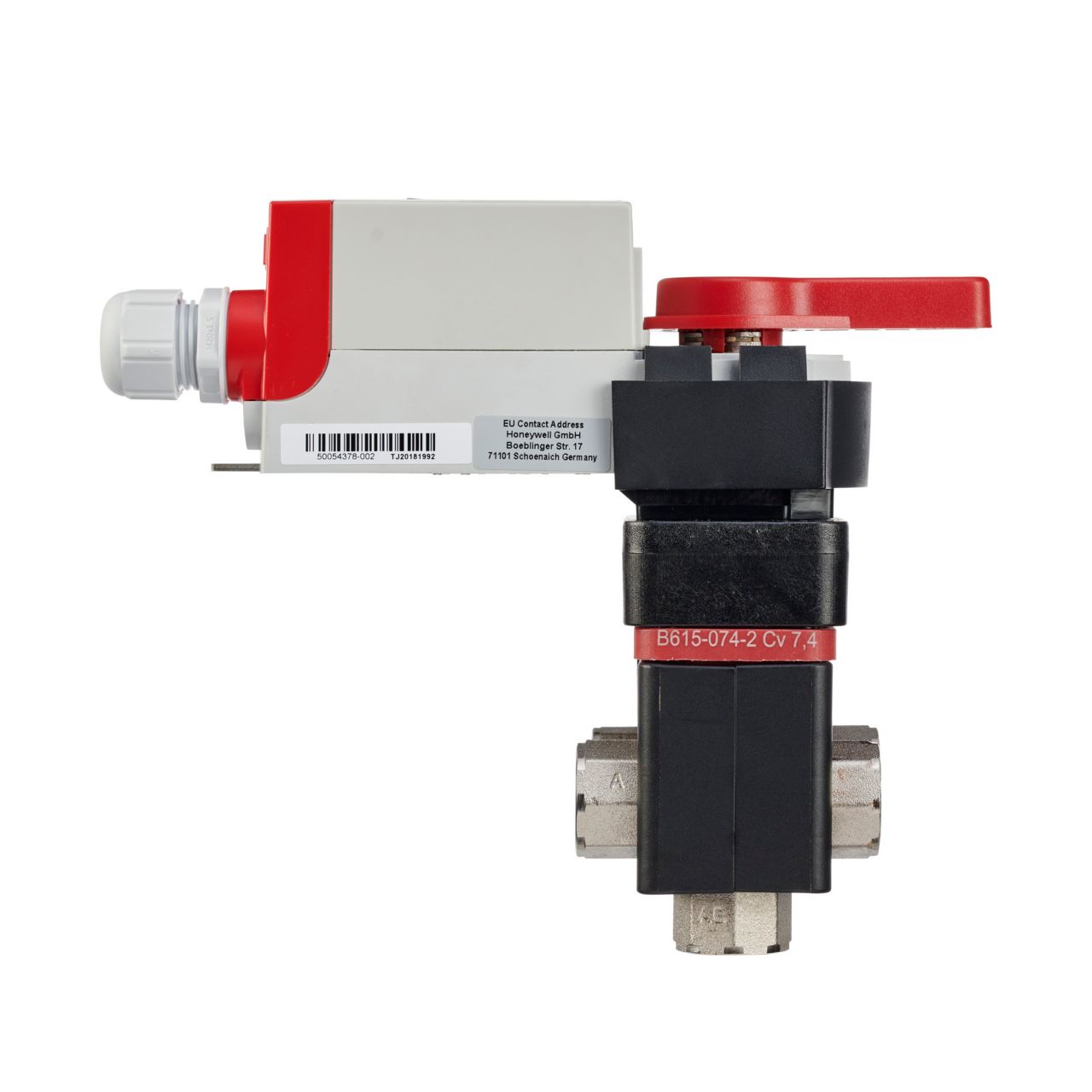

HONEYWELL VB6A019+030+AL VB6 6-Way Control Valve

Product Description

The Honeywell VB6A019+030+AL is a VB6 series 6-way control valve designed for four-pipe systems. It combines change-over and control functions using a single modulating actuator. This valve has two connected balls that rotate together to control supply and return ports efficiently. Its compact size of half an inch makes it suitable for various applications.

• Functions as a change-over and control valve.
• Designed to connect a single 2-pipe heat exchanger with 4-pipe systems.
• Features stainless steel trim with robust stainless steel balls and stems.

Product Highlights

This valve is ideal for managing multiple fluid paths in HVAC systems effectively and ensures reliable performance in standard heating and cooling applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VB6A019+030+AL
• Product Category: 6-Way Valves
• Weight: 1.5 lbs
• Model: VB6VALVE
• Sequence 1 Cv: 1.9
• Sequence 2 Cv: 3
• Unit of Measurement: EA
• Production Status: Active
