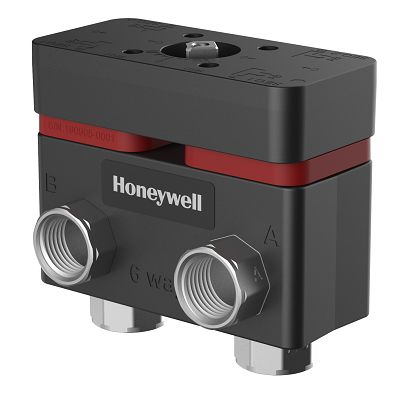

HONEYWELL VB6A019+019+AL 6-Way Control Valve Assembly

Product Description

The Honeywell VB6A019+019+AL is a 6-way control valve assembly designed for efficient flow regulation. This product features a half-inch NPT connection and comprises a nickel-plated forged brass body along with a stainless steel ball and stem.

• Designed for water and glycol service, handling up to sixty percent glycol.
• Includes two SPDT auxiliary switches for added functionality.
• Operates in a temperature range from negative five degrees Fahrenheit to one hundred forty degrees Fahrenheit.

Product Highlights

The valve's equal percentage flow characteristics make it ideal for precise flow control in various applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VB6A019+019+AL

Technical Specifications

• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Temperature: -5 F to 140 F (-20 C to 60 C)
• Operating Conditions: 0 F to 212 F (-18 C to 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Electrical Connections: Field Wiring 14-22 AWG to Screw Terminals
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter (Shaft Coupling)
