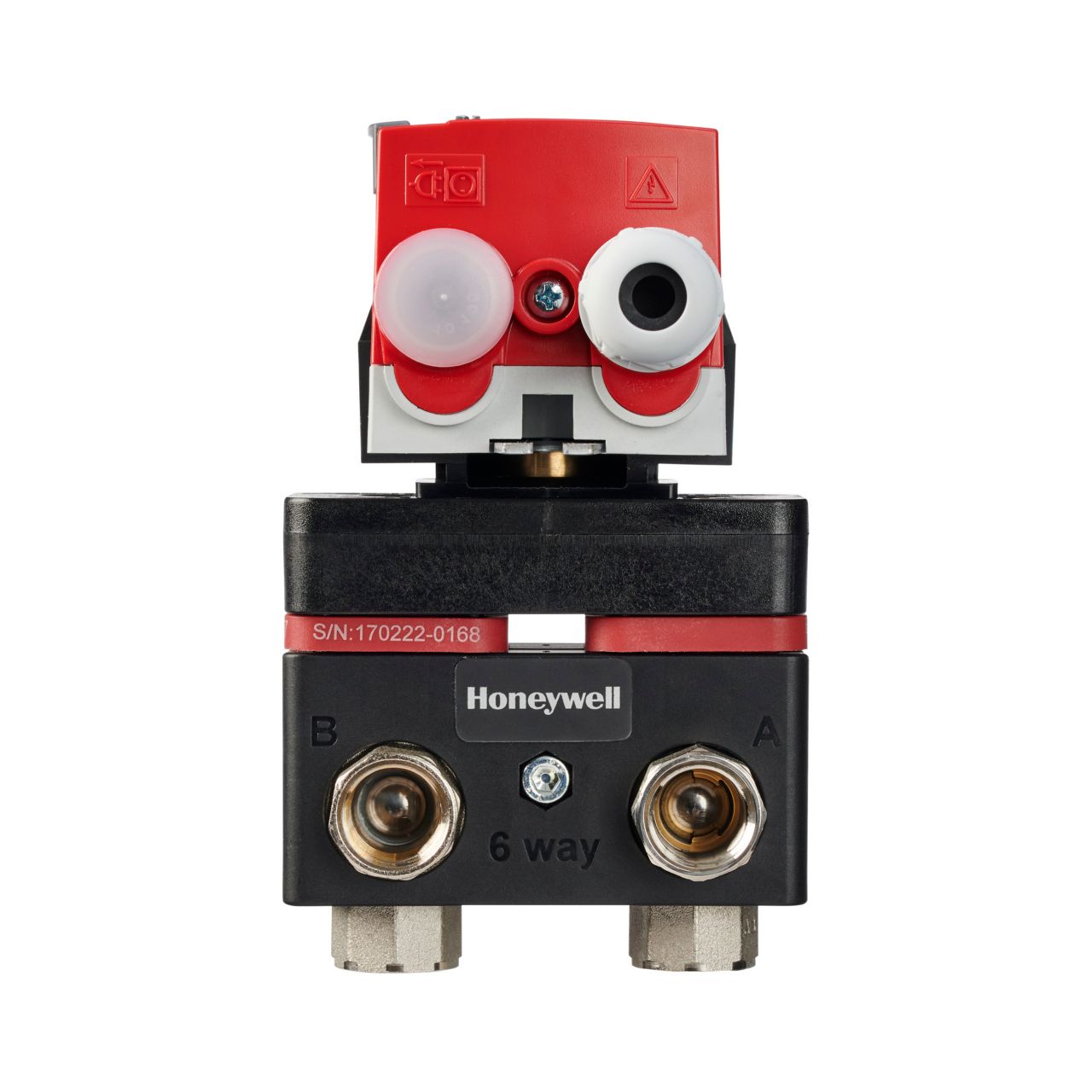

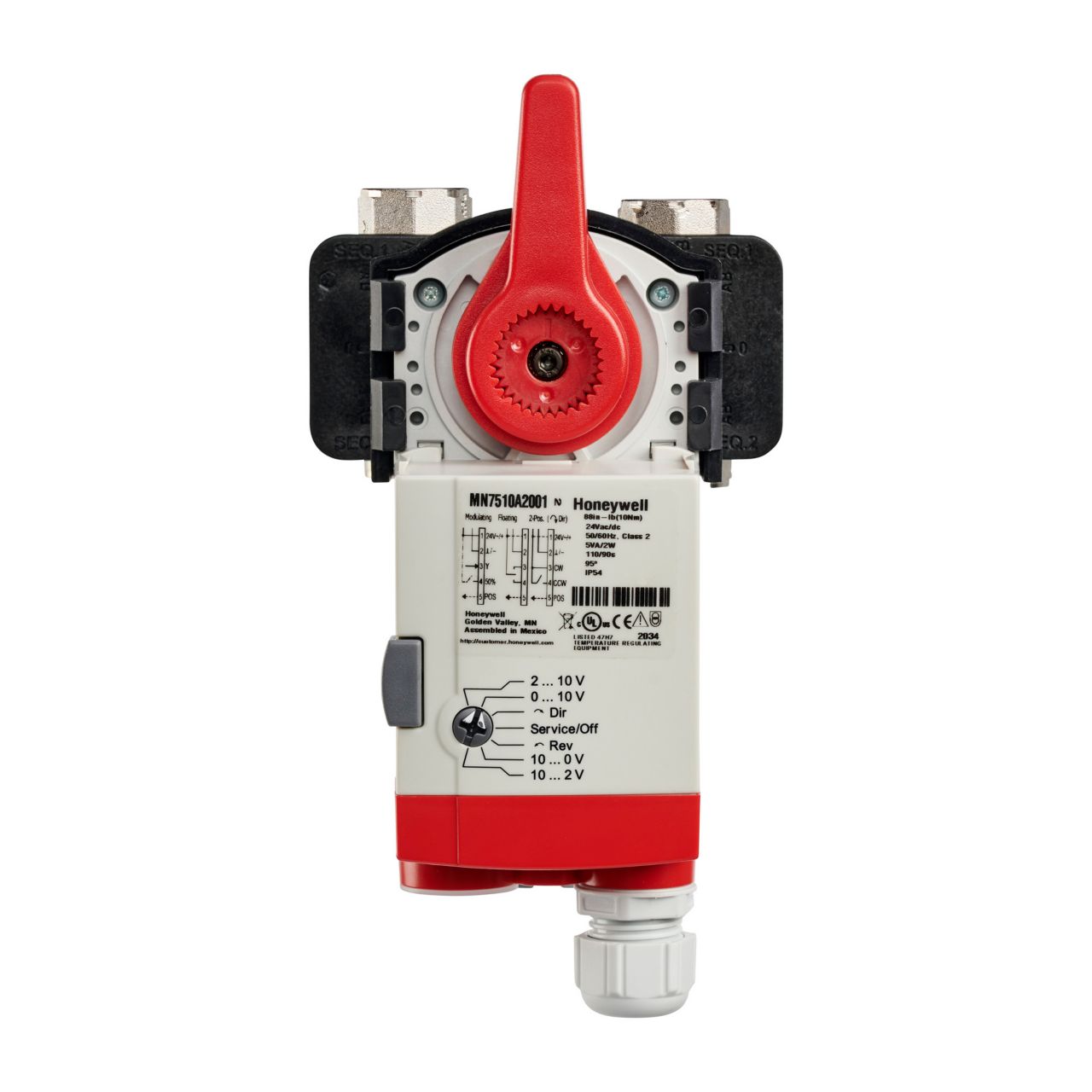

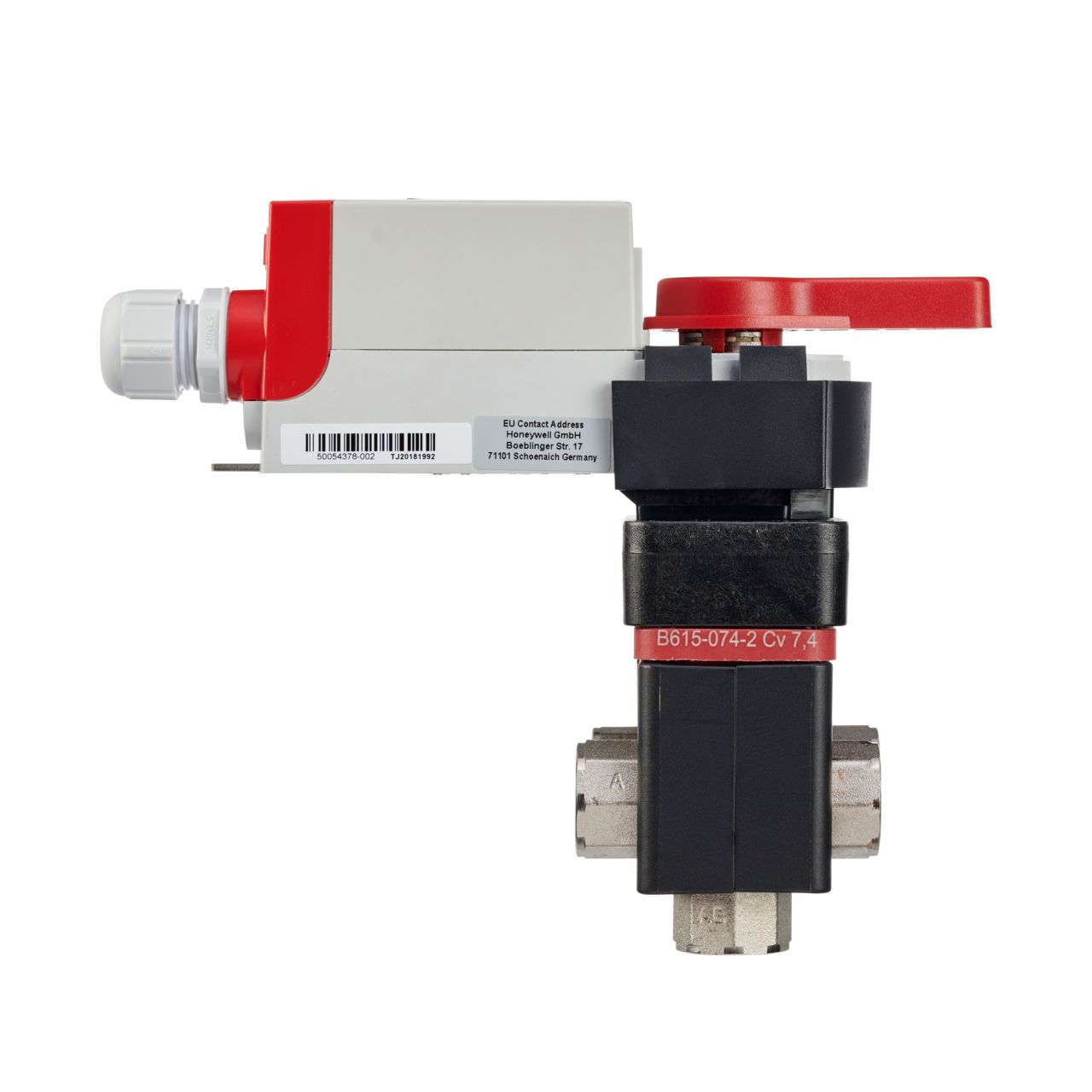

Honeywell VB6A019+012+AL VB6 6-Way Control Valve

Product Description

The Honeywell VB6A019+012+AL is a 6-way control valve built for HVAC applications. This valve combines the functions of both change-over and control valves using one modulating actuator. It connects a 2-pipe heat exchanger to 4-pipe systems, managing chilled or hot water in closed-loop setups.

• Valve Size: 1/2 inch
• Sequence 1 Cv: 1.9
• Sequence 2 Cv: 1.2

Product Highlights

The valve operates with simultaneous rotation of two mechanically connected balls, allowing one control sequence to open supply and return ports while keeping a second sequence closed.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• MPN: VB6A019+012+AL
• Product Category: 6-Way Valves
• Model: VB6VALVE
• Weight: 1.5 lbs
• Unit of Measurement: EA (Each)
• Production Status: Active
