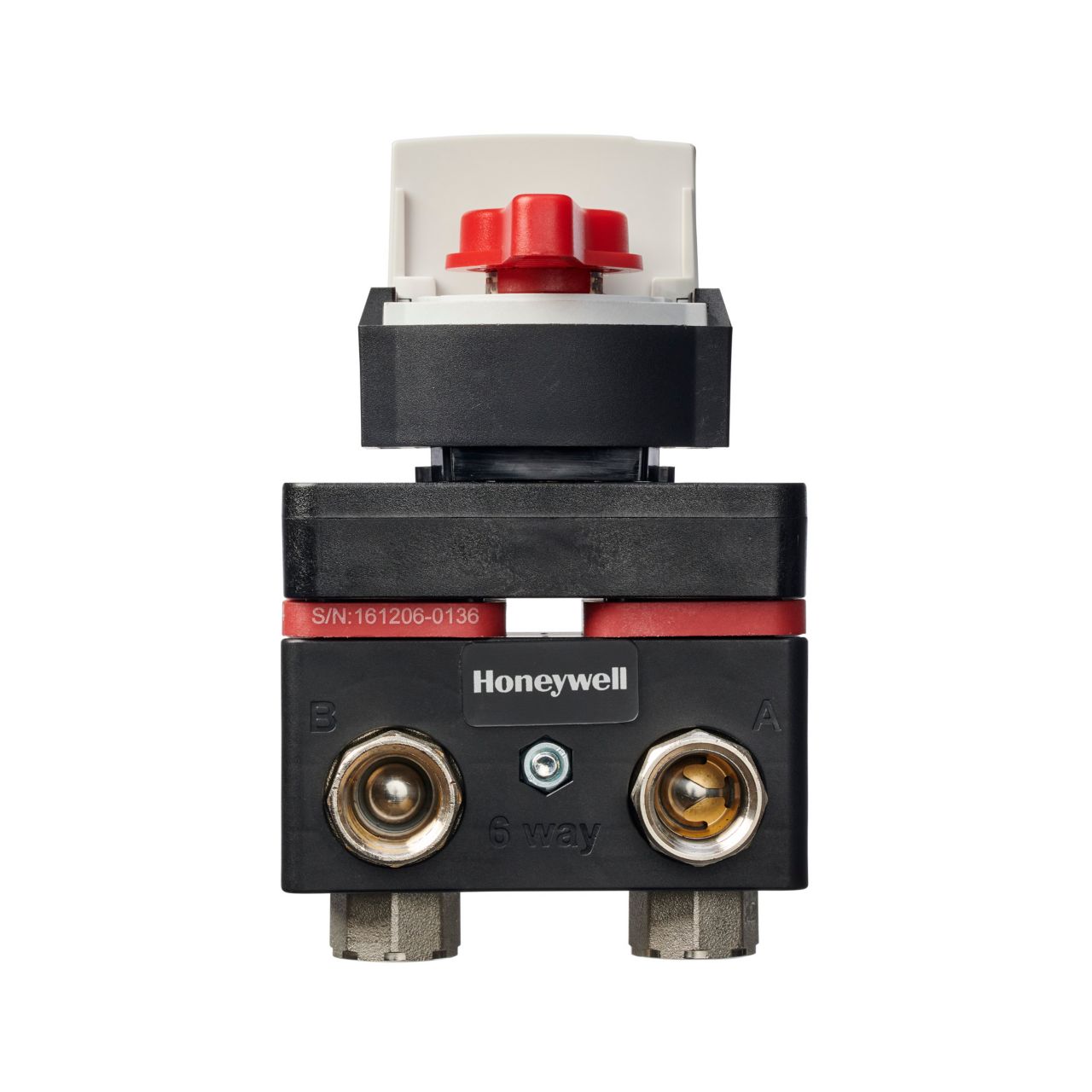

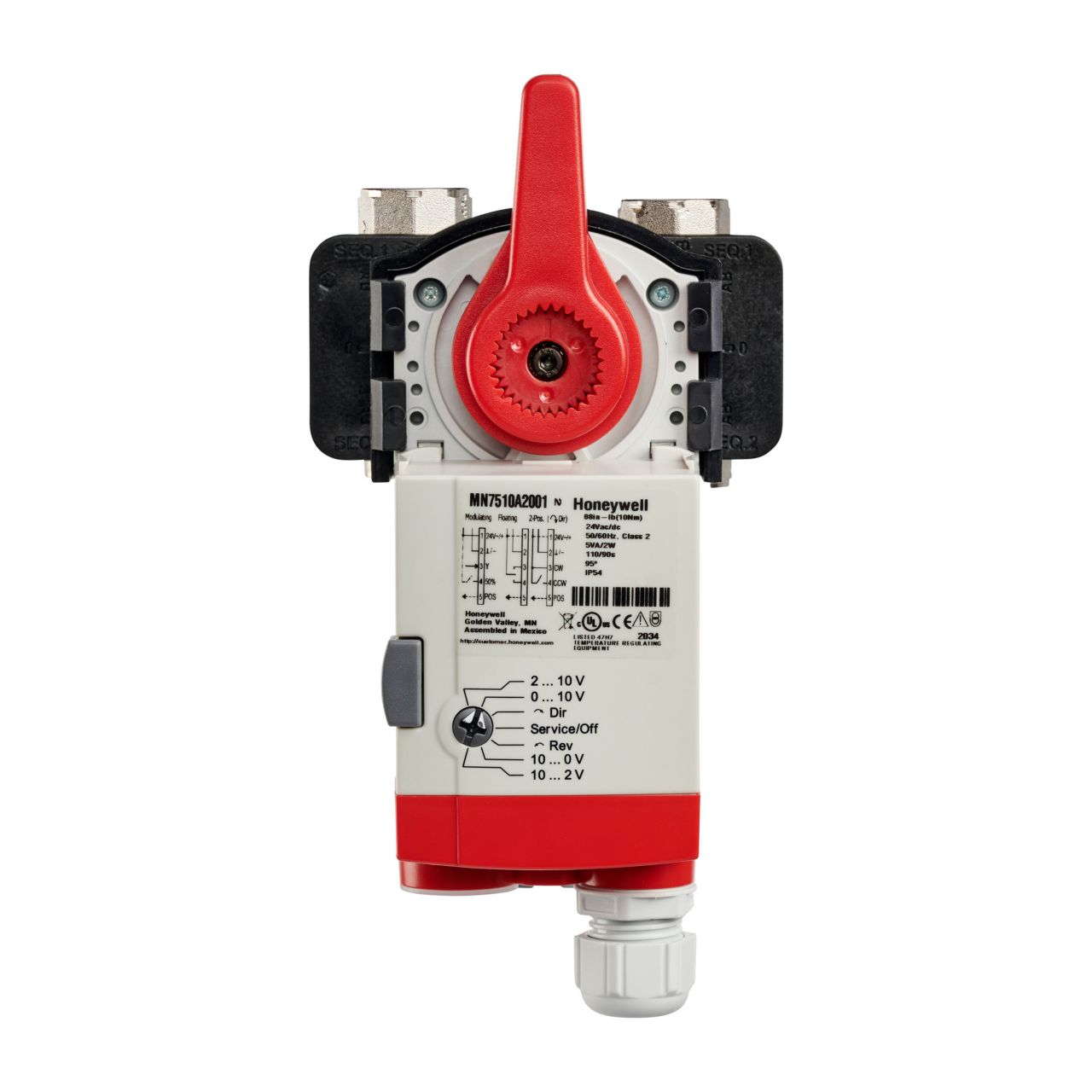

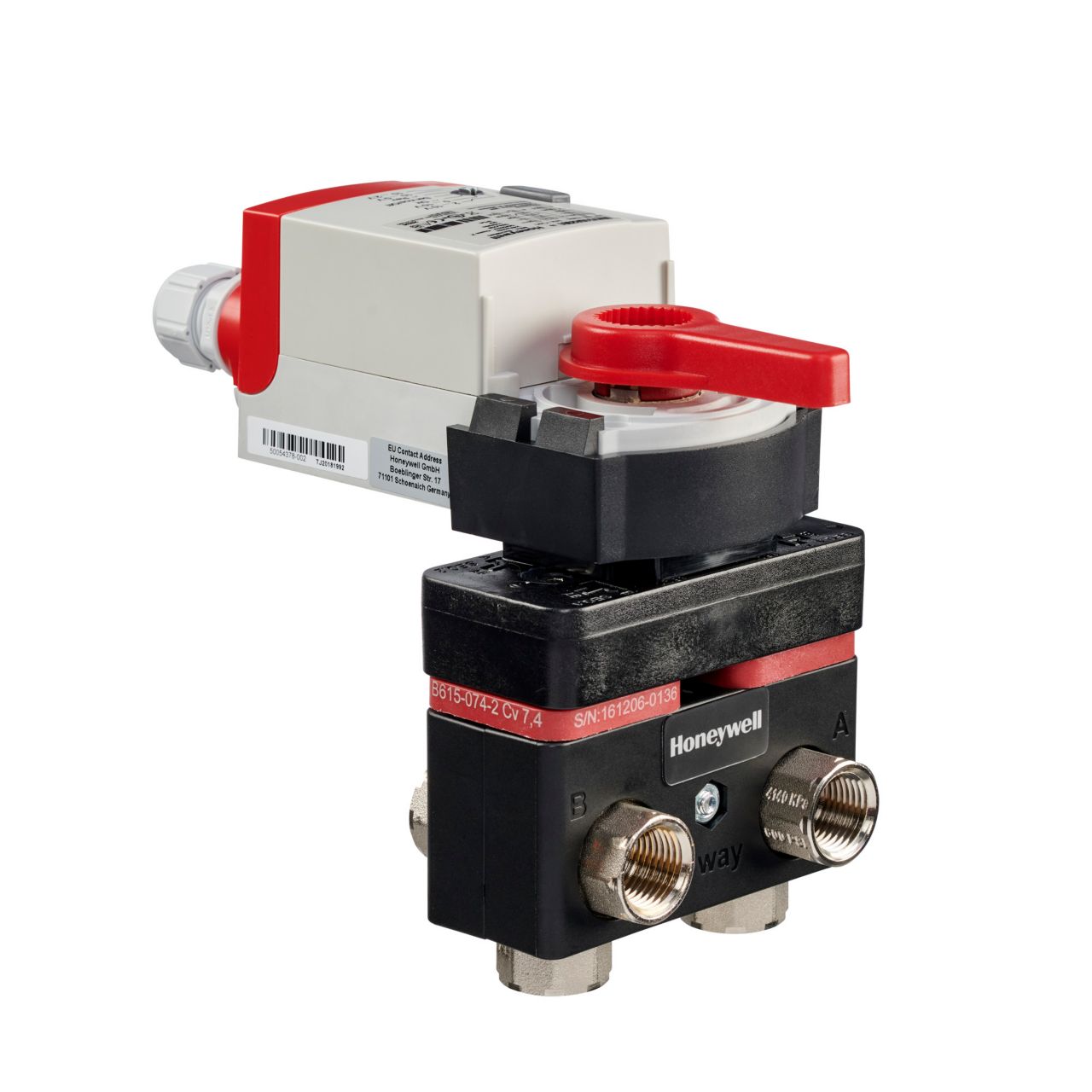

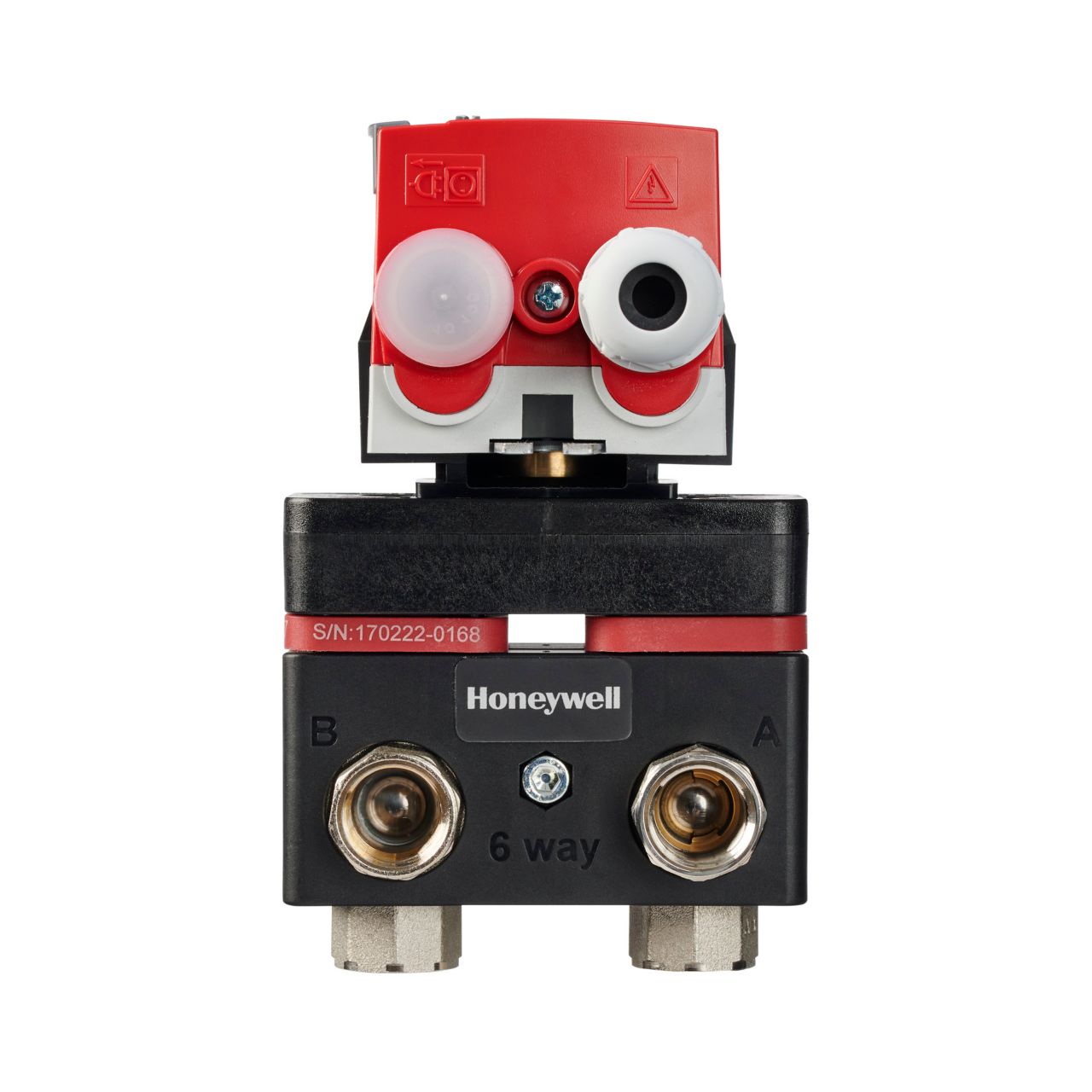

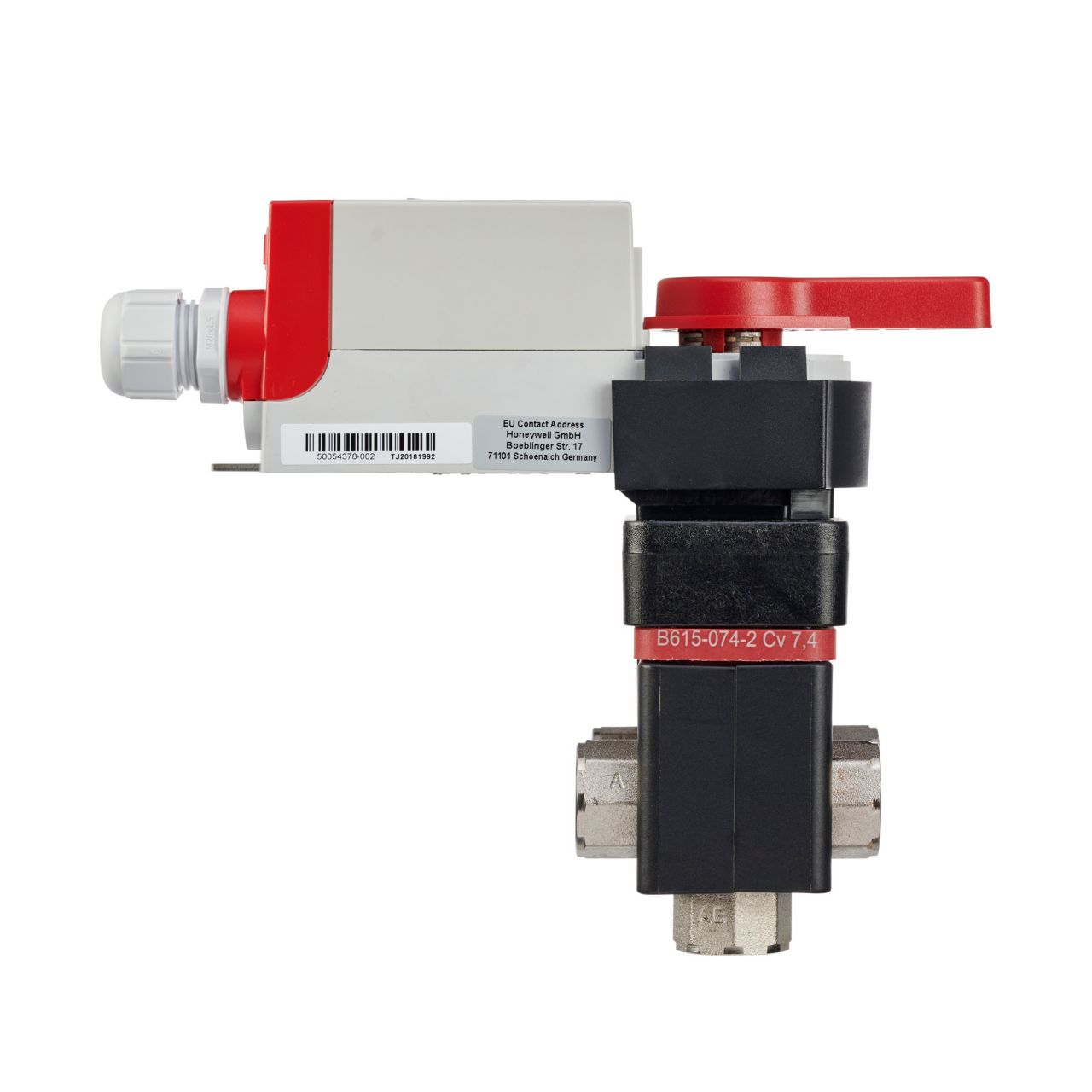

Honeywell VB6A019+008+AL VB6 6-Way Control Valve

Product Description

The Honeywell VB6A019+008+AL is a 6-way control valve ideal for 4-pipe systems. It combines change-over and control functions with a single modulating actuator. Two mechanically linked balls rotate together to manage both supply and return ports, which supports heating and cooling sequence management. This valve allows for the connection of a single 2-pipe heat exchanger to 4-pipe systems, which simplifies wiring and removes the necessity for an additional change-over valve.

• Valve size: half inch
• Sequence 1 Cv: 1.9
• Sequence 2 Cv: 0.8

Product Highlights

This valve simplifies the integration of control functions in HVAC systems, enhancing functionality and efficiency.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VB6A019+008+AL

Technical Specifications

• Product Category: 6-Way Valves
• Model: VB6VALVE
