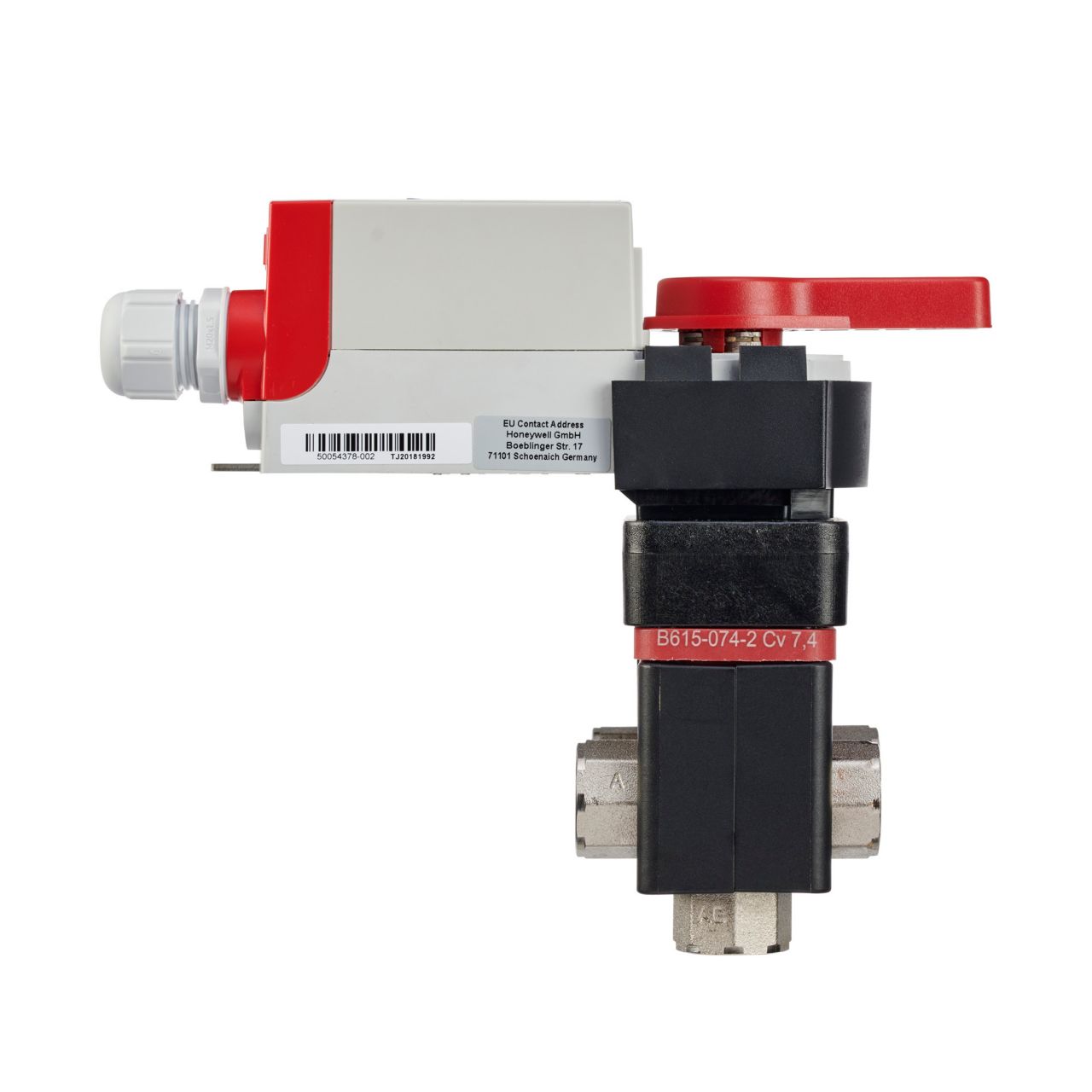

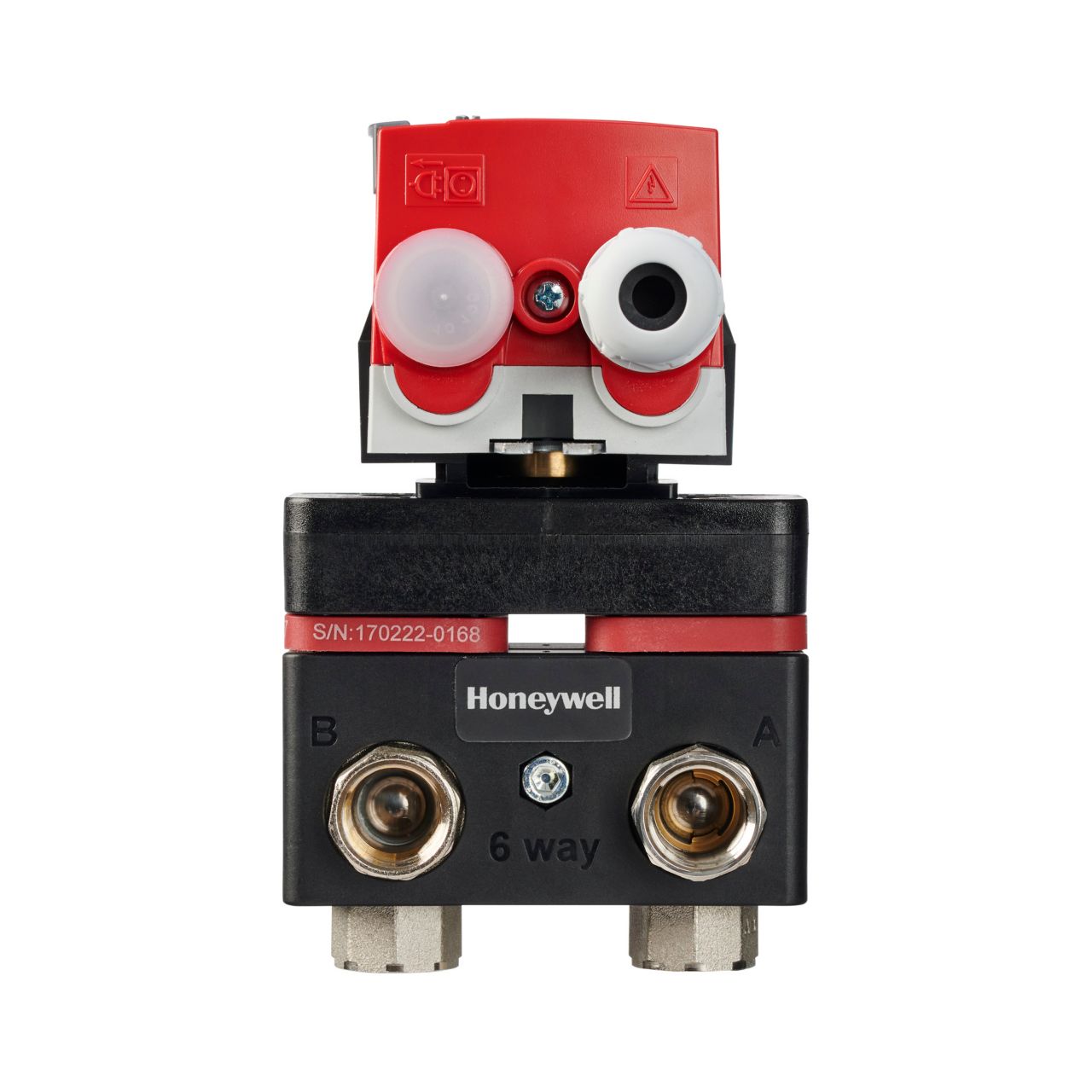

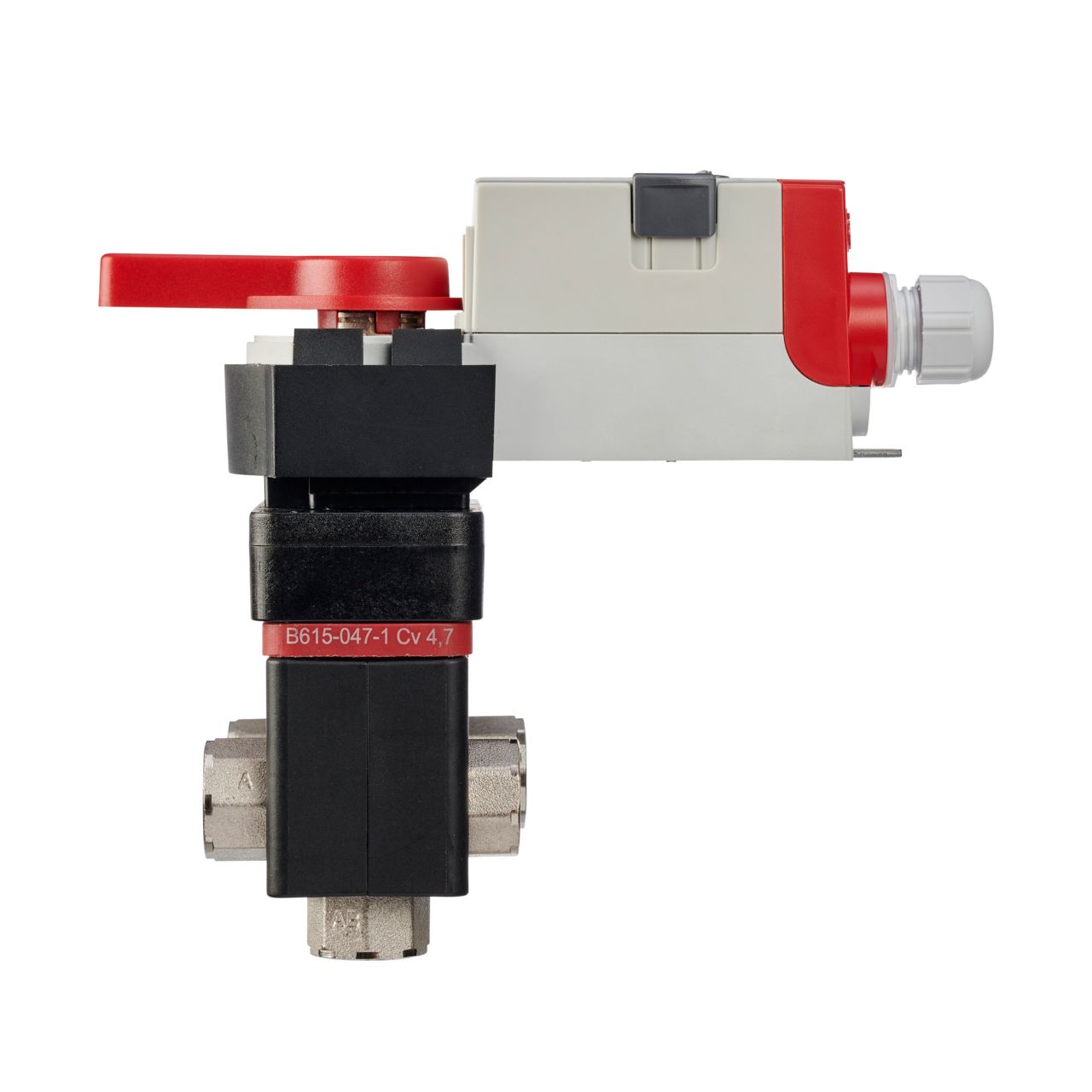

HONEYWELL VB6A019+005+AL 6-Way Control Valve Assembly

Product Description

The Honeywell VB6A019+005+AL is a 6-way control valve suitable for 4-pipe systems. This valve combines change-over and control valve functions using a single modulating actuator. It includes two mechanically connected balls on a single stem, allowing simultaneous opening of supply and return ports while keeping the alternate sequence closed. This assembly is constructed with a nickel-plated forged brass body and features a stainless steel ball and stem. It effectively controls both chilled and hot water in closed-loop systems.

• Designed for water and glycol services (up to sixty percent).
• Includes two SPDT auxiliary switches.
• Operates within a temperature range of minus five degrees Fahrenheit to one hundred forty degrees Fahrenheit (minus twenty degrees Celsius to sixty degrees Celsius).

Product Highlights

Ideal for various HVAC applications involving fluid control in heating and cooling systems.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VB6A019+005+AL

Technical Specifications

• Model: VB6VALVE
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: Zero degrees Fahrenheit to two hundred twelve degrees Fahrenheit (minus eighteen degrees Celsius to one hundred degrees Celsius)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Electrical Connections: Field Wiring 14-22 AWG to Screw Terminals located under the removable access cover
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter (Shaft Coupling)
