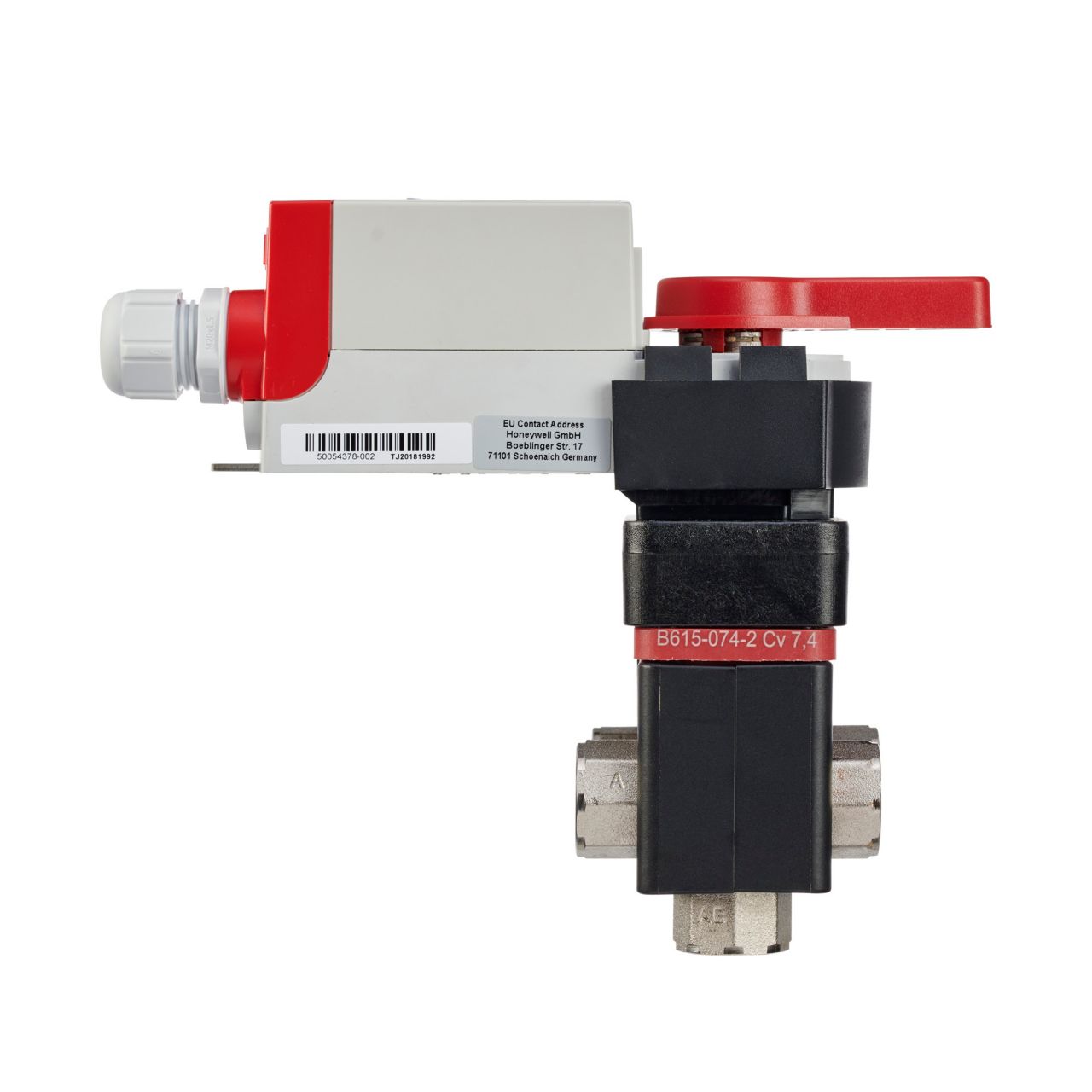

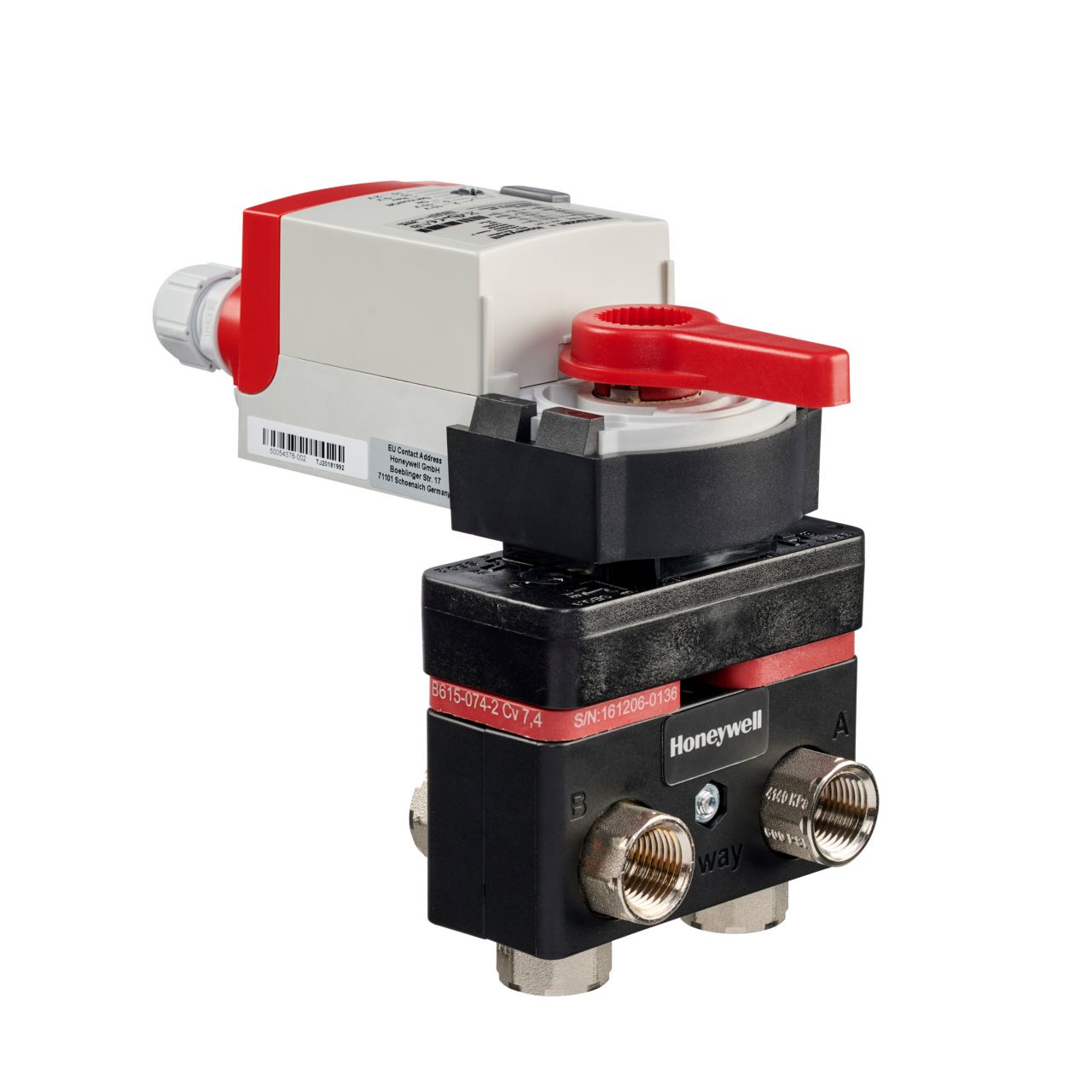

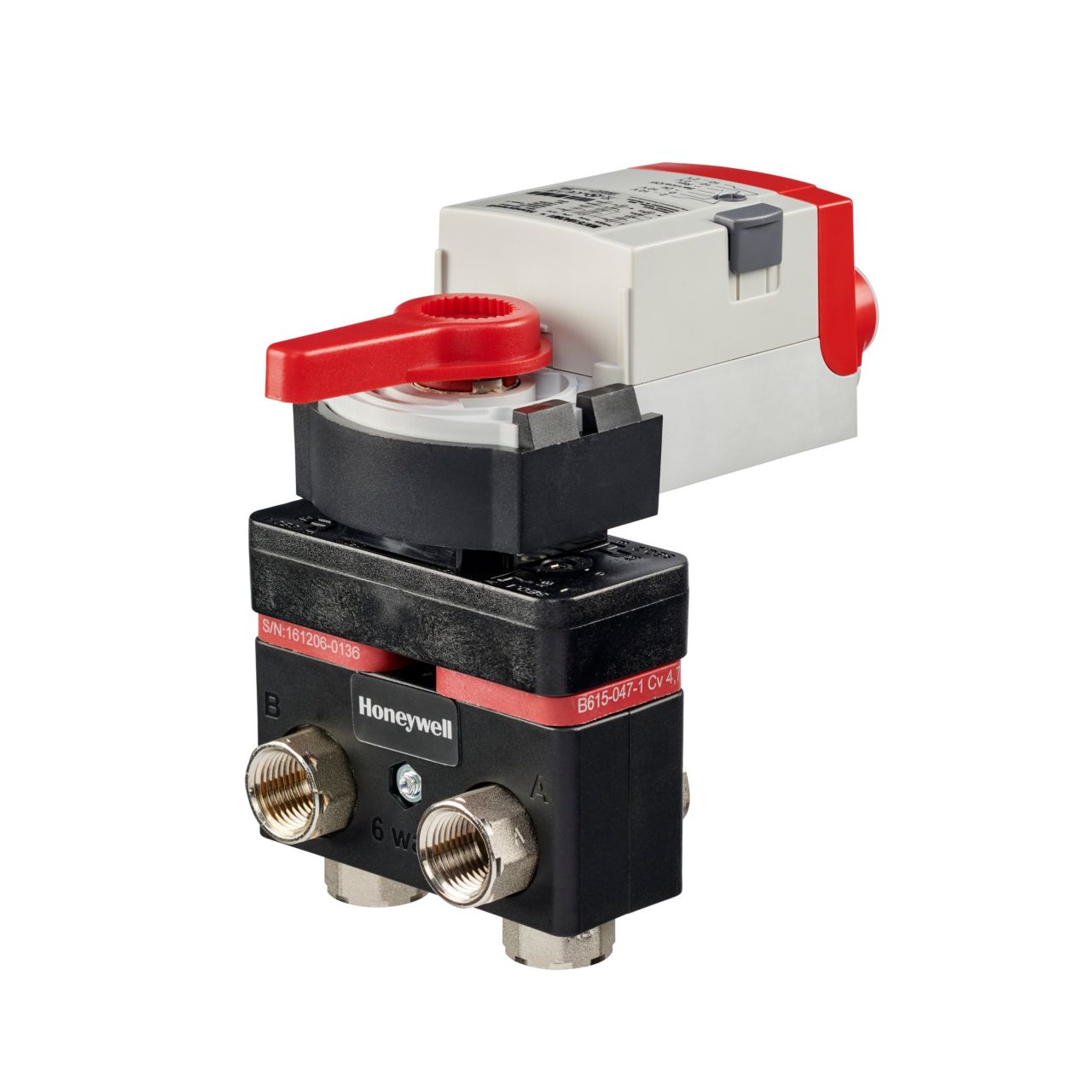

Honeywell VB6A012+074+AL VB6 6-Way Control Valve

Product Description

The Honeywell VB6A012+074+AL is designed for 4-pipe systems. This 6-way control valve combines change-over and control valve functions with a single modulating actuator. It features two connected balls that rotate together, managing the opening of supply and return ports in one control sequence while keeping the other closed. This valve is ideal for controlling chilled or hot water in closed loop systems. Common applications include fan coil units and air handling coils.

• Valve size: one half inch
• Sequence 1 Cv: 1.2
• Sequence 2 Cv: 7.4

Product Highlights

This valve effectively manages water flow in varying conditions, improving system efficiency.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VB6A012+074+AL

Technical Specifications

• Model: VB6VALVE
• Weight: 1.5 lbs
• Unit of Measurement: EA (Each)
• Product Category: 6-Way Valves
• Item Number: VB6A012+074+AL
