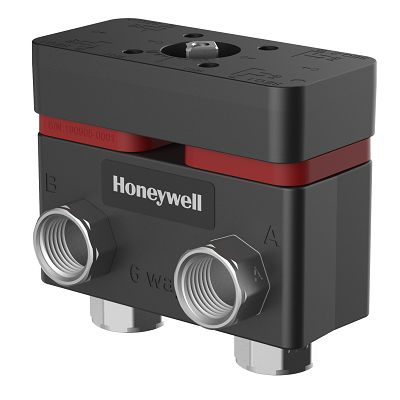

Honeywell VB6A012+047+AL 6-Way Control Valve Assembly

Product Description

The Honeywell VB6A012+047+AL is a 6-way control valve assembly designed for efficient fluid regulation. With a half inch NPT connection, it is made from a nickel-plated forged brass body, ensuring durability. The included stainless steel ball and stem enhance its ability to perform in HVAC, refrigeration, and industrial applications. This valve effectively manages water and glycol mixtures up to sixty percent, making it versatile for various systems.

• Flow coefficient (Cv) of 1.2 for sequence one and 4.7 for sequence two
• Non-spring return actuator with 88 in-lb torque
• Compatible with temperatures ranging from negative five to 140 degrees Fahrenheit

Product Highlights

This control valve assembly adeptly regulates fluid flow in demanding environments, offering reliable performance across a range of applications.

Product Information

Standard Information

• Brand: Honeywell
• Service: Water, Glycol 60%

Technical Specifications

• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals, Located Under The Removable Access Cover
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter (Shaft Coupling)
