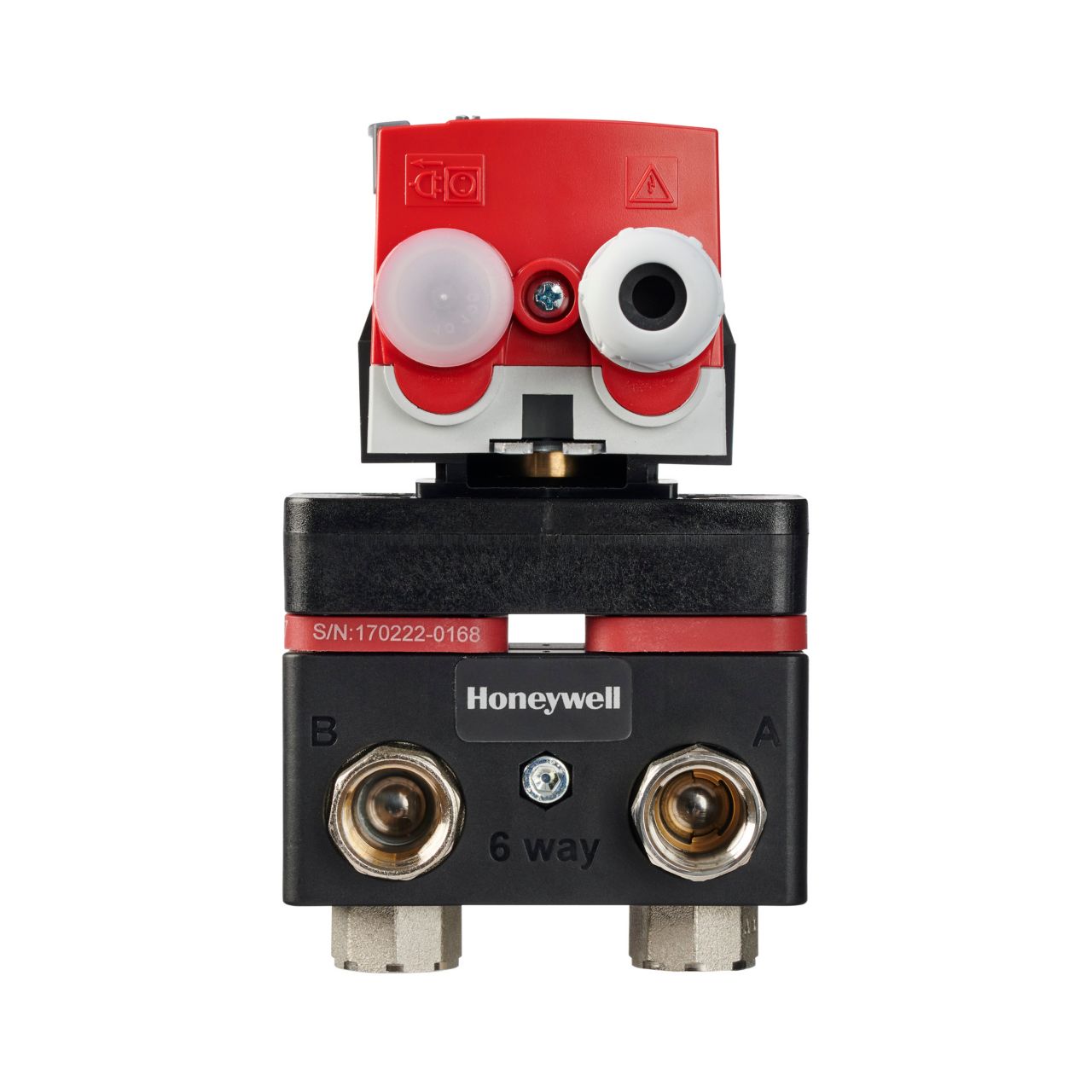

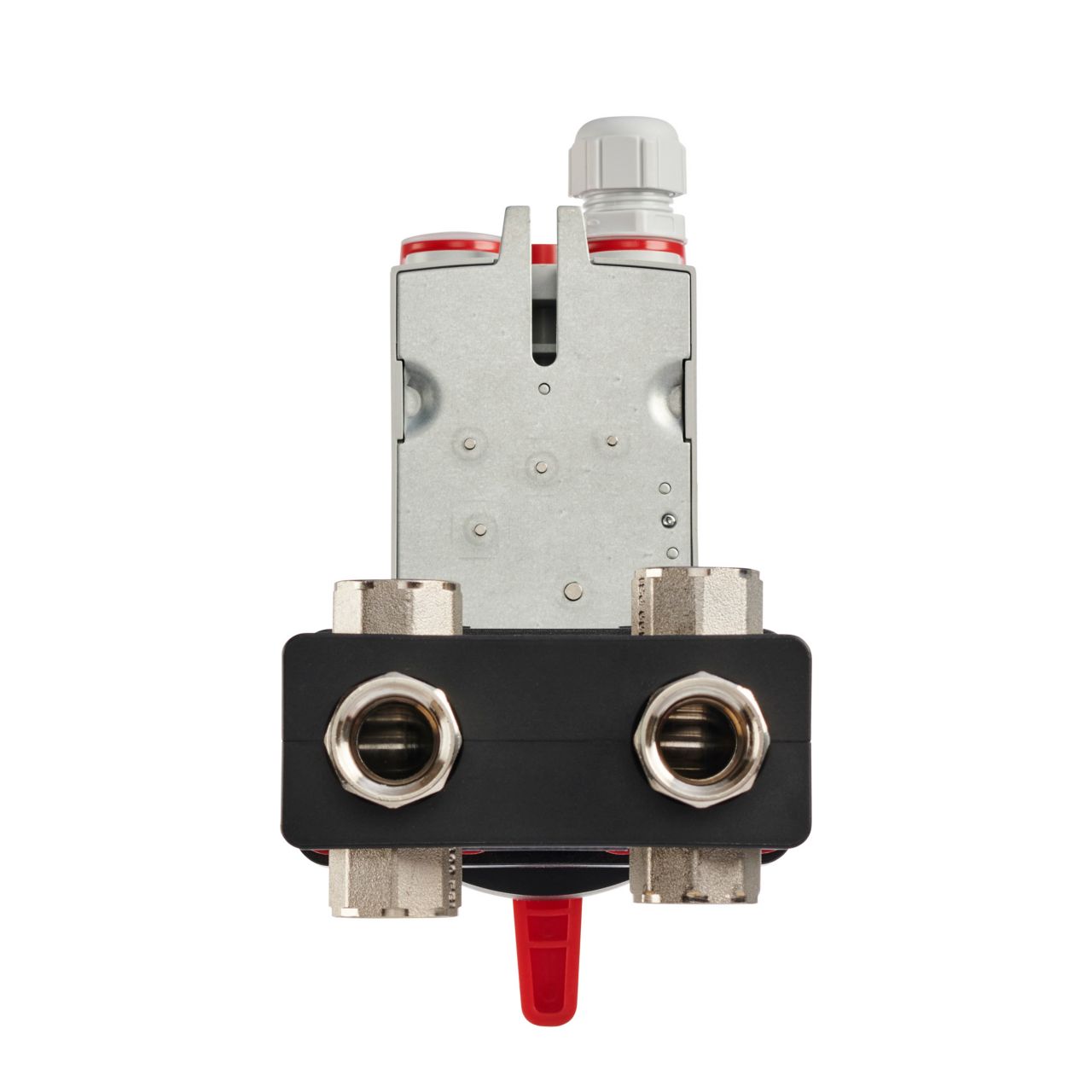

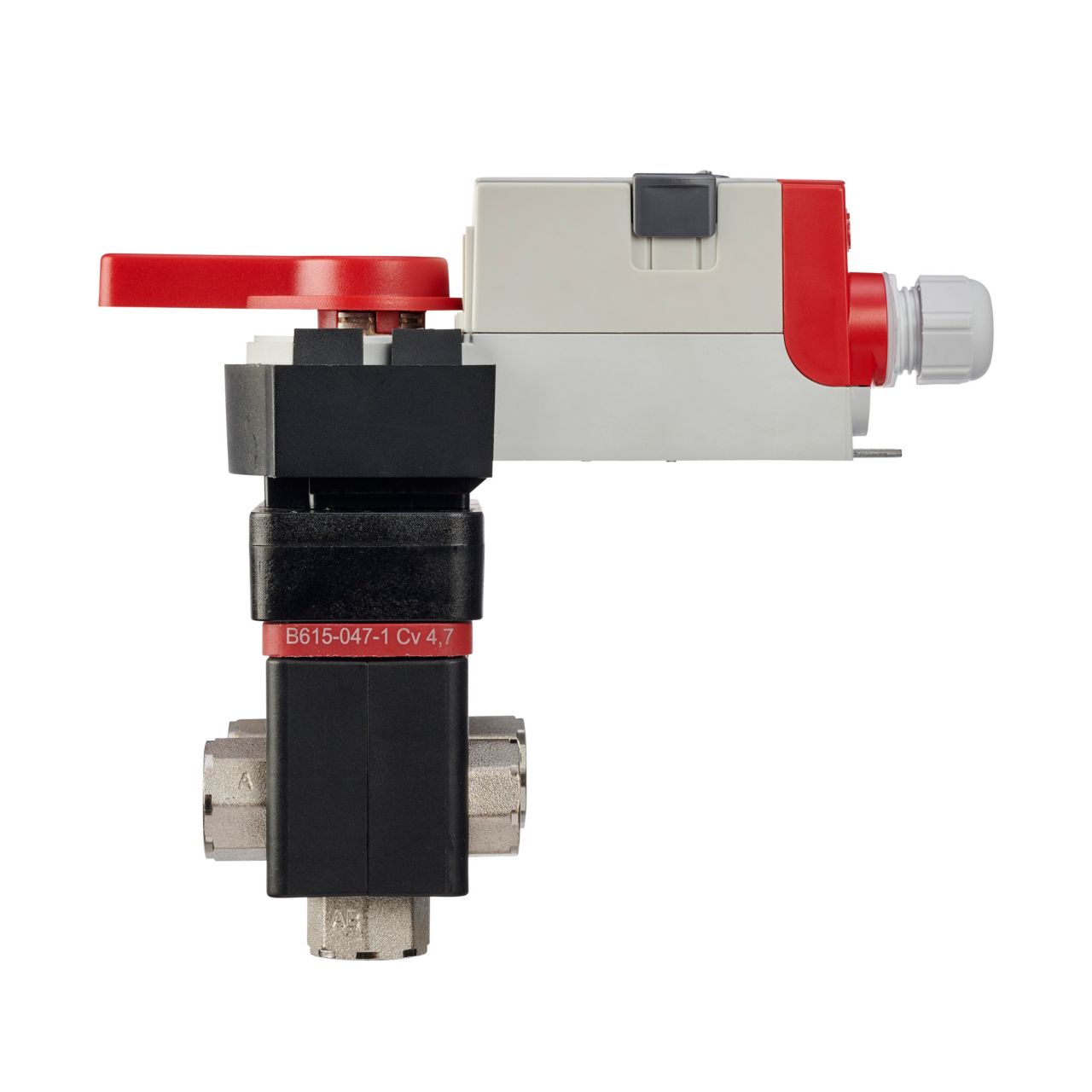

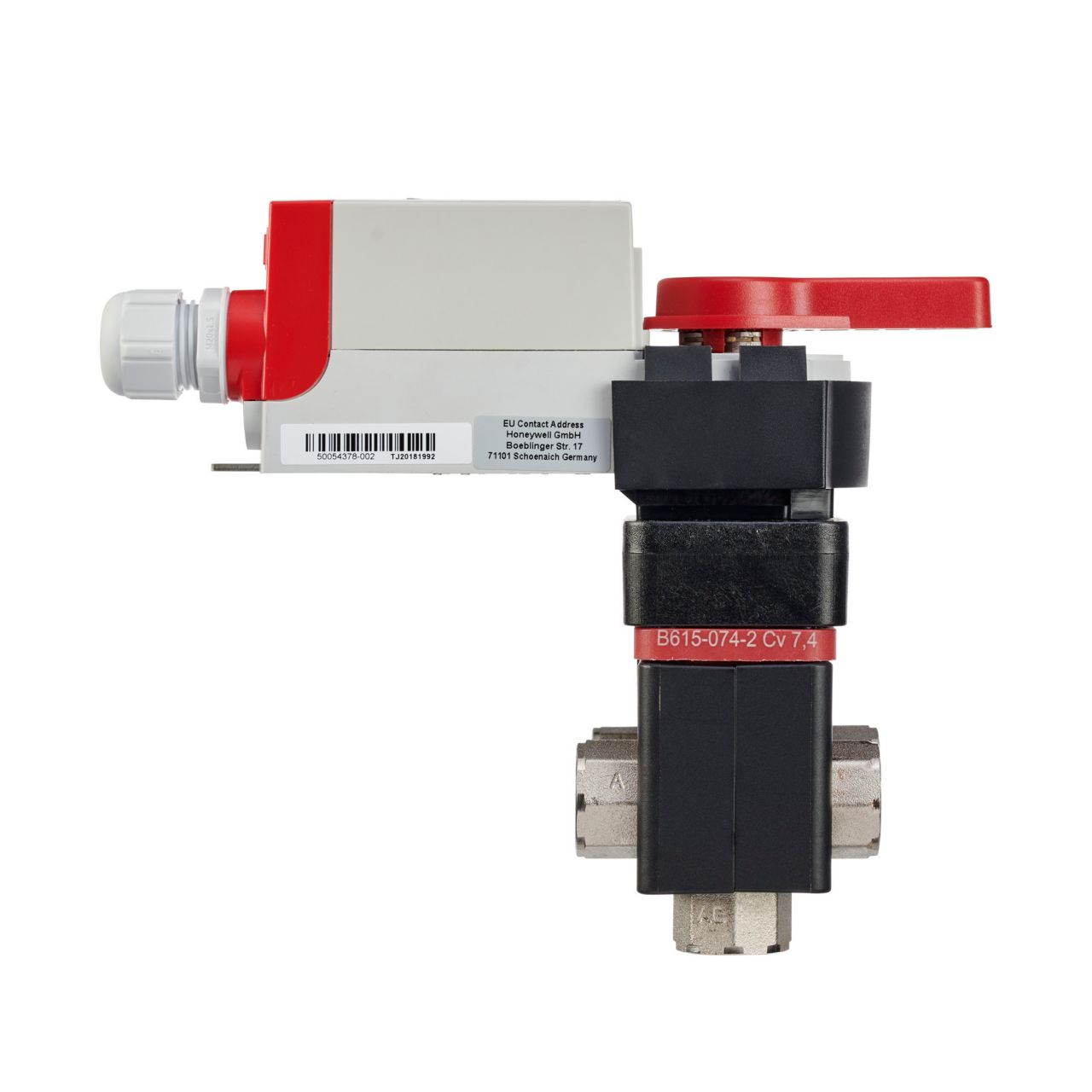

Honeywell VB6A012+019+AL 6-Way Control Valve Assembly

Product Description

The Honeywell VB6A012+019+AL is a 6-way control valve assembly designed for use in 4-pipe systems with a single 2-pipe heat exchanger. This valve serves as both a change-over and control valve, utilizing a single modulating actuator for effective operation. Its durable construction includes a nickel-plated forged brass body along with stainless steel components.

• Features a nickel-plated forged brass body and stainless steel trim.

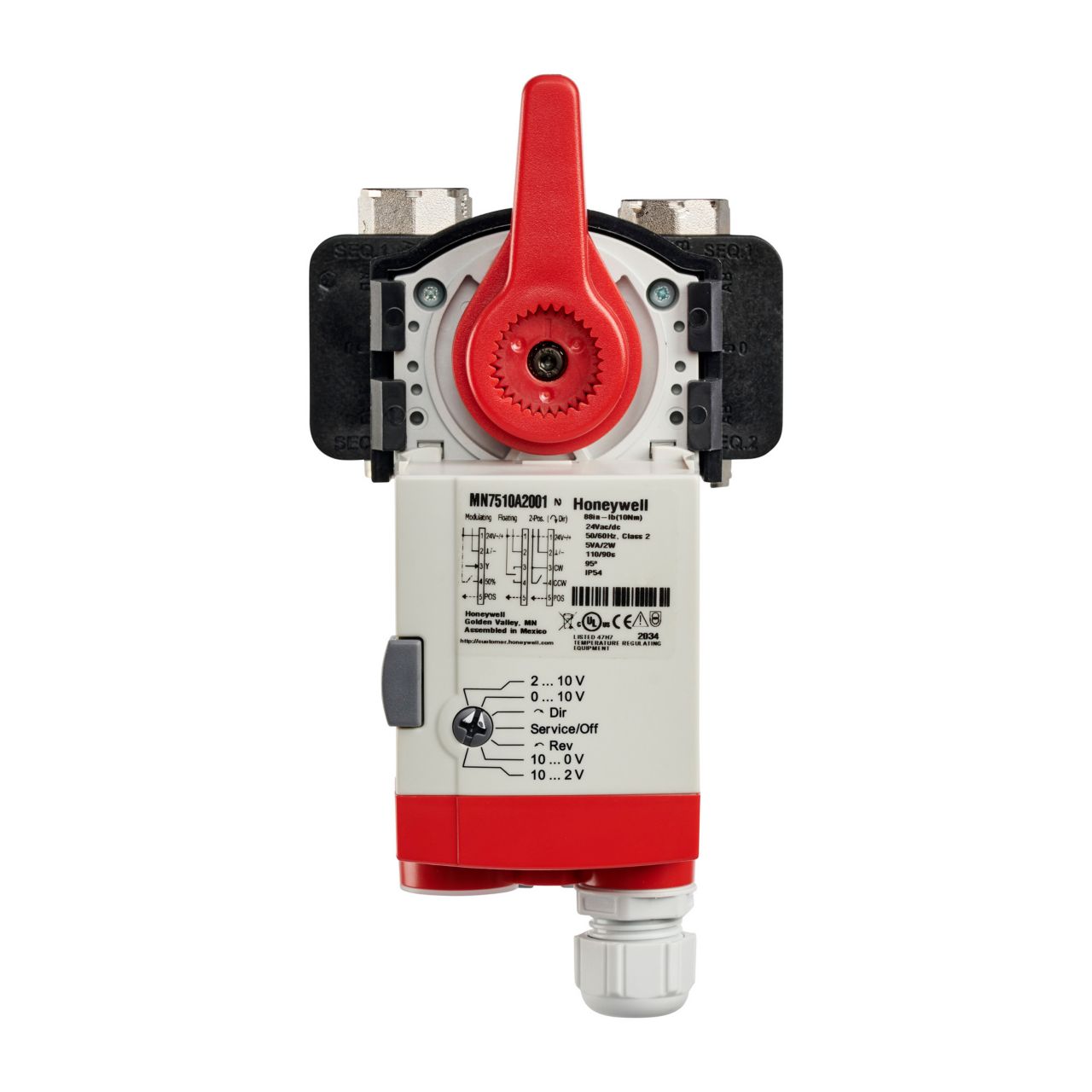

• Equipped with a direct-coupled actuator and removable access cover for easy wiring.
• Compatible with water and glycol mixtures (up to sixty percent).

Product Highlights

This valve is designed to control chilled or hot water in closed-loop systems and prevents flow mixing between heating and cooling sequences, making it ideal for HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VB6A012+019+AL
• Model: VB6VALVE
• Product Category: 6-Way Valves
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals, Located Under The Removable Access Cover
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter (Shaft Coupling)
