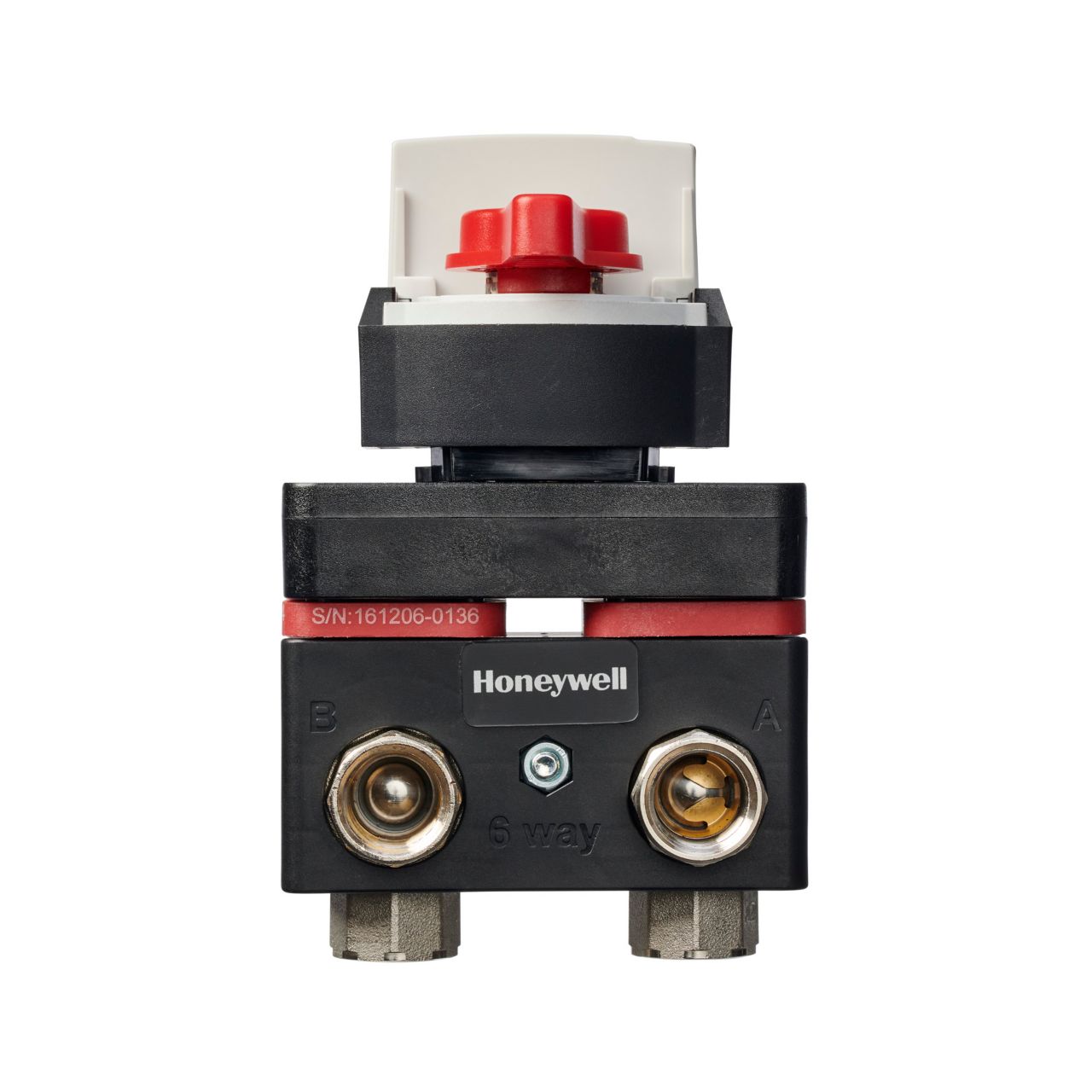

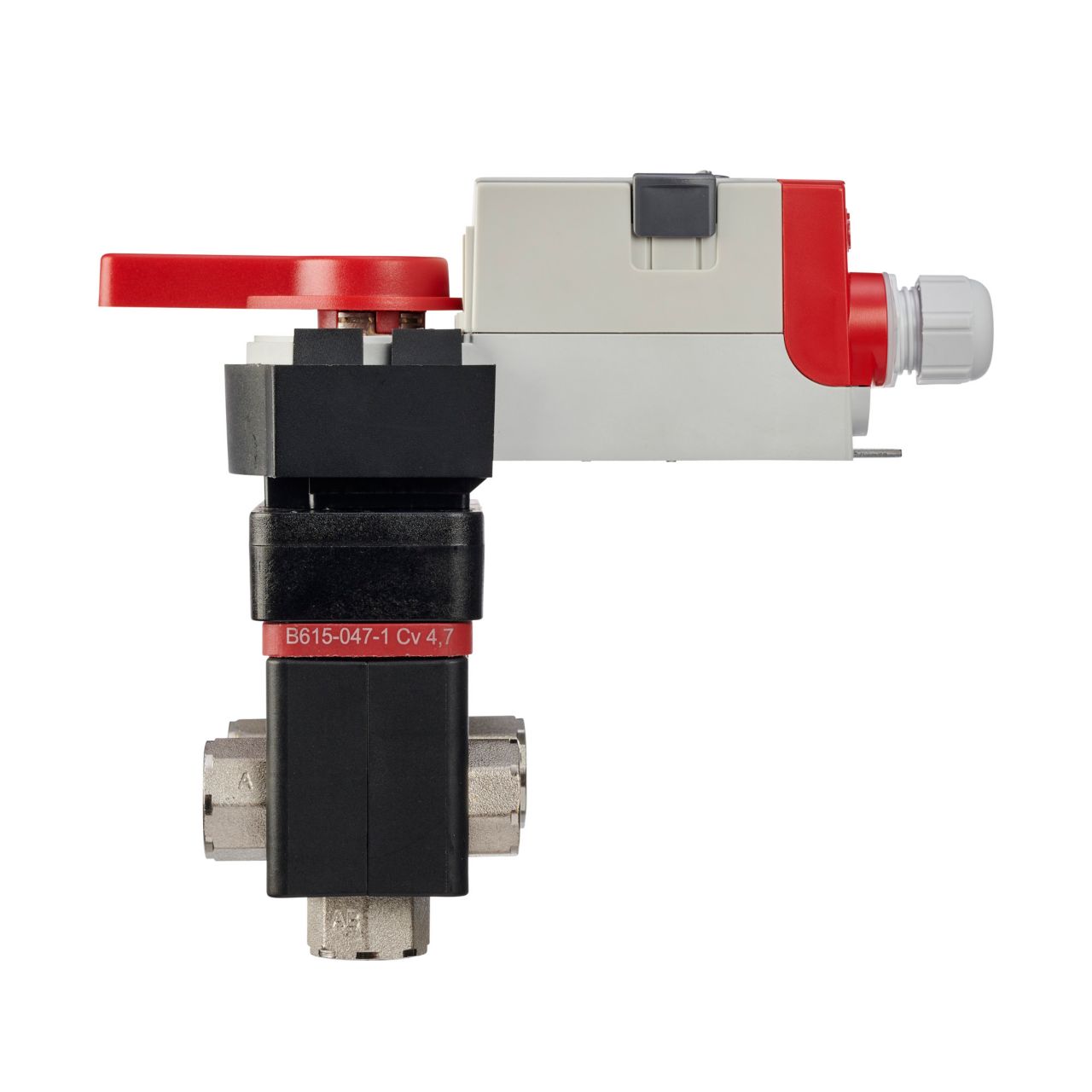

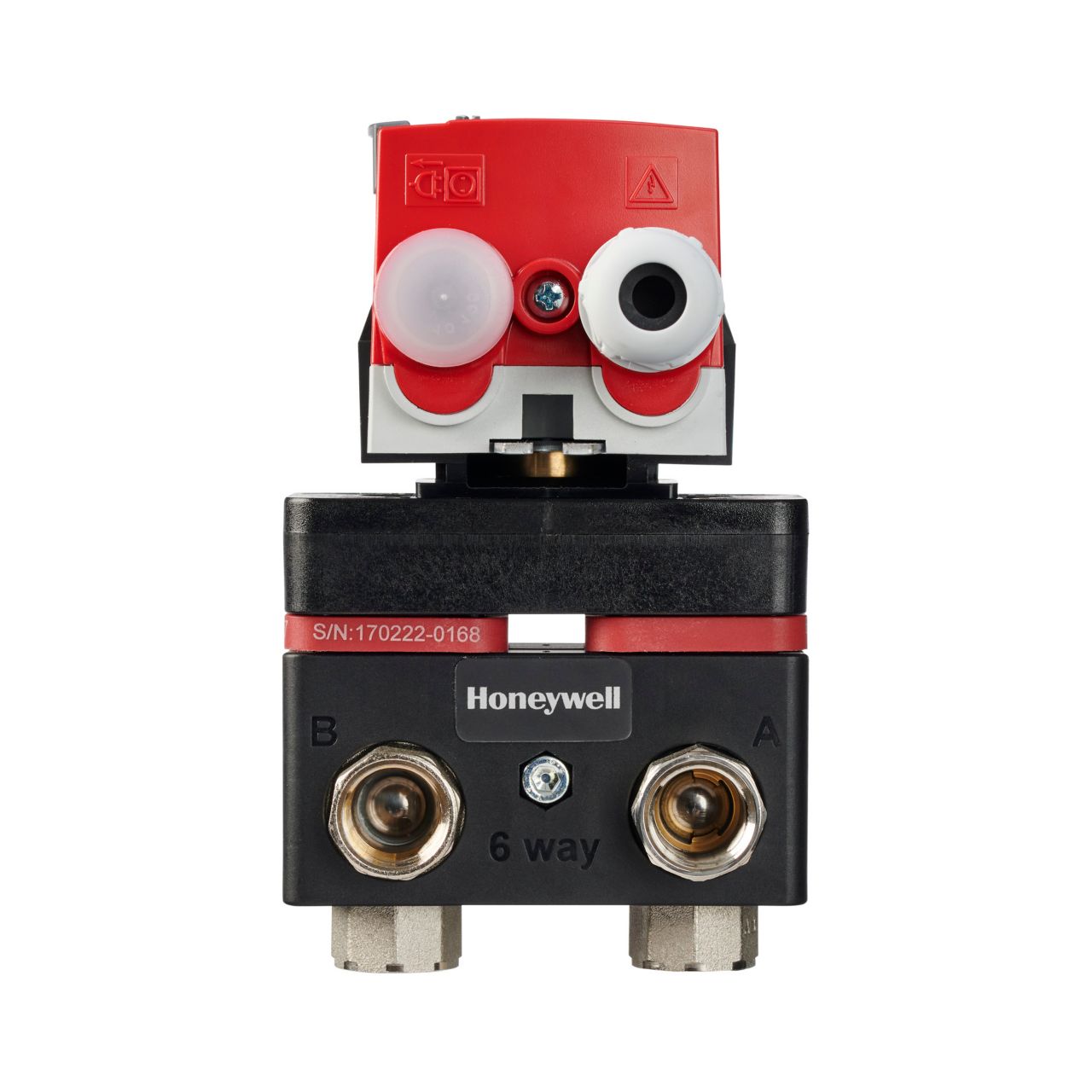

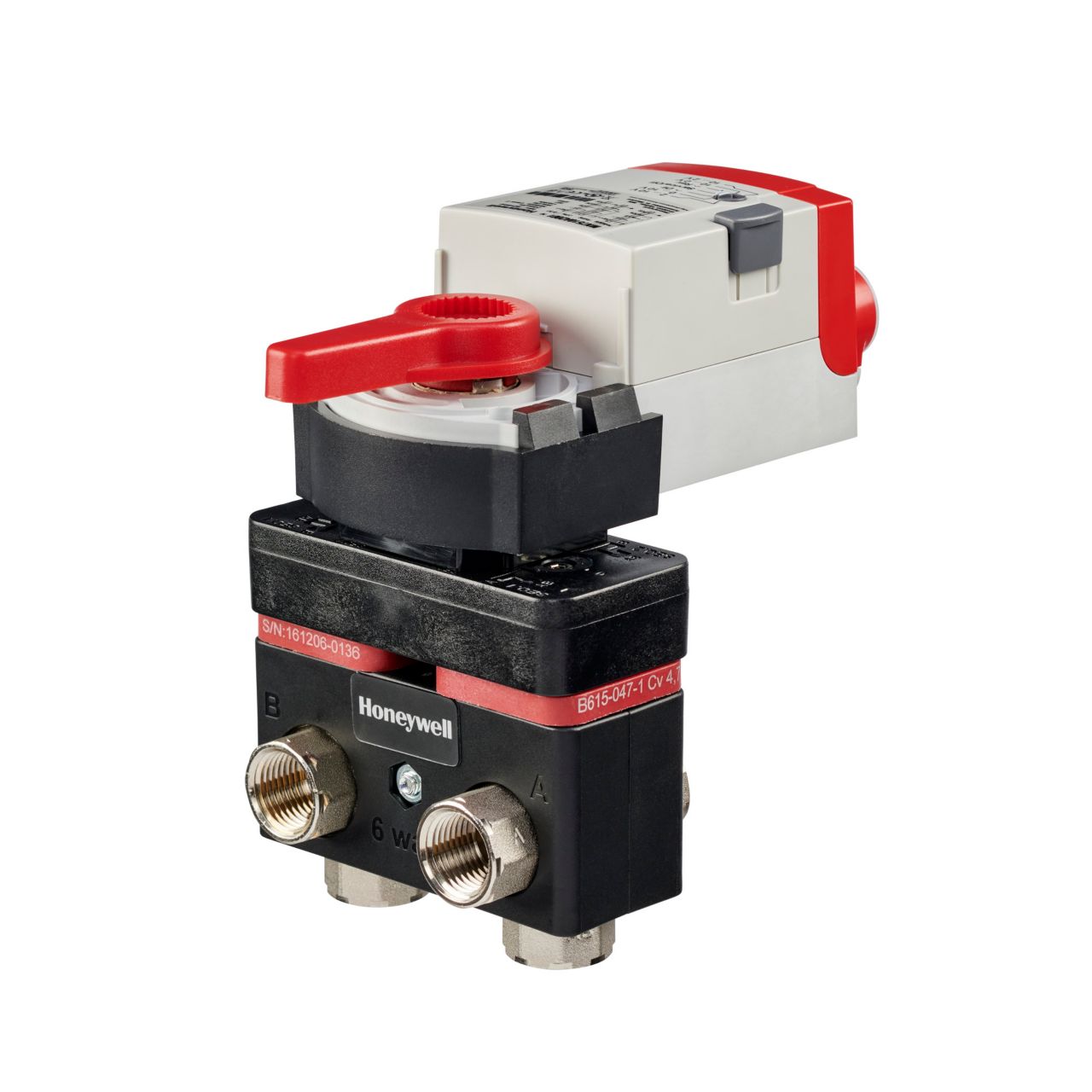

Honeywell VB6A012+008+AL VB6 Series 6-Way Control Valve and Actuator

Product Description

The Honeywell VB6A012+008+AL is a six-way control valve that is ideal for four-pipe systems. This product acts as both a change-over valve and a control valve, managing connections for a single two-pipe heat exchanger.

The valve employs a modulating actuator to effectively control heating and cooling operations. It features two mechanically linked balls that rotate together to manage the opening and closing of supply and return ports, ensuring that flow mixing does not occur. This makes it appropriate for use with chilled beams, fan coil units, and small air handling coils.

• Valve body constructed with nickel-plated brass.
• Includes stainless steel balls and stems.

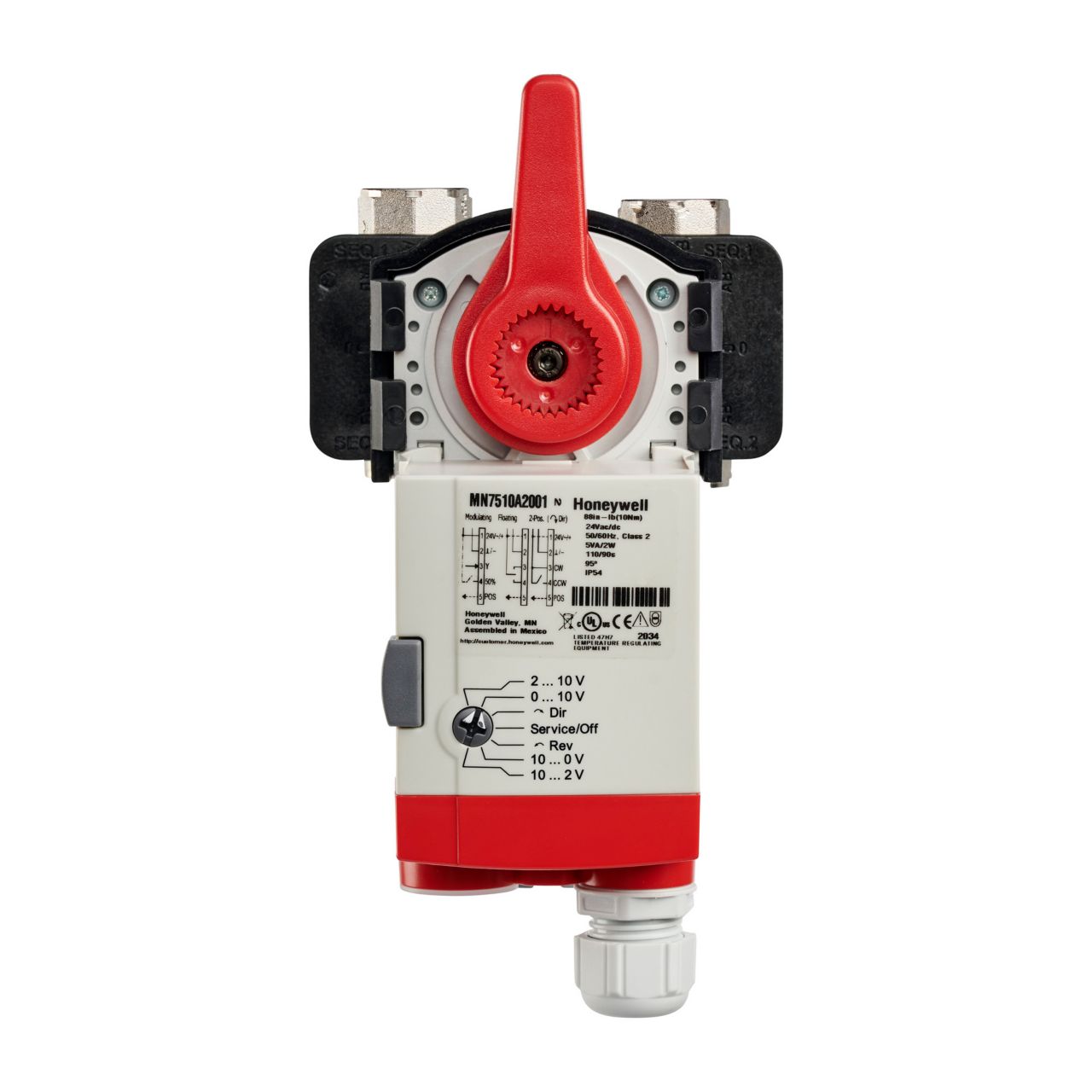

• Comes with a modulating actuator.

Product Highlights

The Honeywell VB6A012+008+AL is built for performance and reliability in various heating and cooling applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell International Inc

Technical Specifications

• Part Number: VB6A012+008+AL
• Model: VB6VALVE
• Type: Valves
• Material: Brass
• Product Category: 6-Way Valves
