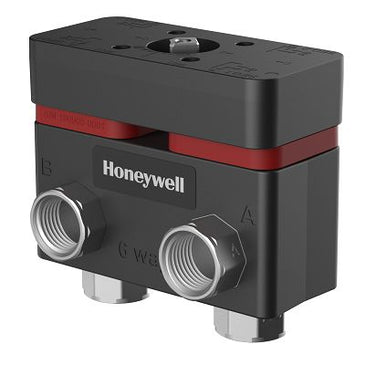

Honeywell VB6A008+005+AL Control Valve Assembly, 6-Way, 1/2 in.

Product Description

The Honeywell VB6A008+005+AL is a 6-way control valve assembly with a half inch NPT connection. This valve features a nickel-plated forged brass body, stainless steel ball and stem, and includes a direct coupled actuator. It operates on 24 VAC and has a power rating of five VA. This valve supports various control signals including floating, 2-10 VDC, and 4-20 mA, with SPDT on/off control capability.

• 6-way valve with half inch NPT connection
• Operating temperature from minus five degrees Fahrenheit to one hundred forty degrees Fahrenheit
• Two SPDT auxiliary switches included

Product Highlights

This control valve is designed for use with water and glycol solutions up to sixty percent concentration.

Product Information

Standard Information

• Brand: Honeywell
• Item Number: VB6A008+005+AL

Technical Specifications

• Product Category: 6-Way Valves
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals
