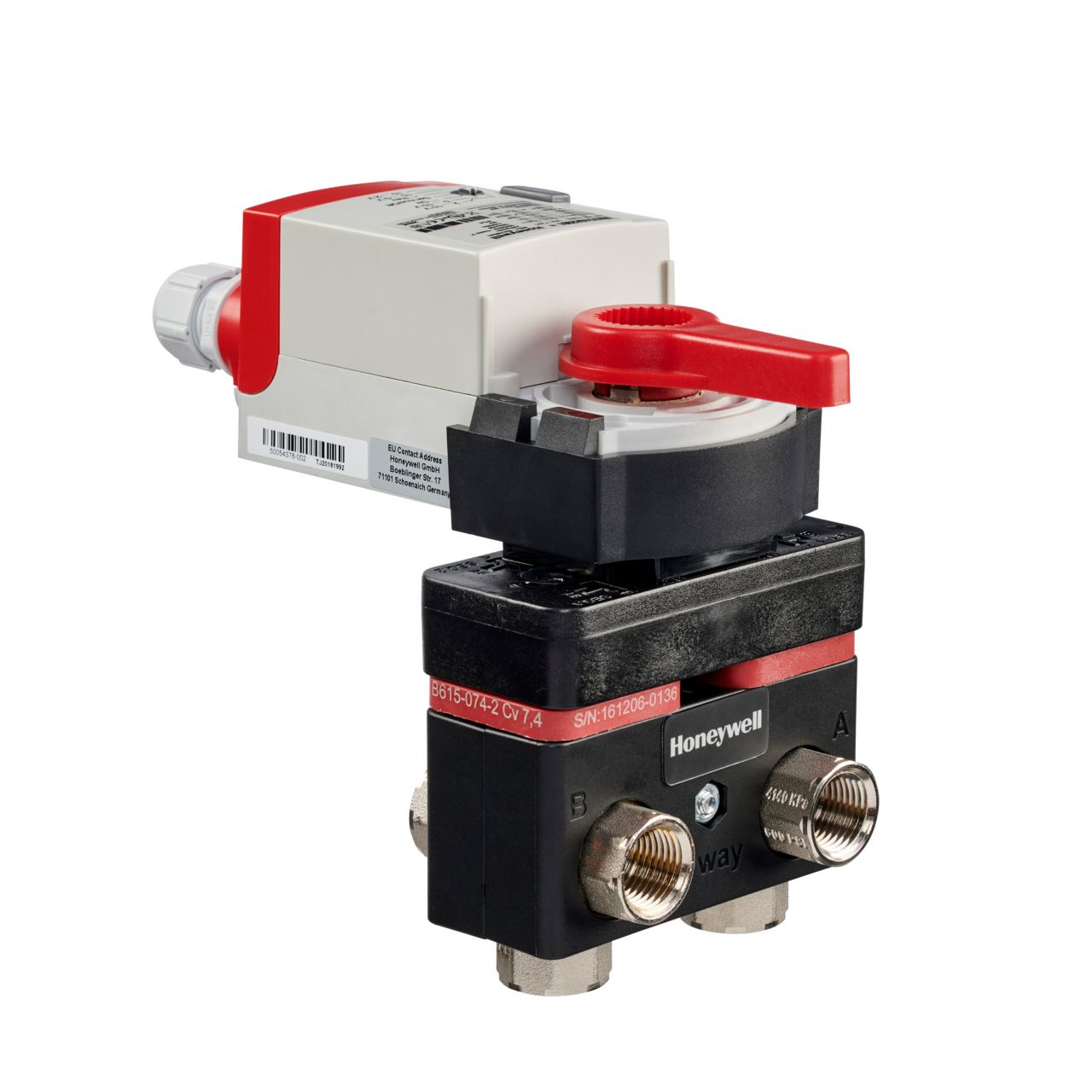

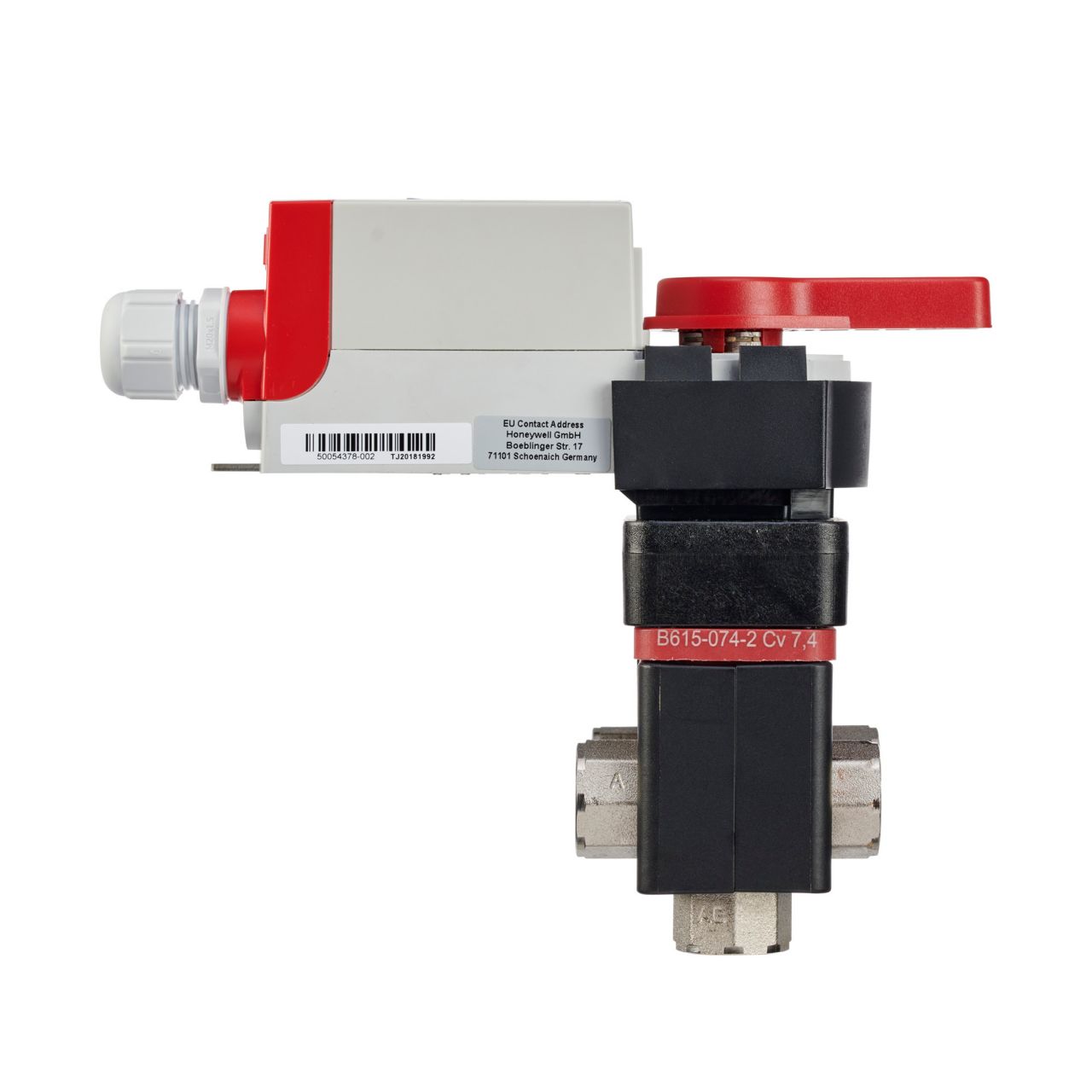

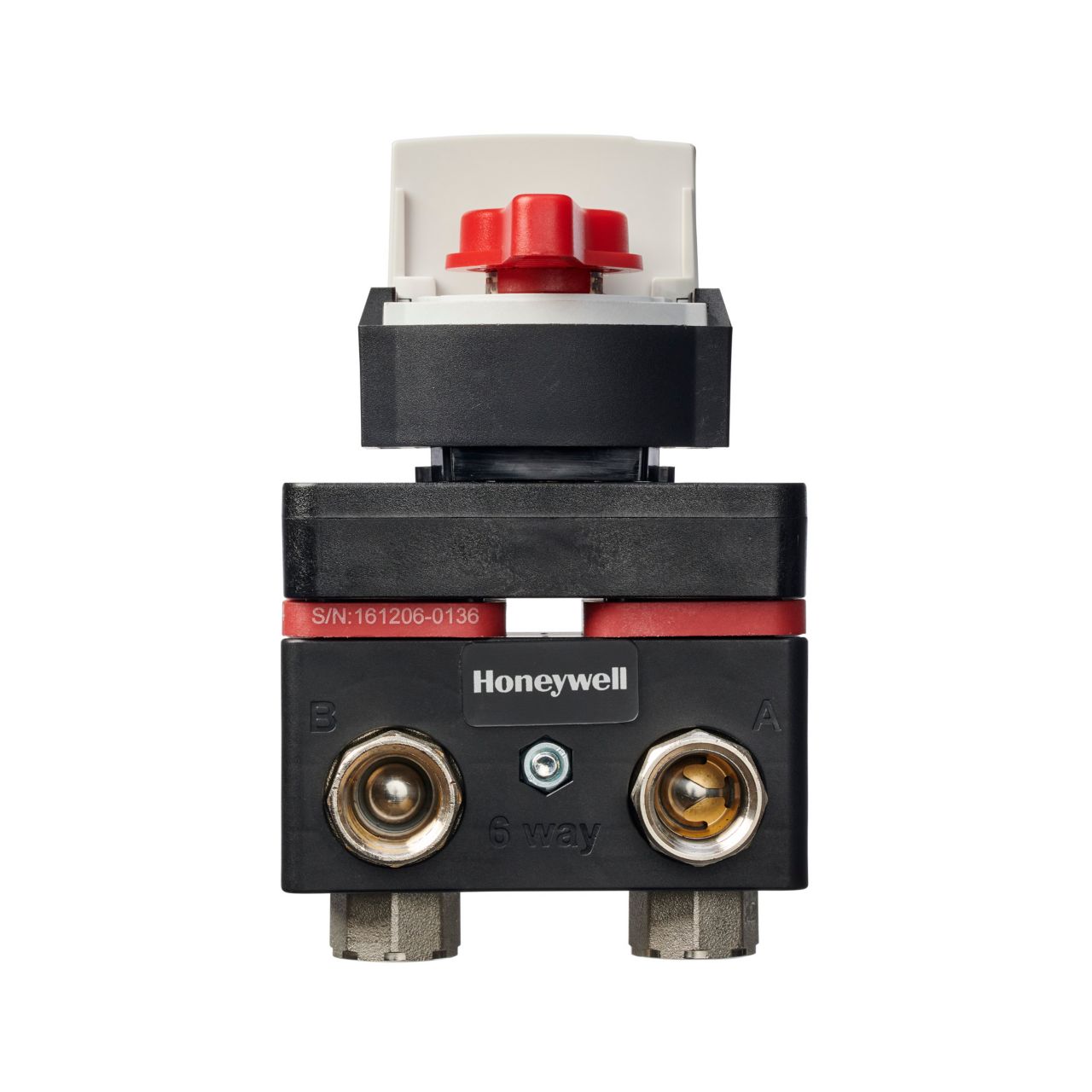

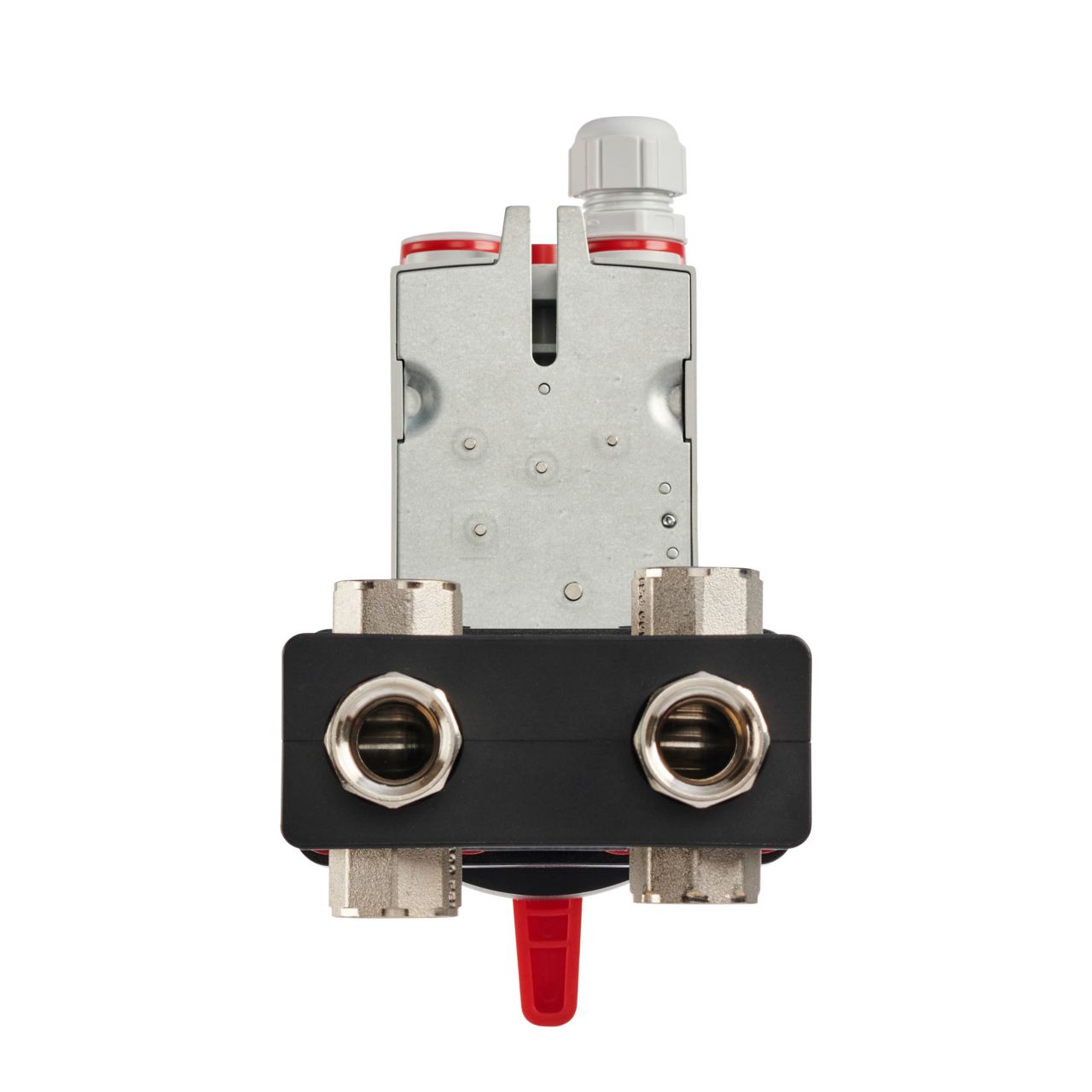

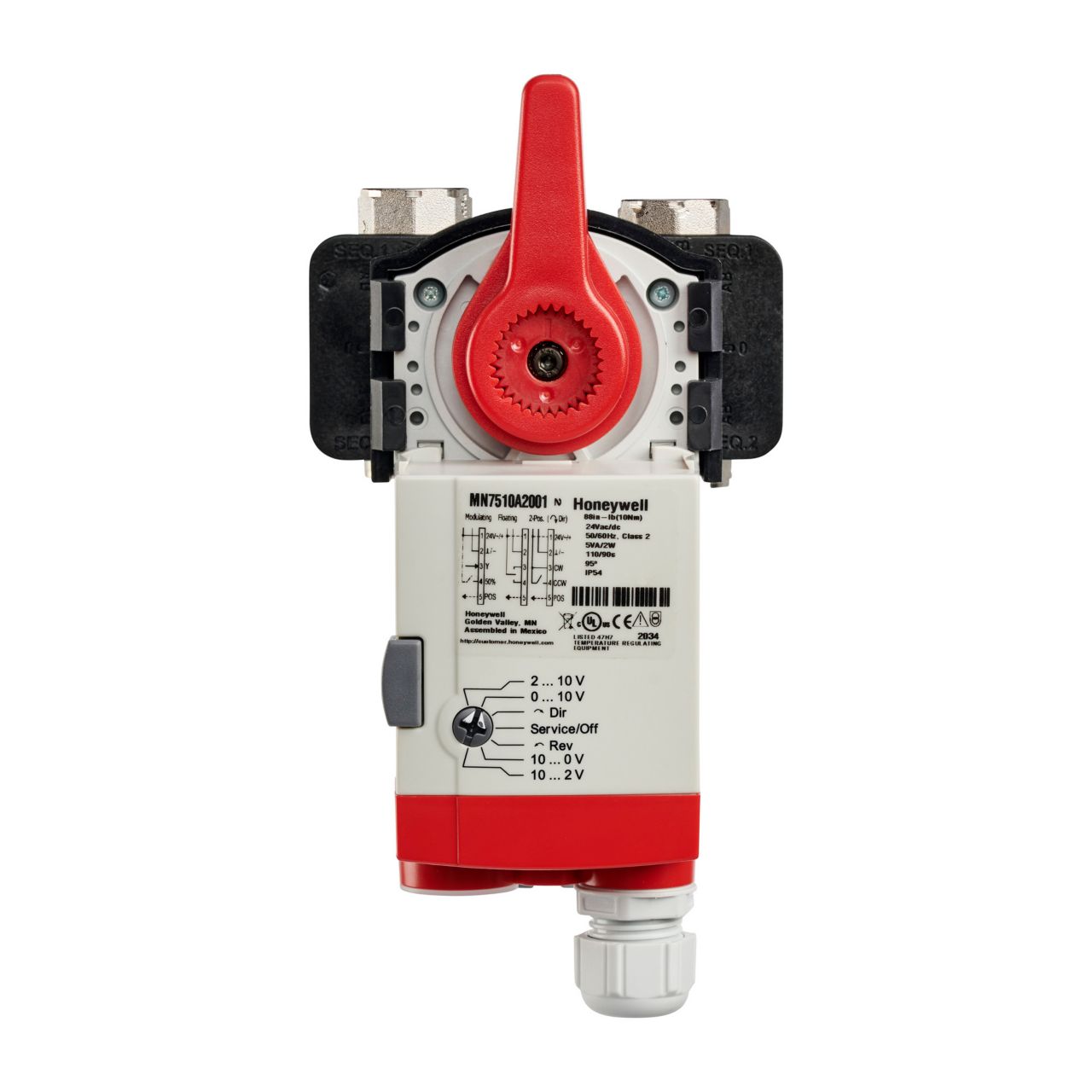

HONEYWELL VB6A005+047+AL 6-Way Control Valve Assembly

Product Description

The Honeywell VB6A005+047+AL is a six-way control valve assembly designed for efficient operation in closed loop systems. This product combines change-over and control valve functions into one unit. It utilizes a modulating actuator for enhanced control. The construction includes a nickel-plated forged brass body and a stainless steel ball and stem, ensuring durability. This valve is suited for managing both chilled and hot water in systems with a 2-pipe heat exchanger connected to a four-pipe system. The control sequences offer Cv values of 0.46 and 4.7 for precise flow regulation.

• Nickel-plated forged brass body.
• Stainless steel ball and stem.
• Suitable for water and 60% glycol service.

Product Highlights

The valve effectively controls water flow in heating and cooling systems.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VB6A005+047+AL
• Model: VB6VALVE
• Product Category: 6-Way Valves
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals
• Auxiliary Switches: Two SPDT
