Honeywell VB6A005+003+AL VB6 6-Way Control Valve Assembly

Product Description

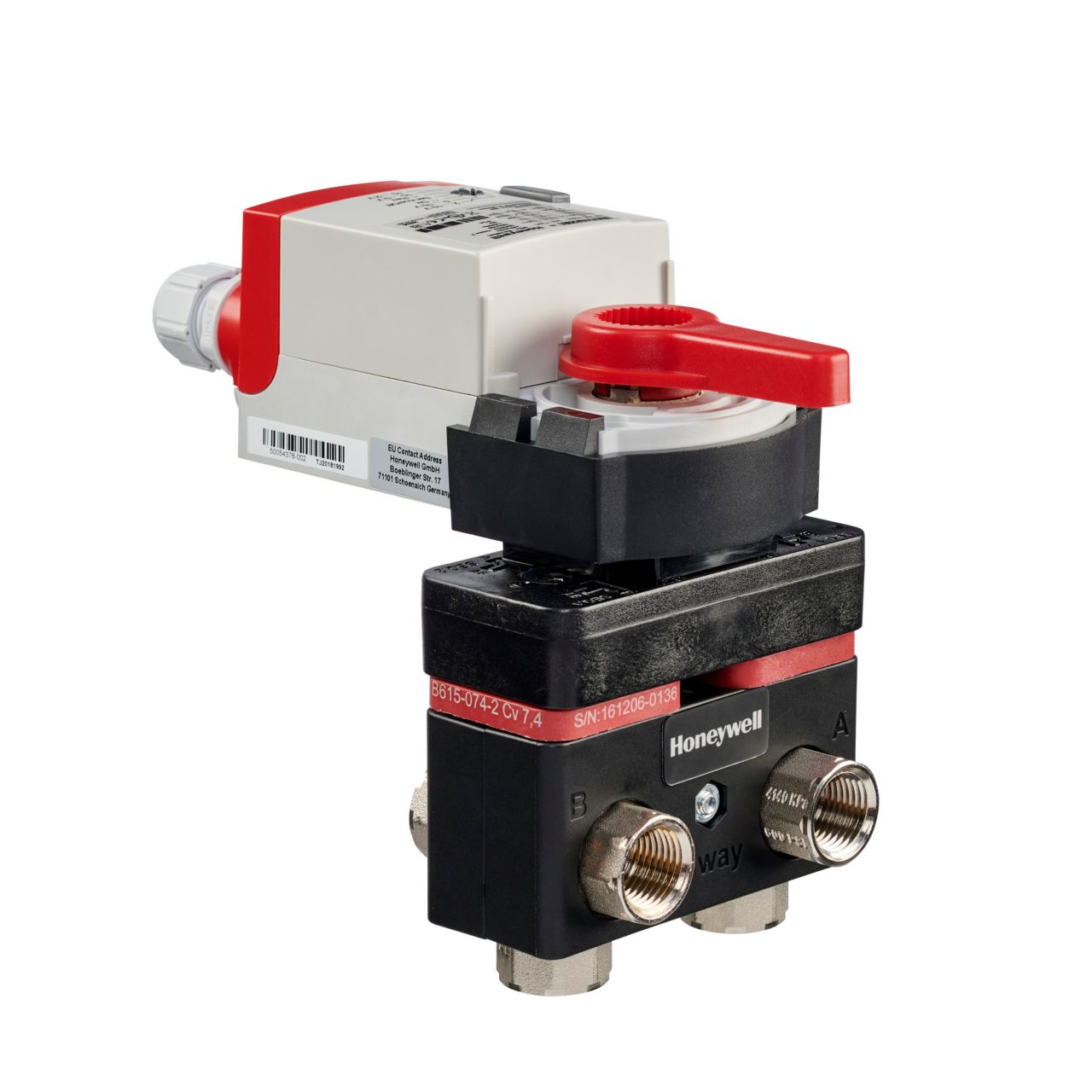

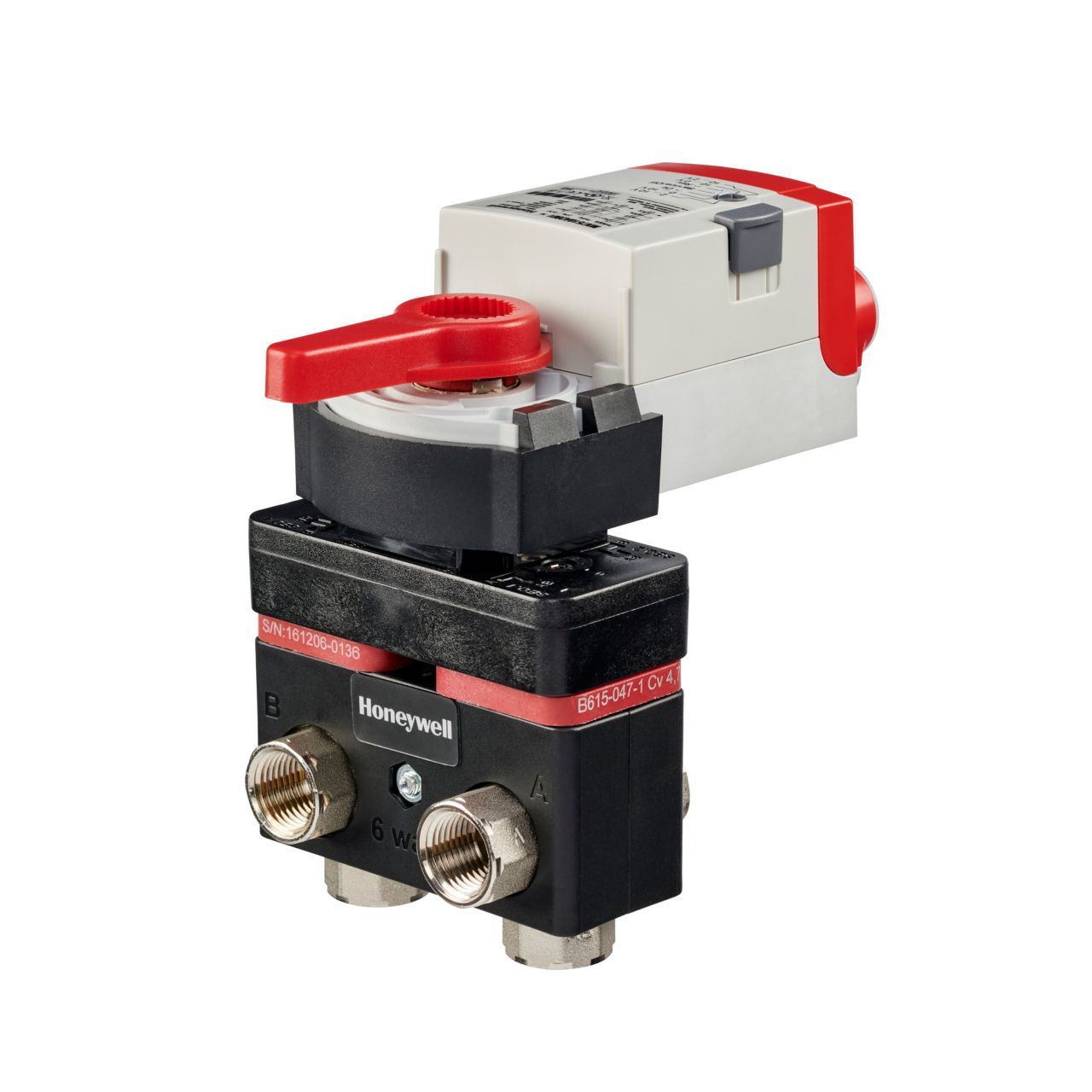

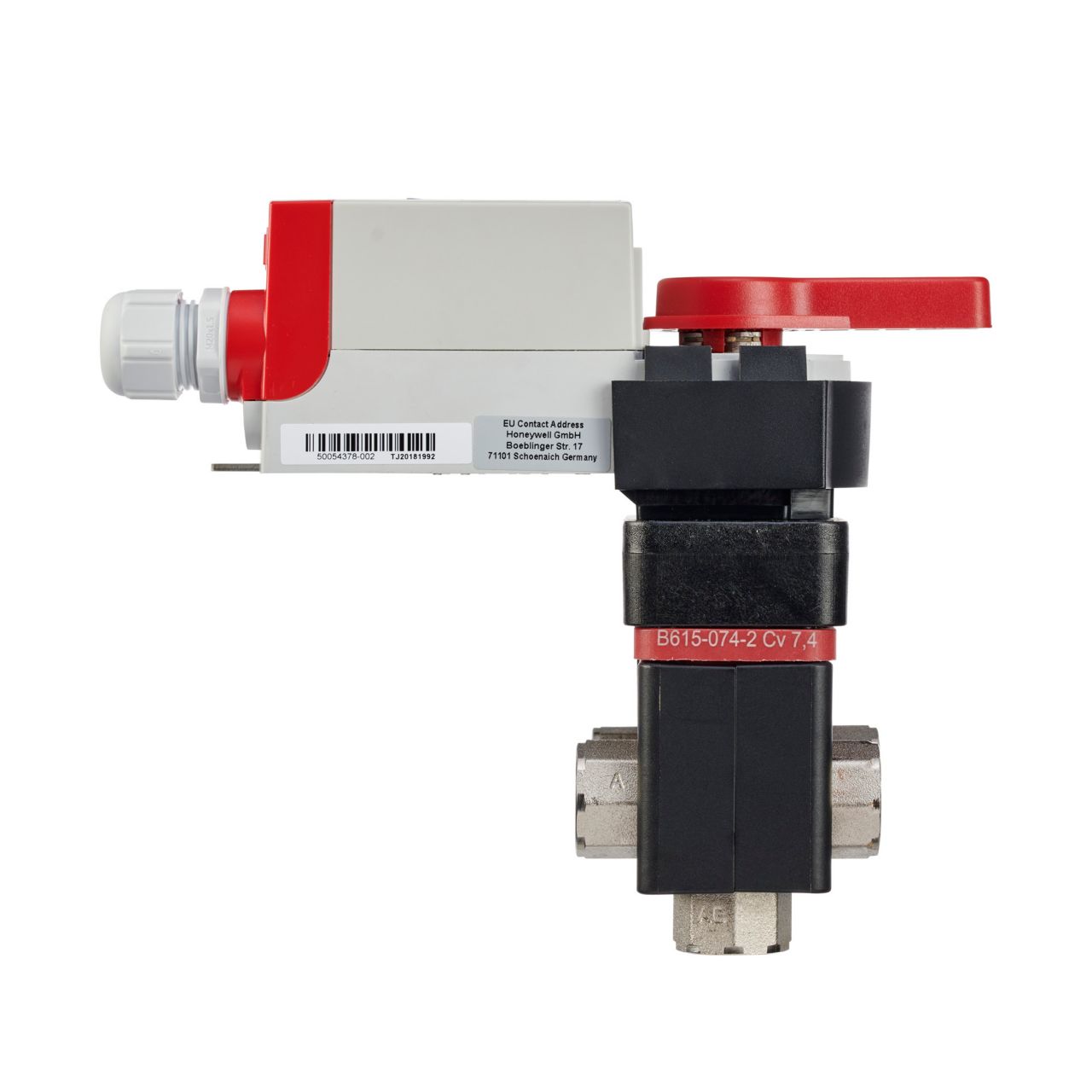

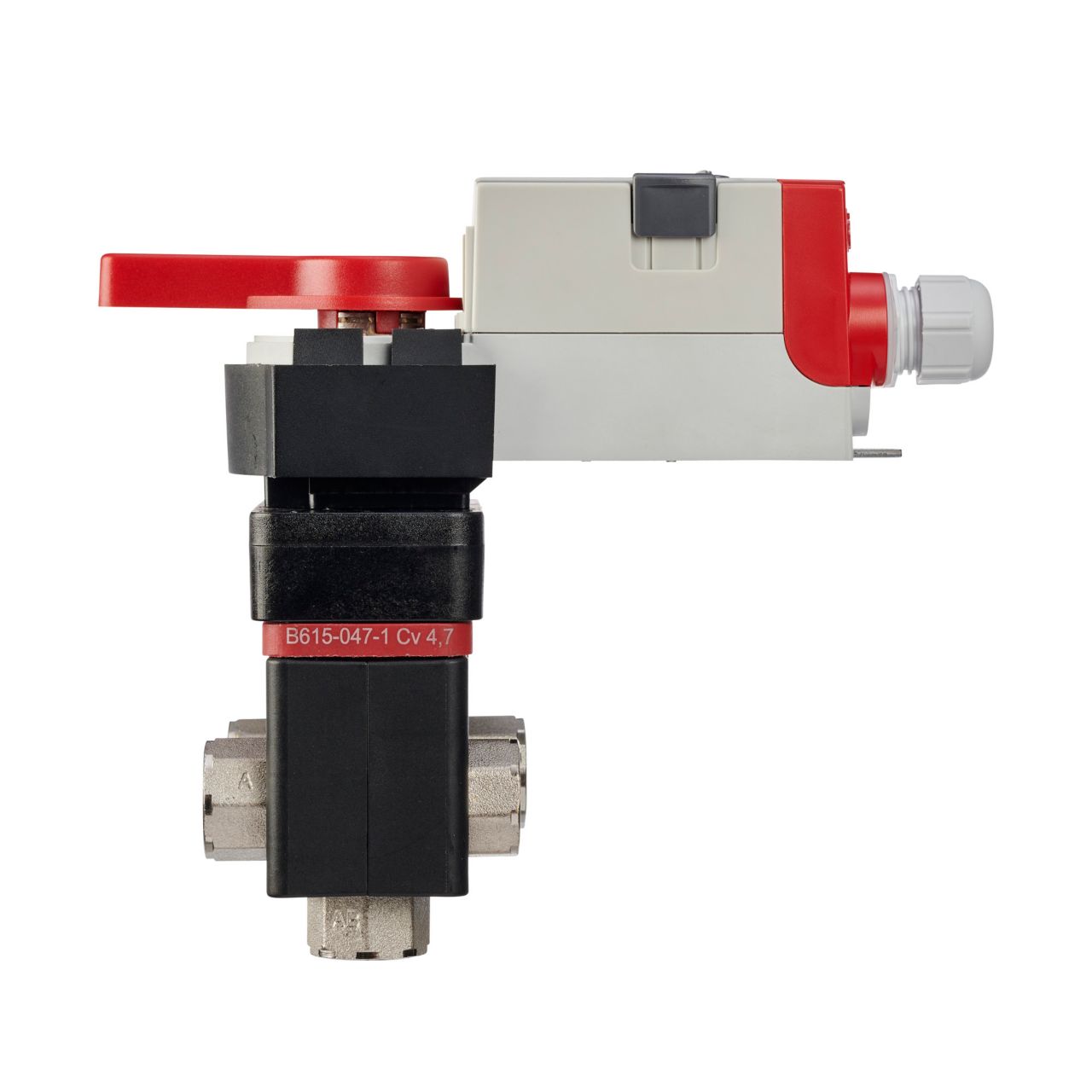

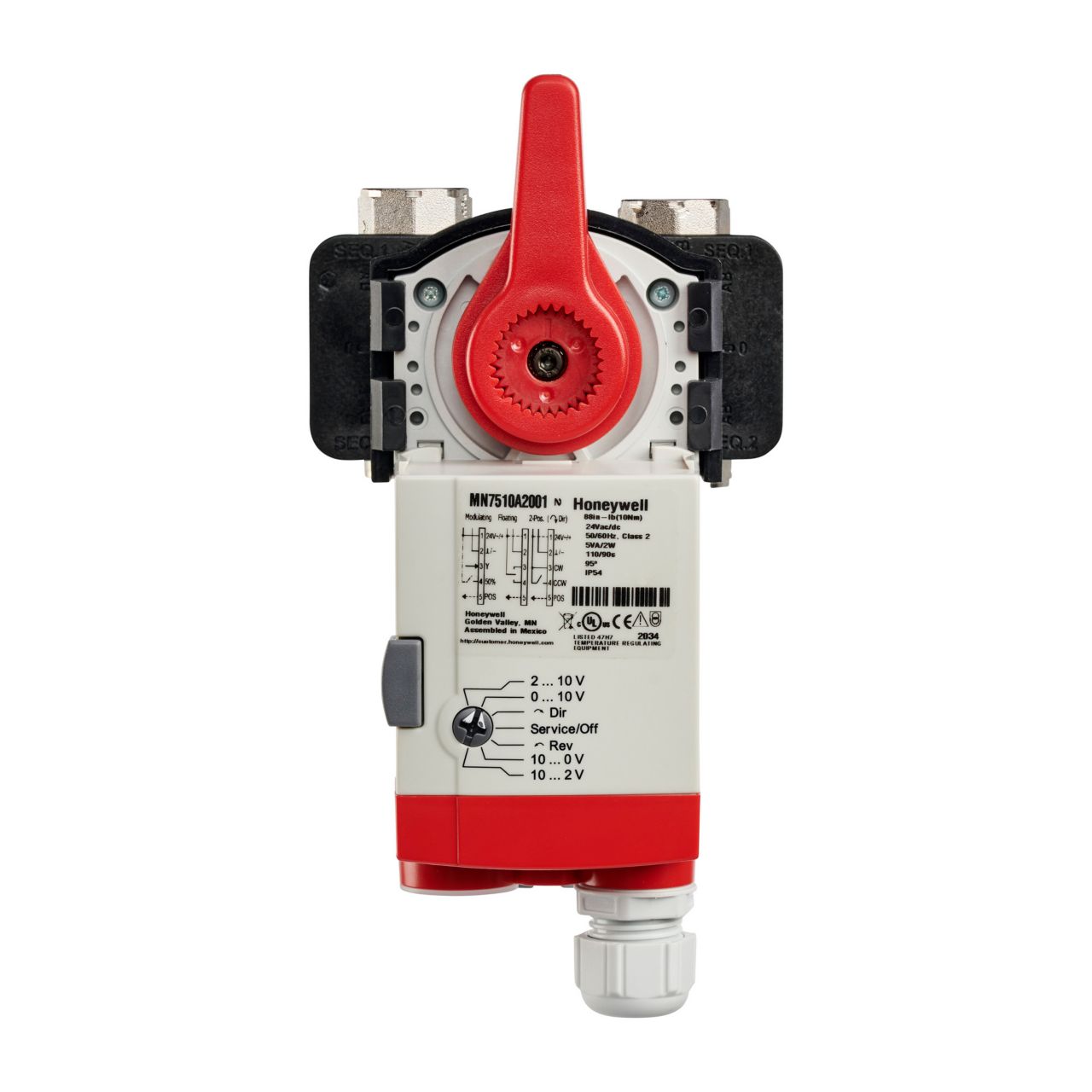

The Honeywell VB6A005+003+AL is a 6-way control valve assembly designed for closed loop systems. It integrates change-over and control valve functions using a single modulating actuator. This valve has a nickel-plated forged brass body and stainless steel ball and stem. It connects a single two-pipe heat exchanger to four-pipe systems. The actuator operates on twenty-four volts alternating current and is direct coupled without a spring return. It effectively controls both chilled and hot water.

• Valve body has a nickel-plated brass construction.
• Includes a direct coupled actuator.
• Designed for use with a single two-pipe heat exchanger to four-pipe systems.

Product Highlights

This valve ensures reliable operation in various heating and cooling systems, making it essential for HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VB6A005+003+AL
• Model: VB6VALVE
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F To 212 F (-18 C To 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: -5 F To 140 F (-20 C To 60 C)
• Electrical Connections: Field Wiring 14-22 AWG To Screw Terminals, Located Under The Removable Access Cover
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter (Shaft Coupling)
• Weight: 1.5 lbs
