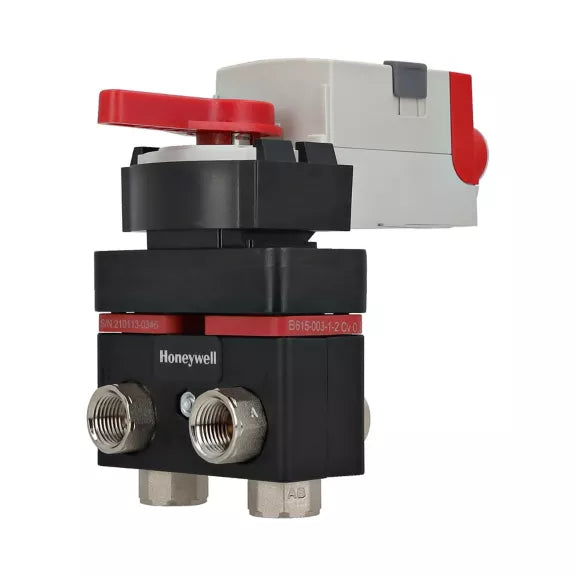

Honeywell VB6A003+030+AL VB6 Series 6-Way Control Ball Valve and Actuator

Product Description

The Honeywell VB6A003+030+AL is a 6-way control ball valve designed to manage change-over and control tasks in 4-pipe systems with a single modulating actuator. This product connects a single 2-pipe heat exchanger, rotating two mechanically linked balls to operate supply and return ports during one control sequence while keeping the other closed. This design prevents flow mixing and negates the need for a change-over valve, allowing the use of a single coil for both heating and cooling applications. It is ideal for chilled beam units, fan coil units, and small air handling coils.

• Nickel-plated brass body to minimize stress concentration
• Includes stainless steel balls and stems
• Comes with MN7510A2001 Modulating Actuator

Product Highlights

This valve enhances efficiency in heating and cooling systems while simplifying installation and functionality.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell

Technical Specifications

• Weight: 1.5 lbs
• Unit of Measurement: EA
• Production Status: Active
