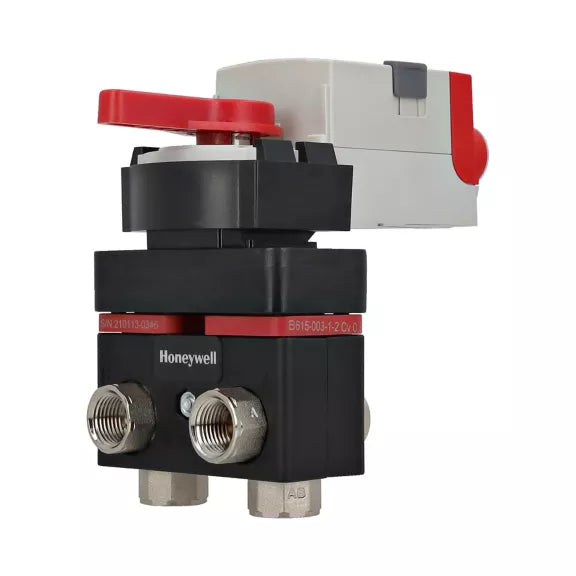

HONEYWELL VB6A003+005+AL VB6 6-Way Control Valve Assembly

Product Description

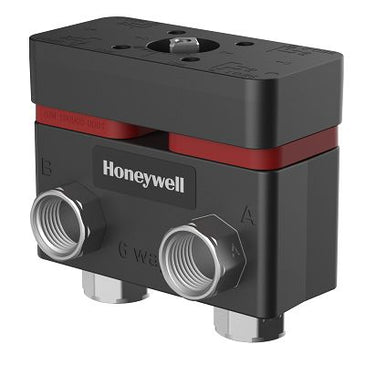

The Honeywell VB6A003+005+AL is a 6-way control valve assembly suitable for 4-pipe systems. It combines change-over and control valve functions into one design that utilizes a single modulating actuator. This valve features a nickel-plated forged brass body, ensuring durability and longevity in operation. It connects a single 2-pipe heat exchanger to 4-pipe systems, allowing for efficient control of chilled or hot water in closed loop systems.

• The valve has a 1/2 inch NPT connection for easy installation.
• The actuator provides 88 in-lb torque for reliable performance.
• It operates using 24 VAC power, ensuring compatibility with standard HVAC systems.

Product Highlights

This valve is ideal for system integrators and HVAC technicians focusing on advanced control applications in heating and cooling systems.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Manufacturer Part Number: VB6A003+005+AL
• Product Category: 6-Way Valves
• Service: Water, Glycol 60%
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F to 212 F (-18 C to 100 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 24 VAC
• Operating Temperature: -5 F to 140 F (-20 C to 60 C)
• Electrical Connections: Field Wiring 14-22 AWG to Screw Terminals
• Auxiliary Switches: Two SPDT
• Housing: Self-Centering Shaft Adapter
• Weight: 1.5 lbs
