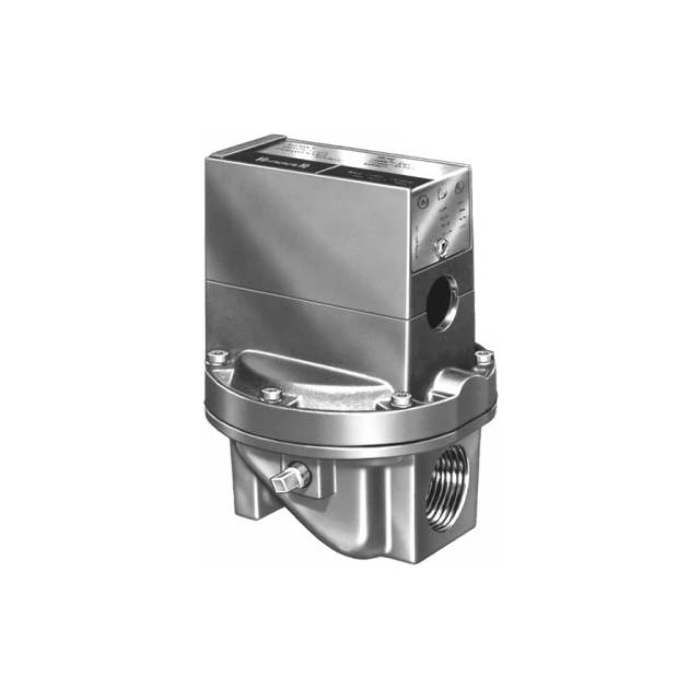

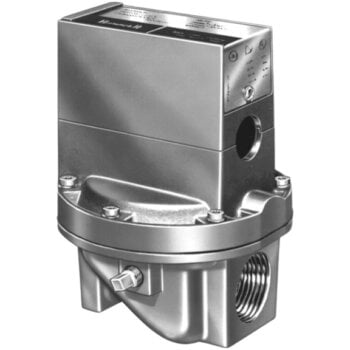

Honeywell V88J1006/U diaphragm gas valve 24 VAC 1 psi 1 in. NPT

Product Description

The HONEYWELL V88J1006/U is a 24 VAC, 1 psi diaphragm gas valve with a 1 inch NPT connection, designed for slow opening and fast closing. This straight-through body pattern valve is suitable for high-temperature applications, operating between 32 F and 150 F (0 C to 66 C). It is compatible with natural, manufactured, and LP gases, commonly used in atmospheric boilers, commercial water heaters, and rooftop heaters, offering a capacity of 1021 cfh.

• Closes firmly with a diaphragm that is both weight and spring loaded.
• Features a two-second maximum closing time.
• Closes on power failure, recommended for final shutoff service.

Product Highlights

Designed for high-temperature environments, this valve is rated for 150°F (66°C) ambient temperature and is compatible with natural, manufactured, and LP gases.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: V88J1006/U

Technical Specifications

• Capacity: 1021 cfh
• Gas Type: Natural, Manufactured, And LP
• Body Pattern: Straight-Through
• Operating Temperature: 32 F To 150 F (0 C To 66 C)
• Connection Size: 1 in.
• Connection Type: NPT
• Input Voltage: 24 VAC
• Max Operating Pressure: 1 psi
• Valve Type: Diaphragm Gas Valve
