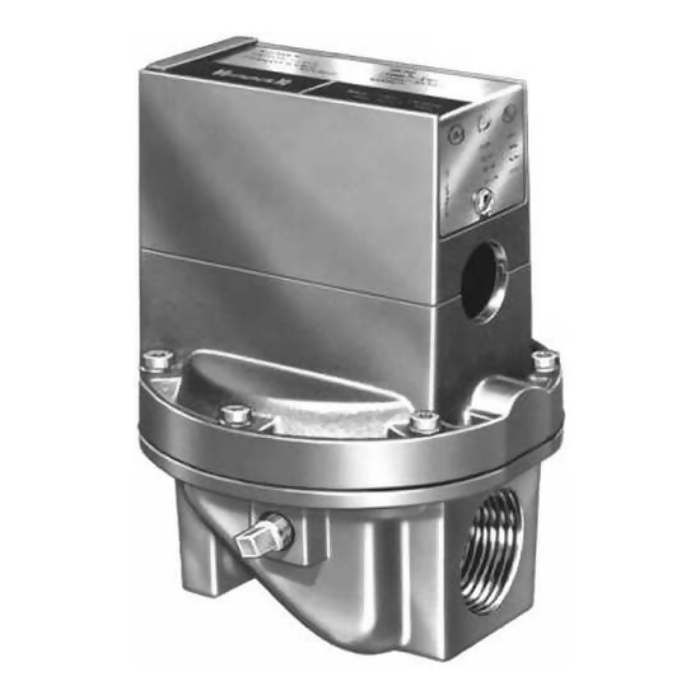

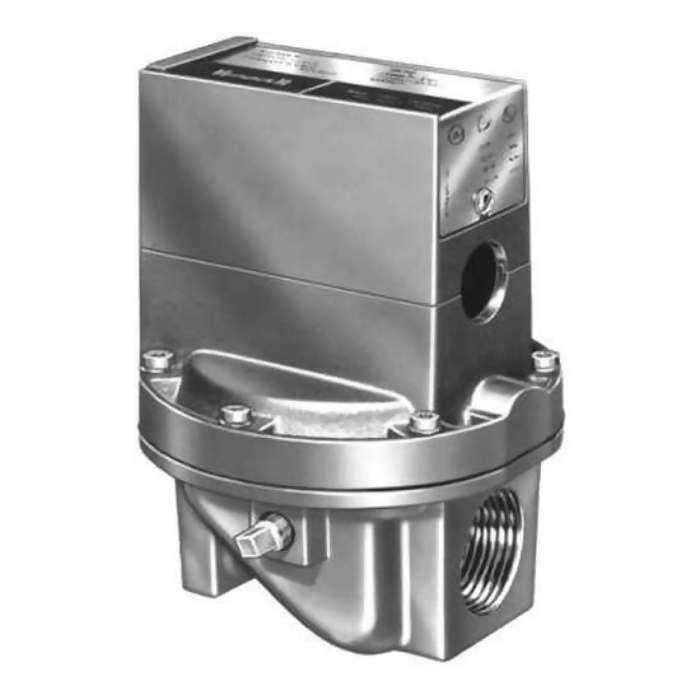

Honeywell V88A1683/U diaphragm gas valve 24 VAC 1-1/4 in. NPT

Product Description

The Honeywell V88A1683/U is a diaphragm gas valve designed for slow opening and fast closing, operating at 24 VAC with a maximum pressure of 1 PSI. It closes firmly with a weight and spring-loaded diaphragm, ensuring a two-second maximum closing time. This valve closes on power failure, making it suitable for final shutoff service in applications like atmospheric boilers, commercial water heaters, and rooftop heaters. It handles natural, manufactured, and LP gases.

• Closes firmly with a weight and spring-loaded diaphragm.
• Features a two-second maximum closing time.
• Closes on power failure, recommended for final shutoff service.

Product Highlights

Provides slow opening and fast closing for on/off gas flow control.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: V88A1683/U

Technical Specifications

• Capacity: 2100 cfh
• Gas Type: Natural, Manufactured, And LP
• Body Pattern: Straight-Through
• Operating Temperature: 32 F To 125 F (0 C To 52 C)
• Valve Size: 1 1/4 Inch
• Input Voltage: 24V
• Max Operating Pressure: 1 PSI
• Valve Type: Diaphragm Gas Valve
• Application: Gas Safety Shutoff
• Series: V88A
• Compatibility: Gas Trains
• Connection Type: NPT Threaded
