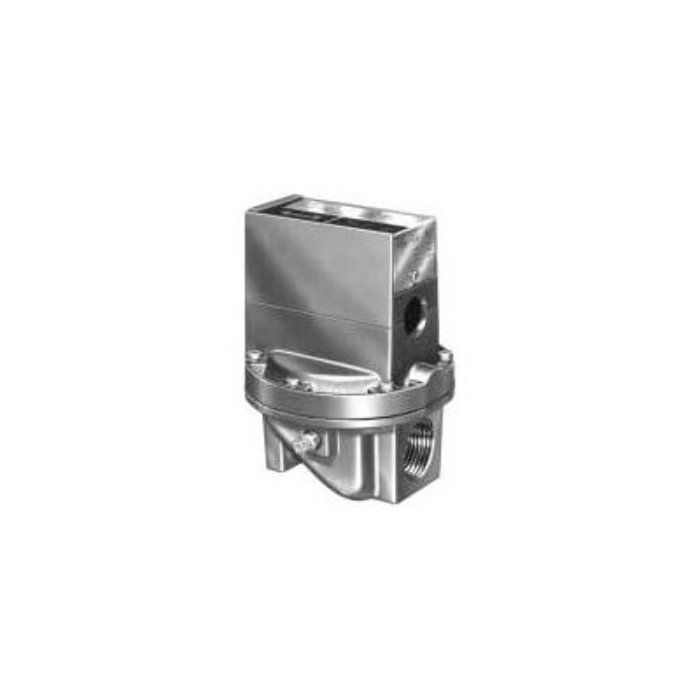

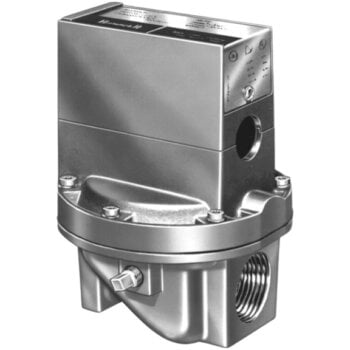

Honeywell V88A1675/U diaphragm gas valve 24 VAC 1 in. NPT

Product Description

The HONEYWELL V88A1675/U is a diaphragm gas valve designed for slow opening and fast closing operations. It operates on 24 VAC and handles a maximum operating pressure of 1 psi. This solenoid-operated valve is suitable for natural, manufactured, and LP gases, making it ideal for applications in atmospheric boilers, commercial water heaters, and rooftop heaters. It features a straight-through body pattern and a capacity of 1021 cfh.

• Closes firmly with a diaphragm that is both weight and spring loaded
• Features a two-second maximum closing time for efficient operation
• Valve closes on power failure, recommended for final shutoff service

Product Highlights

Solenoid-operated diaphragm gas valve with slow opening, fast closing, and power failure shutoff.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: V88A1675/U

Technical Specifications

• Capacity: 1021 cfh
• Gas Type: Natural, Manufactured, And LP
• Body Pattern: Straight-Through
• Operating Temperature: 32 F To 125 F (0 C To 52 C)
• Valve Size: 1 Inch
• Voltage: 24 VAC
• Max Operating Pressure: 1 psi
