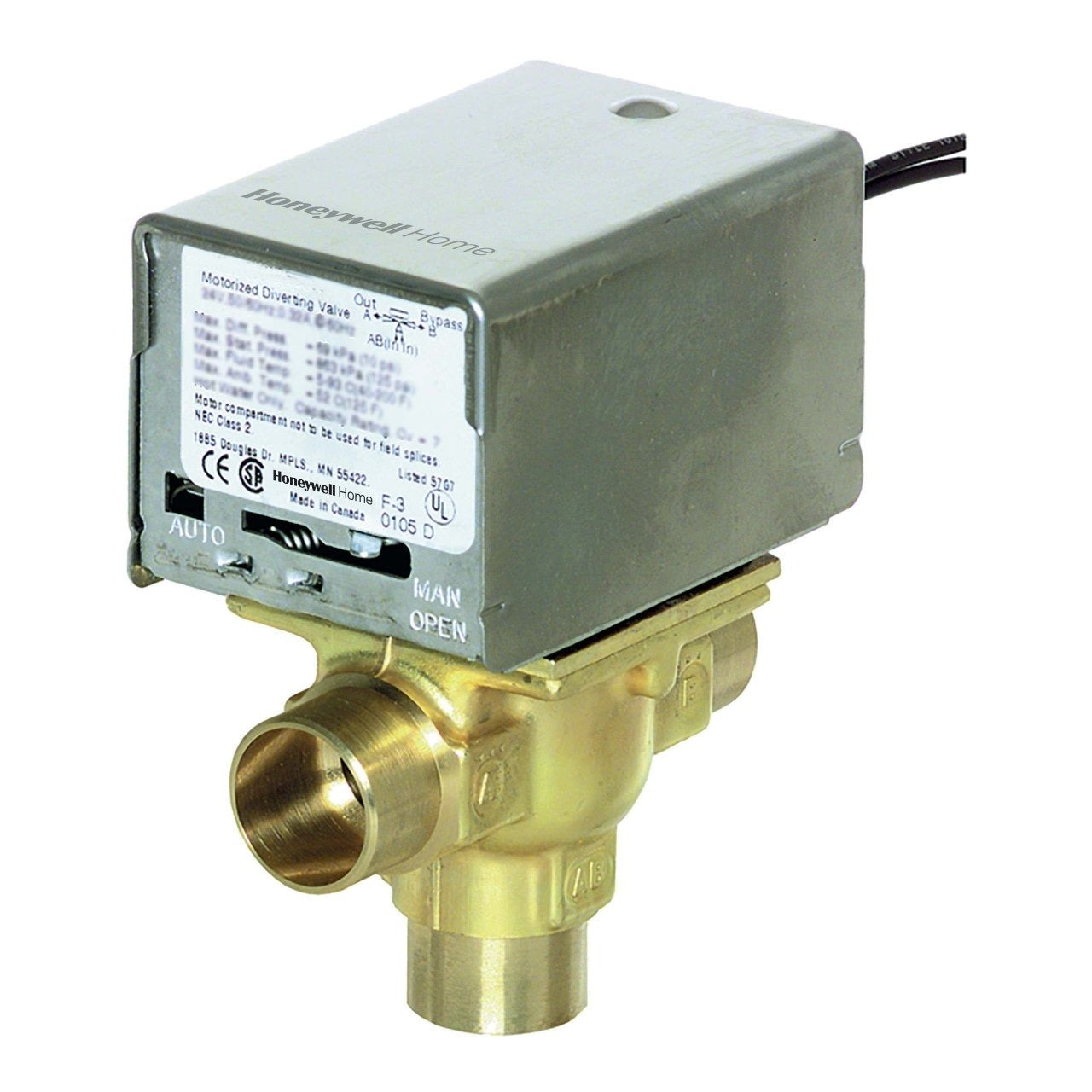

RESIDEO Resideo V8044A1143/U 24 Vac 3/4 in N.C. QuickFit Zone Valve (HONE-V8044A1143/U)
RESIDEO Resideo V8044A1143/U 24 Vac 3/4 in N.C. QuickFit Zone Valve (HONE-V8044A1143/U)

Resideo V8044A1143/U 24 Vac 3/4 in N.C. QuickFit Zone Valve (HONE-V8044A1143/U)

Brand: RESIDEO
SKU: V8044A1143/U
Availability: In Stock

Ships same day if ordered by 12 pm
$142.69
$142.69
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

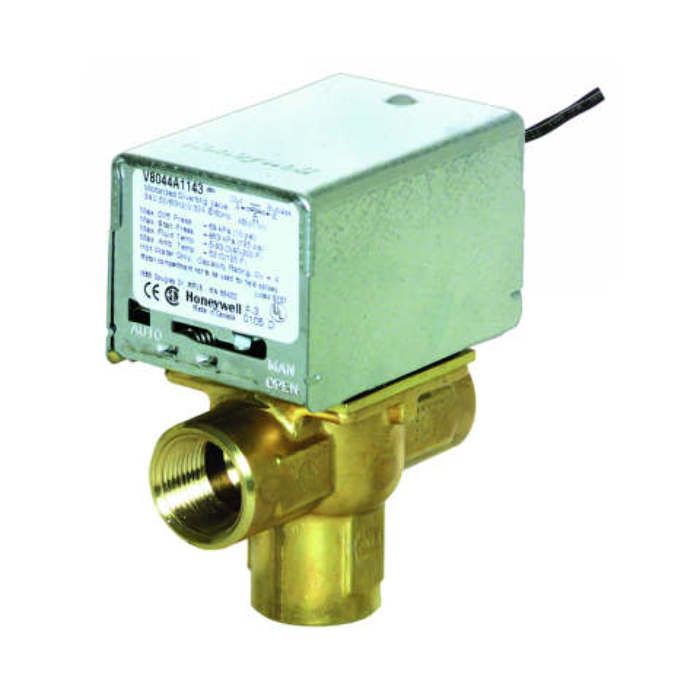

Resideo V8044A1143/U is a 24 Vac two-position diverting zone valve assembly designed for hydronic control. The unit combines an actuator and three-way valve body with a spring-return actuator and manual opener for operation during power loss. It provides a nominal open time of 30 seconds, Cv = 4, static pressure rating 125 psi, and 18-inch electrical leads for connection to low-voltage controls.

  • 24 Vac two-position actuator with spring return, nominal open ~30 seconds; power consumption 7.7 VA, current draw 0.32 A
  • Three-way diverting body (Port A normally closed) with flow coefficient Cv = 4 and maximum differential close-off 20 psi
  • Manual opener for operation during power failure; powerhead removable without breaking plumbing connections; brass body and stainless steel stem

Product Highlights

Three-way 24 Vac diverting zone valve with spring-return actuator and manual opener

Product Information

Standard Information

  • Brand: RESIDEO
  • Manufacturer Part Number: V8044A1143/U
Technical Specifications
Brand
Resideo
MPN
V8044A1143/U
Part Number
HONE-V8044A1143/U
Product Family
V8044 1000 Series
Product Type
Diverting zone valve
Application
Hydronic control
Input Voltage
24 Vac
Frequency
50 Hz; 60 Hz
Power Consumption
7.7 VA
Output Current
0.32 A
Actuation
Two-position, spring return
Valve Type
Zone valve
Body Pattern
Three-way, diverting
De-energized Position
Port A normally closed
Pipe Size
3/4 in (DN20)
Connection Type
MIP
Electrical Connections
18 in (457 mm) leads
Timing (Nominal Open)
30 sec
Capacity (Cv)
4 Cv
Capacity (Kv)
3.4 Kv
Maximum Differential Pressure (Close-off)
20 psi (138 kPa)
Static Pressure Rating
125 psi (862 kPa)
Fluid Temperature Range
40 F to 200 F (5 C to 93 C)
Ambient Temperature Range
Up to 125 F (52 C)
Operating Humidity Range
5 to 95% relative humidity, non-condensing
Materials (Body)
Brass
Materials (Seat)
Brass
Materials (Stem)
Stainless steel
Materials (Plug/Ball)
Buna-N (NBR) rubber ball
Materials (Packing)
EPDM rubber
Manual Opener
Yes
Includes
Manual opener
Approvals (UL)
UL Listed: File MH11826
Approvals (CSA)
CSA Certified: File 1322
Dimensions (in)
4 7/8 in high x 3 23/32 in wide x 2 3/8 in deep
Dimensions (mm)
124 mm high x 94 mm wide x 60 mm deep
Comments
Designed for closed-loop hydronic systems without dissolved oxygen; intended for cycling applications
