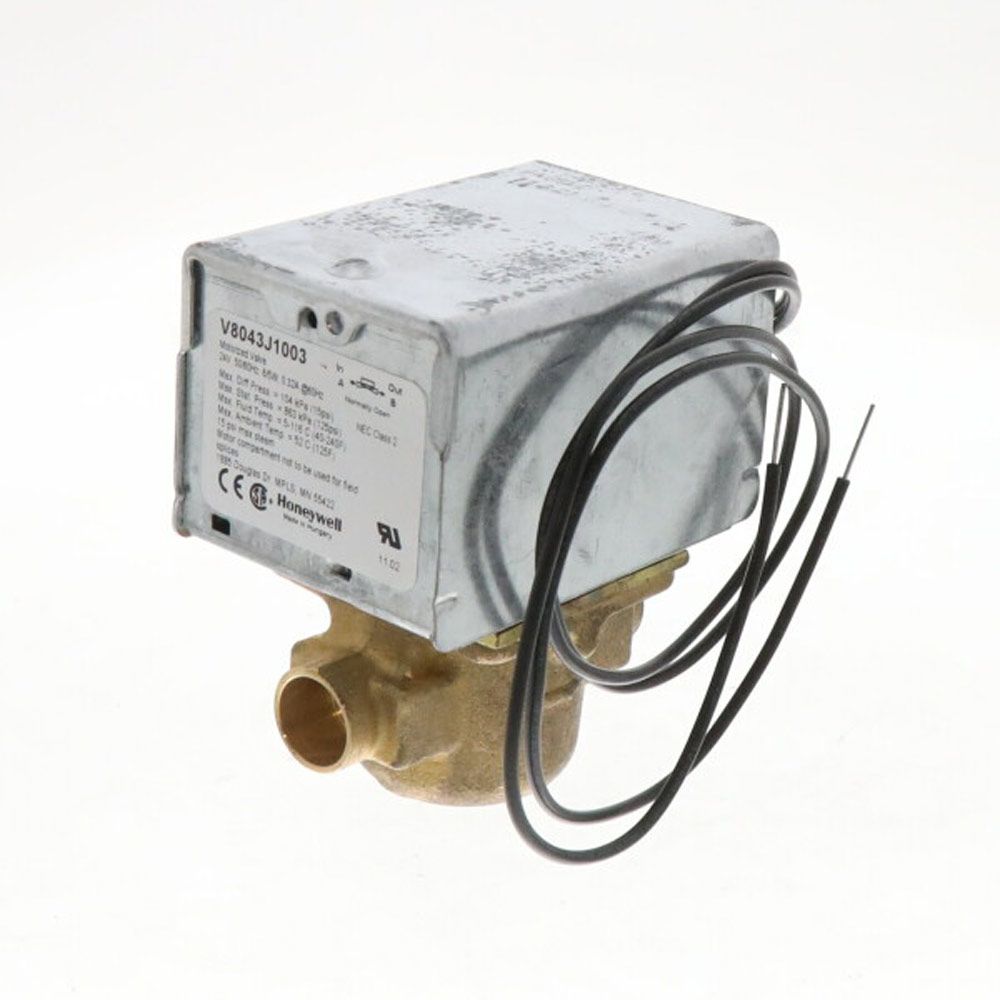

Honeywell V8043J1003 Two-Position Normally Open Zone Valve 24V 1/2 Sweat

Product Description

The Honeywell V8043J1003 is a 24 volt zone valve designed for hot water systems. It features a one-half inch sweat connection and operates in a normally-closed position. This valve is rated for eight Cv and a maximum pressure of eight psi close-off. With a maximum operational temperature of two hundred degrees Fahrenheit, it is suitable for various heating applications.

• Two-position, normally closed operation
• One-half inch sweat connection type
• Quick installation without disassembly

Product Highlights

This valve offers efficient control of hot water flow in heating systems. It simplifies installation, allowing for replacement of the powerhead without draining the system. A manual opener is included for emergency operation in case of power failure, reverting to automatic mode once power is restored.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V8043J1003

Technical Specifications

• Model: V8043J
• Valve Size: 1/2 inch
• Valve Connection: Sweat
• Piping Configuration: Straight
• Body Material: Brass
• Valve Application: Water
• Max Pressure: 125 psi WOG
• Weight: 2.50 lbs
