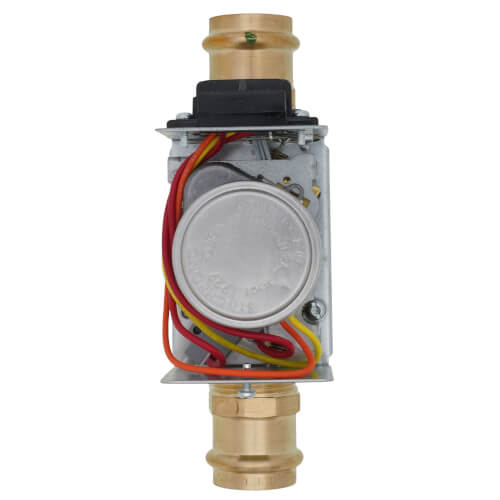

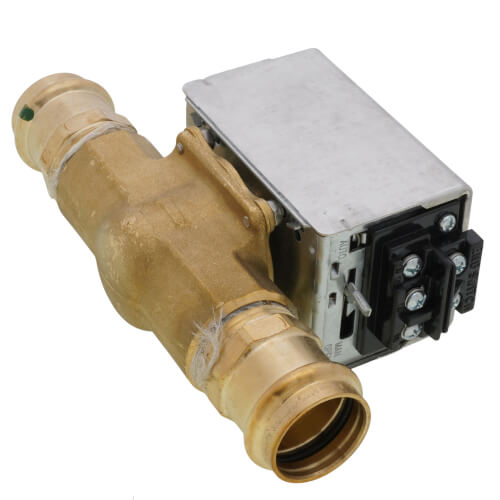

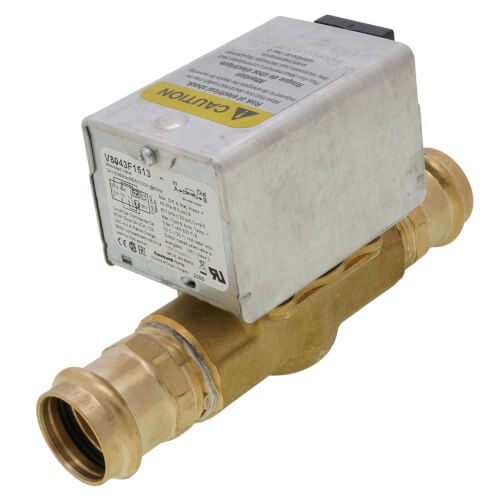

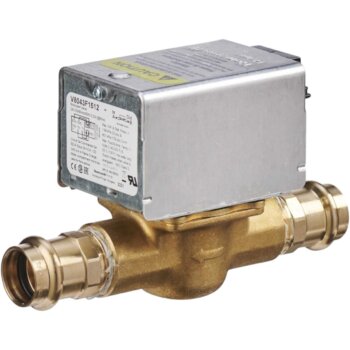

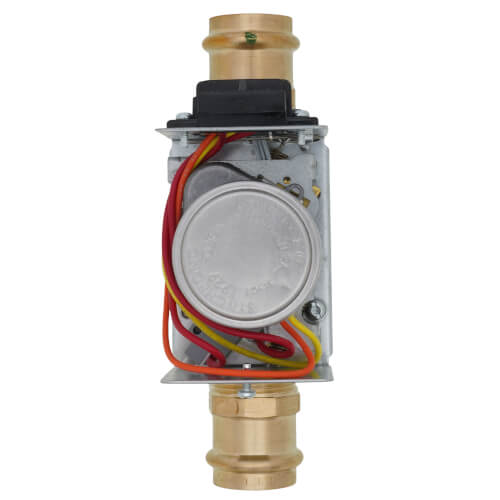

Honeywell V8043F1513 Zone Valve, 1-inch ProPress, with End Switch

Product Description

The Honeywell V8043F1513 is a two-way zone valve. It is designed for controlling hot or cold water flow. The valve includes an actuator motor and a valve assembly. The ProPress connection type makes installation simple and effective.

• Features two-position, straight-through control.
• Includes an end switch for auxiliary equipment connection.
• Suitable for baseboard radiators and convectors.

Product Highlights

Ideal for hydronic control systems and efficient zoning applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Application: Hydronic Control, Zoning
• Valve Type: Zone Valve
• Body Pattern: Two-way, Straight-through
• Connection Type: Pro Press
• Pipe Size (inch): 1 inch
• Input Voltage: 24 Vac
• Power Consumption: 7.7 VA
• Current Draw: 0.32A
• Fluid Temperature (F): 40 F to 200 F
• Ambient Temperature Range (F): 125 F Maximum
• Static Pressure Rating (psi): 120 PSI
• Valve Action: Spring return to close
• End Switch: Yes
• Materials (Body): Brass
• Dimensions (in.): 4 inches high x 2 3/8 inches wide x 6 7/8 inches
• Weight: 2.7 lbs
