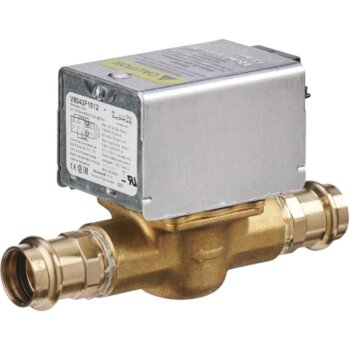

HONEYWELL V8043F1511/U Zone Valve, 24V, 1/2 in. Pro Press

Product Description

The Honeywell V8043F1511/U is a two-way zone valve designed for low voltage control in hydronic systems. It manages the flow of hot or cold water or steam. This valve combines an actuator and valve assembly for efficient operation. The spring return feature allows the valve to close when power is lost, and it includes a manual opener for use during power outages, automatically resuming control when power is restored.

• Two-position straight-through control of fluids.
• Pro Press connection designed for reliable installations.
• End switch included for additional equipment sequencing.

Product Highlights

This valve offers innovative solutions for hydronic applications, supporting reliable operation even in adverse conditions.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: V8043F1511/U

Technical Specifications

• Valve Type: Zone Valve
• Actuation: Two position
• Body Pattern: Two-way, Straight-through
• Connection Type: Pro Press
• Pipe Size: 1/2 inch
• Voltage: 24 Vac
• Power Consumption: 7.7 VA
• Current Draw: 0.32A
• Fluid Temperature Range: 40 F to 200 F
• Ambient Temperature Range: 125 F Maximum
• Weight: 2.6 lbs
• Dimensions: 4 inches high x 2 3/8 inches wide x 13/32 inches long
• Approvals: UL Listed, CSA Certified
