Honeywell V8043E5020/U Zone Valve, 2 Way, 1 in., 3.5 Cv

Product Description

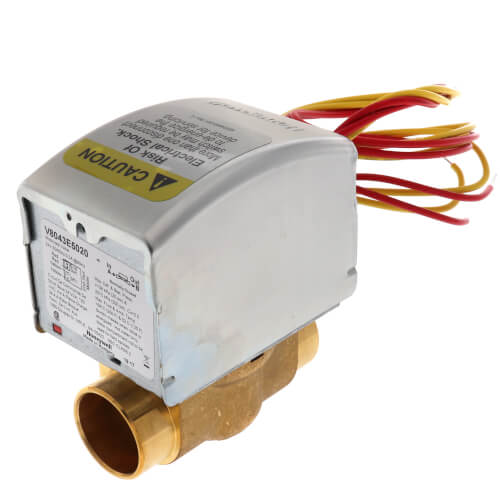

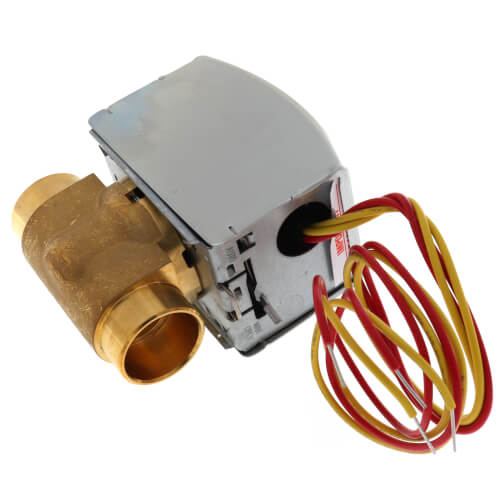

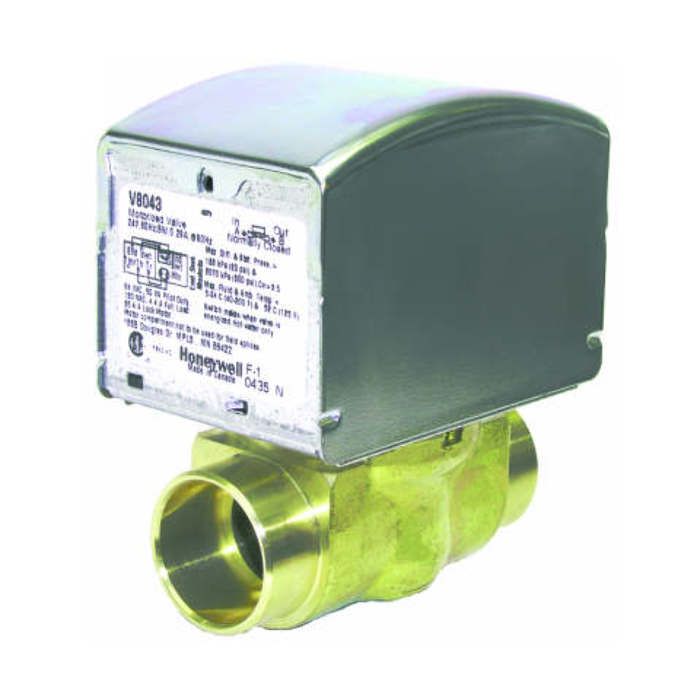

The HONEYWELL V8043E5020/U zone valve is a two-way on-off low voltage valve consisting of an actuator and valve assembly designed for controlling the flow of hot water. It features a brass body, stainless steel stem, and brass seat. This valve is suitable for use in closed loop hydronic systems. The valve has a 3.5 Cv capacity and a 1" nominal size.

• All models may be installed without disassembling the valve.
• Compact construction for easy installation.

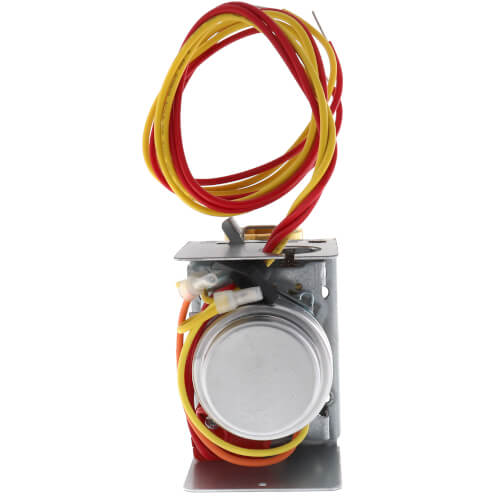

• Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.

Product Highlights

This zone valve offers easy installation and powerhead replacement without breaking plumbing lines. It includes a manual opener for valve operation during power failures.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: V8043E5020/U
• Country of Origin: Import

Technical Specifications

• Service: Hot Water
• Close-Off Pressure: 20 psi
• Operating Conditions: 50 F To 200 F (10 C To 93 C)
• Application: Zoning
• Connection Type: Sweat
• Pipe Size: 1"
• Body Pattern: 2-Way Straight-Through
• Capacity: 3.5 Cv
• De-Energized Position: Normally Closed
• Fluid Temperature Range: 200 F Max.
• Electrical Connections: 18 in. leads
• Power Consumption: 7.2 VA
• Nominal Timing (sec, min): 15 Seconds
• Valve Action: Spring Return to Close
• Maximum Ambient Temperature (F): 125F
• Auxiliary End Switch: SPST
• End Switch Rating: 50 VA pilot duty @ 24 V
• Type: 2-Way Straight-Through
• Static Pressure: 300 psi
• Voltage: 24V
• Frequency: 60 Hz
• Manual Opener: Yes
• Size: 1"
• Material: Brass
• Position: Normally Closed
• Flow Capacity (Cv): 3.5
• Wiring: 18" Leads
• Hertz: 60
• Max Ambient Temp (°F): 125°F
• Max Close-Off PSI: 20 psi
• Min Temp (F): 40°F
• Max Temp (F): 200°F
• Temperature Range (F): 40°F - 200°F
• End Switch: Yes
• Coefficient of Volume: 3.5 Cv
• Nominal Size: 1 in
• Voltage Rating: 24 V
• Water Temperature: 50 to 200 degF
• Amperage Rating: 0.32 A
• Series: V8043
