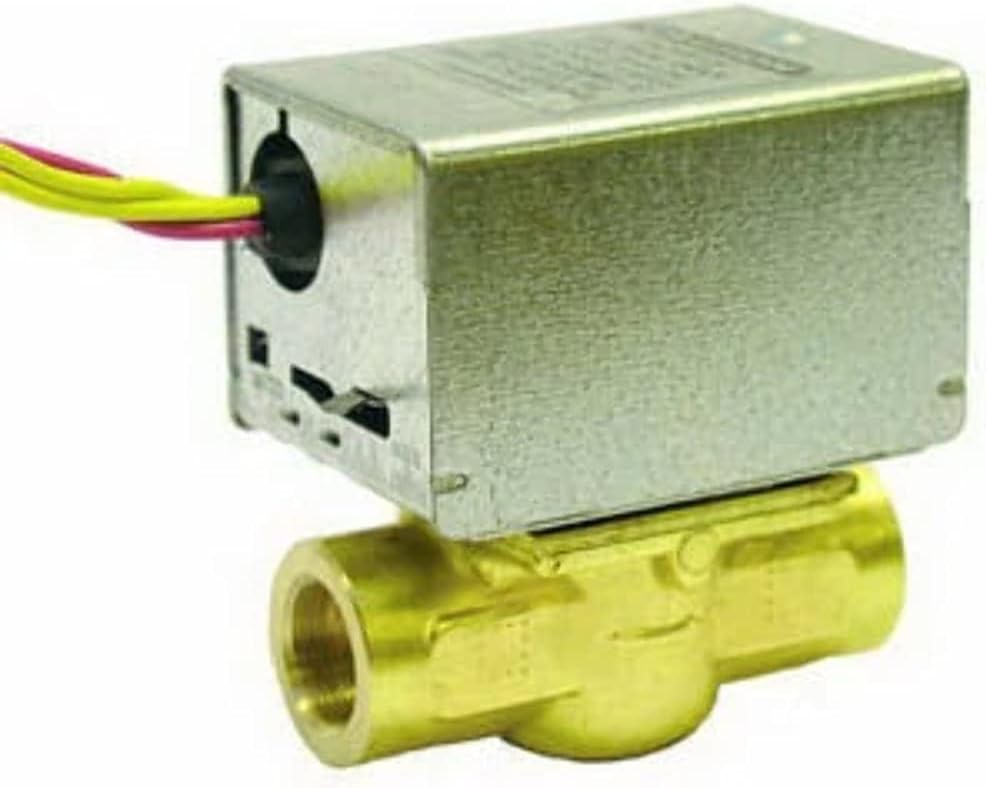

Honeywell V8043E1145 Zone Valve 24V 3/4 Inch Brass Stainless Steel

Product Description

The Honeywell V8043E1145 is a robust 3/4 inch two-position normally closed zone valve designed for hydronic systems. Equipped with a brass body and featuring both brass and stainless steel internal components, this valve is engineered for durability and reliability. Designed to handle fluid temperatures from 50 to 200 degrees Fahrenheit, this valve meets all CE standards.

• 24V operation compatible with most systems
• Manual override feature for operation during power interruptions
• Compact design for easy installation in tight spaces

Product Highlights

This zone valve features quiet and efficient operation with a quick 15-second cycle time for opening and closing, making it an excellent choice for residential and light commercial applications. It is designed for use with hot water and is equipped with a spring-return mechanism which ensures reliable performance.

Product Information

Standard Information

• MPN: V8043E1145
• Brand: Honeywell

Technical Specifications

• Material: Brass body and seat, Stainless steel stem, Buna-N
• Operating Voltage: 24V AC at 60 Hz
• Pressure Rating: 125 psi static
• Connection: Threaded x threaded end
• Size: 3/4 inch
• Temperature Rating: 50 to 200 degrees Fahrenheit
• Actuation Type: Electric, two-position
