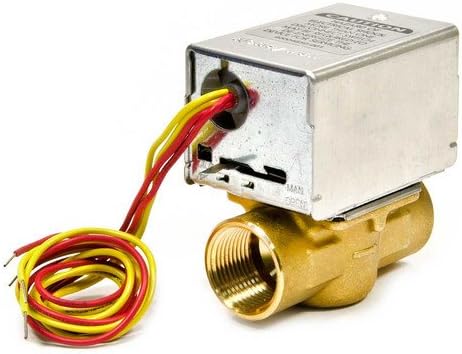

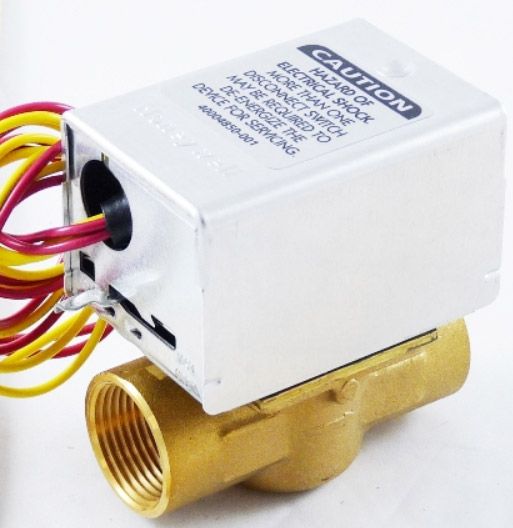

Honeywell V8043E1137 24V Zone Valve 1 NPT Auxiliary Switch

Product Description

The Honeywell V8043E1137 24V Zone Valve is a dependable and efficient zone valve designed for controlling hot water flow. This model features a 1 inch NPT connection and is normally closed. It is capable of handling a maximum water temperature of 200 degrees Fahrenheit.

• 24V zone valve for hot water control
• 1 inch NPT connection
• Normally closed position

Product Highlights

This Honeywell valve is built with a brass body and includes an actuator and valve assembly. It features a manual opener for emergency operation, which resets automatically. The powerhead can be removed for maintenance without draining the system.

Product Information

Standard Information

• Brand: Honeywell
• Model: V8043E
• MPN: V8043E1137
• Body Material: Brass

Technical Specifications

• Valve Size: 1 inch
• Valve Connection: NPT
• Max Pressure: 125 psi WOG
• Energy Source: 24V
• Maximum Water Temperature: 200 degrees Fahrenheit
• Weight: 2.65 pounds
