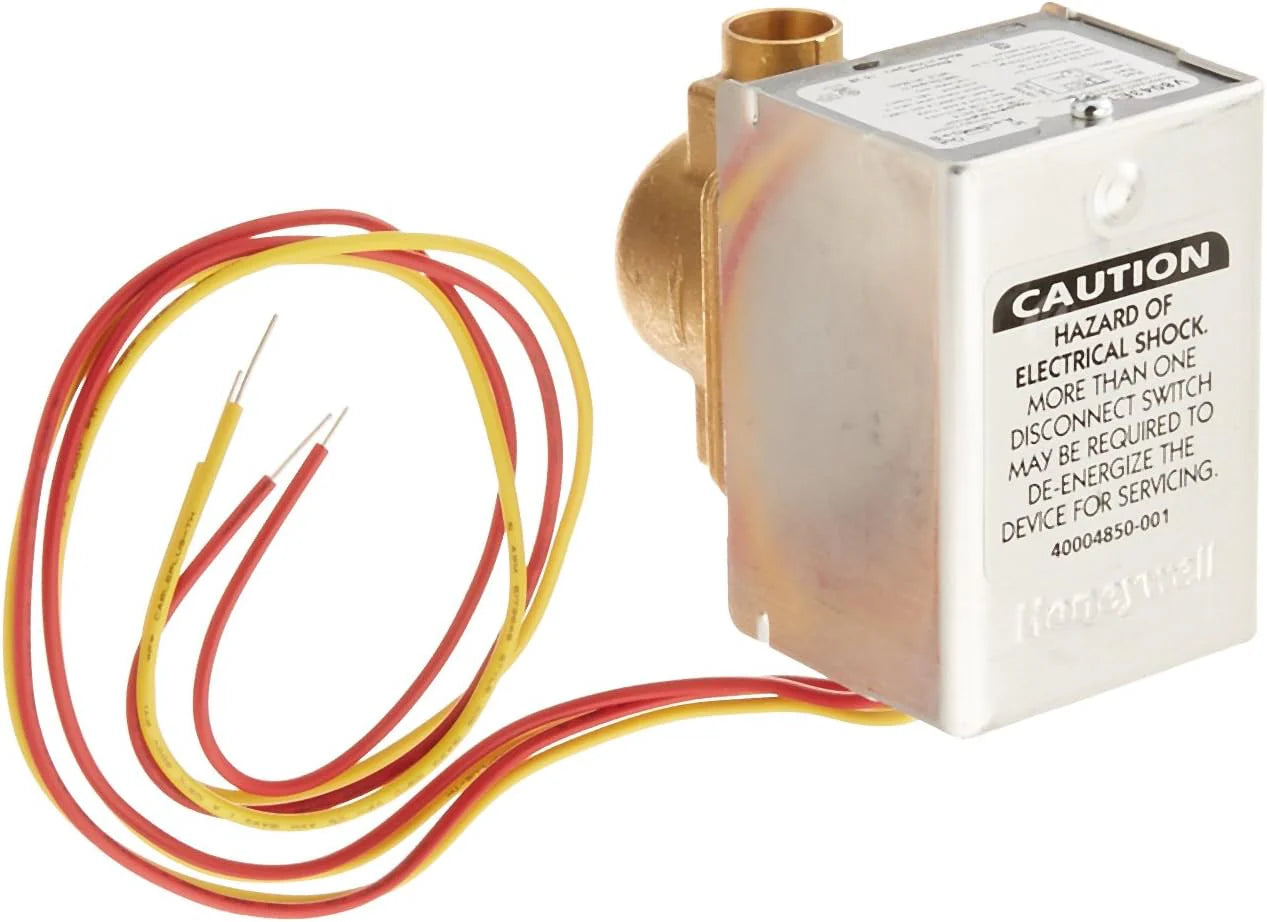

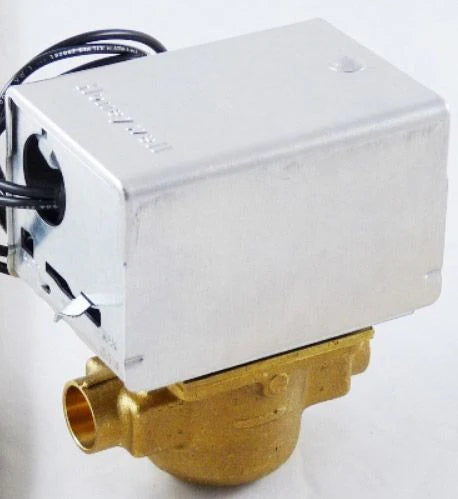

Honeywell V8043E1004 Electric Zone Valve 1/2 Inch

Product Description

The Honeywell V8043E1004 Electric Zone Valve is designed for controlling the flow of hot or cold water. This valve includes an actuator motor and a valve assembly. It is suitable for hydronic heating systems.

• Compact construction for easy installation
• Two-wire thermostat control with end switch
• Two-way, straight-through valve body, normally closed

Product Highlights

This Honeywell zone valve helps manage water flow effectively in heating systems. It has a compact design which simplifies installation and maintenance. The valve can be installed without disassembling its parts.

Product Information

Standard Information

• Brand: Honeywell
• Model: V8043E1004
• UPC: 085267990035
• Certification: UL Listed

Technical Specifications

• Type: 2-Way, Normally Closed, Straight-Through
• Series: V8043
• Material: Brass Body/Seat, Stainless Steel Trim
• End Style: Sweat
• Dimensions: 4 inches H x 3-1/2 inches W x 2-3/8 inches D
• Nominal Size: 1/2 Inch
• Voltage Rating: 24 VAC, 50/60 Hz
• Amperage Rating: 0.32 A
• Pressure Rating: 125 psi
• Water Temperature: 125 deg F
• Coefficient of Volume: 3.5 Cv
• Electrical Connection: 18 Inch Leads
• Time Cycle: 15 sec Open
• Differential: 125 psi
• Country of Origin: United States
