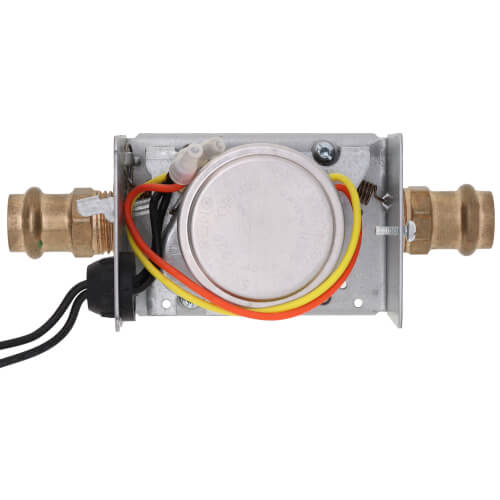

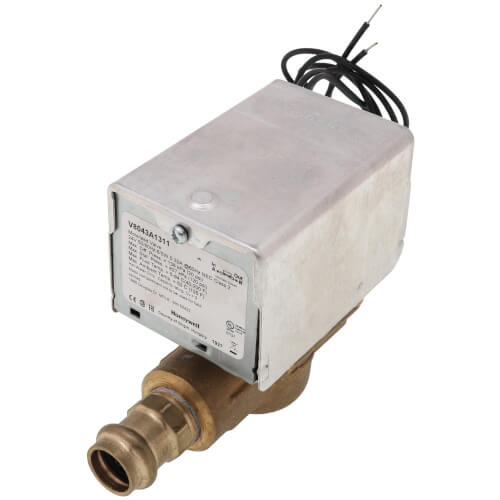

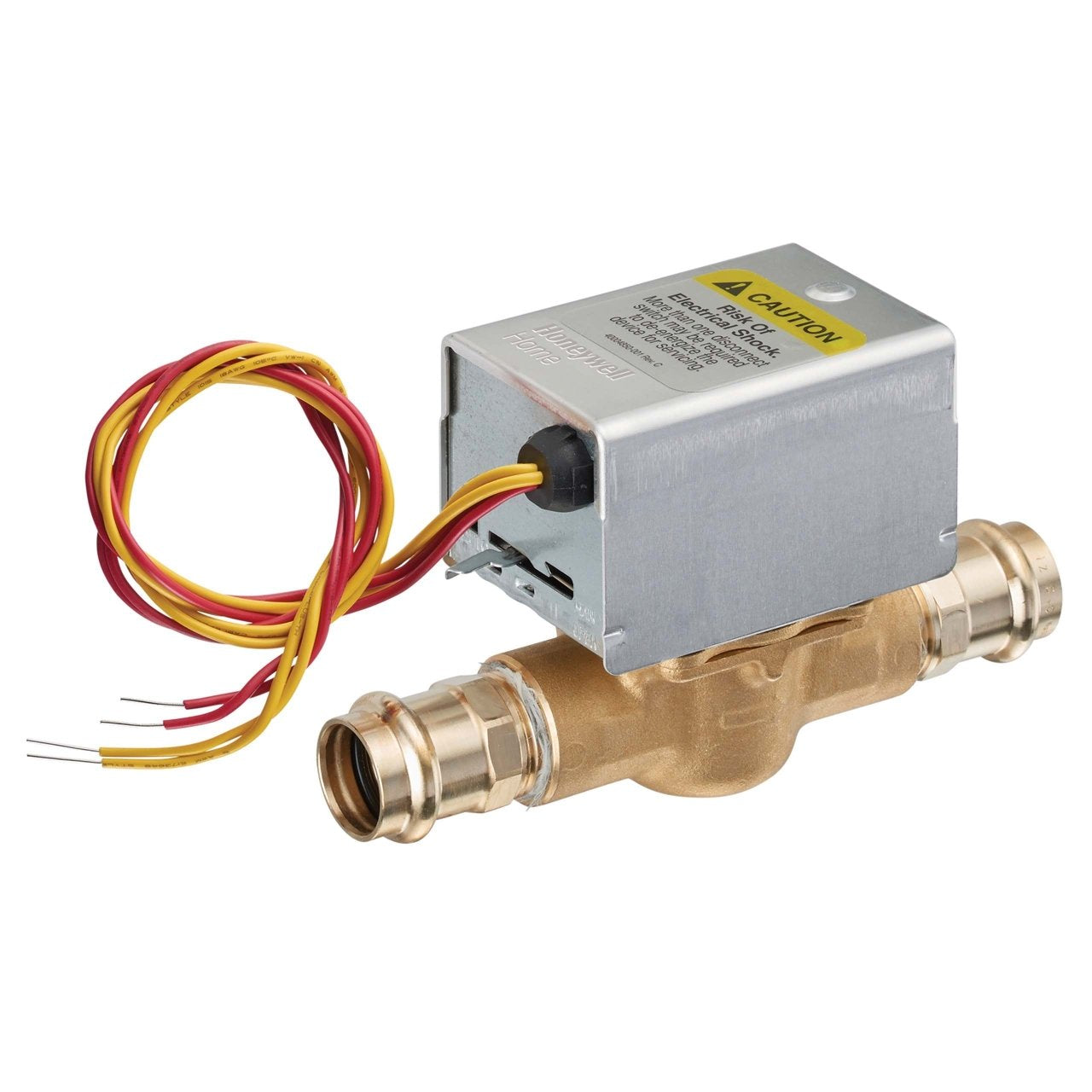

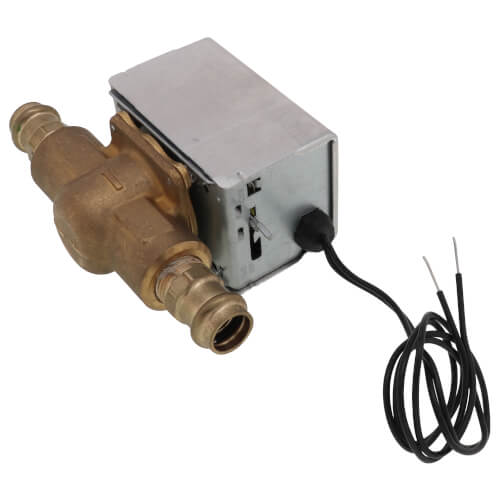

Honeywell V8043A1311/U 1/2-Inch ProPress Zone Valve

Product Description

The Honeywell V8043A1311/U is a zone valve designed to control hot and cold water flow in closed loop hydronic systems. This valve provides two-position control for the supply water, fitting applications such as fan coil units. The ProPress connection allows for an easy installation.

• Two-position, straight-through control.
• Suitable for hot or cold water systems.
• ProPress connection for simple setup.

Product Highlights

Product Information

Standard Information

• Application: Zoning
• Size: 1/2 inches

Technical Specifications

• Body Pattern: Straight-Through 2-Way
• Flow Capacity (Cv): 3
• Connection Type: ProPress
• Max Close-Off PSI: 20 psi
• Max Temp (F): 200°F
• Min Temp (F): 40°F
• Voltage: 24V
• Position: Normally Closed
• Temperature Range (F): 40°F - 200°F
• Nominal Timing: 15 Seconds
• Static Pressure: 120 psi
• Wiring: 18 Leads
