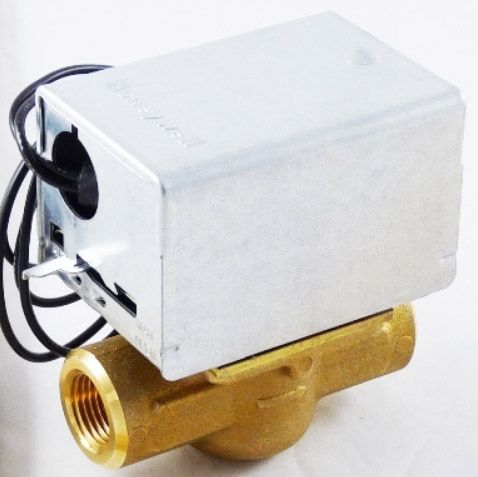

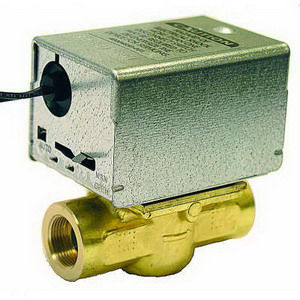

Honeywell V8043A1227 Zone Valve 24VAC 1/2 Inch MPT 125 psi

Product Description

The Honeywell V8043A1227 Zone Valve is a reliable solution for hydronic control systems. This valve operates on 24VAC and features a 1/2 inch MPT connection. Rated at 125 psi, it is designed for straight-through, normally closed applications.

• Easy installation without disassembling the valve
• Manual opener for valve operation during power failure
• Compact construction for space-saving installation

Product Highlights

The Honeywell V8043A1227 Zone Valve is ideal for controlling the flow of hot water in hydronic systems. It features a brass body and stainless steel trim for durability, and it can be installed without disassembling the valve.

Product Information

Standard Information

• Application: Hydronic Control
• Standards/Approvals: UL MH11826

Technical Specifications

• MPN: V8043A1227
• Brand: Honeywell
• Series: V8043
• Type: 2-Way, Normally Closed, Straight-Through
• Material: Brass Body/Seat, Stainless Steel Trim
• End Style: MPT
• Dimensions: 4 Inch H x 3-23/32 Inch W x 2-3/8 Inch D
• Time Cycle: 15 sec Open
• Differential: 125 psi
• Nominal Size: 1/2 Inch
• Voltage Rating: 24 VAC, 50/60 Hz
• Amperage Rating: 0.32 A
• Pressure Rating: 125 psi
• Water Temperature: 125 deg F
• Coefficient of Volume: 3.5 Cv
• Electrical Connection: 18 Inch Leads
• Weight: 2.10
• Valve Connection: NPT
• Piping Configuration: Straight
• Maximum Pressure: 125 psi WOG
• Valve Application: Water
• Country of Origin: United States
