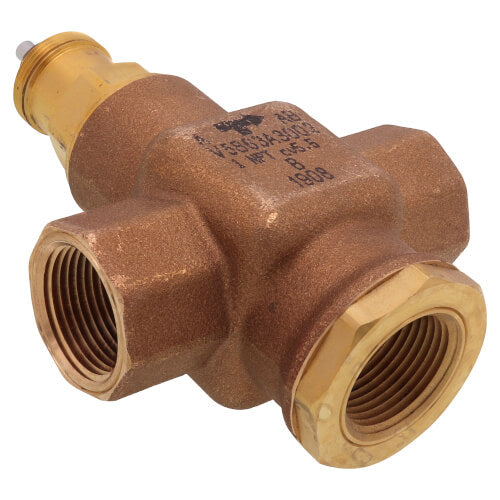

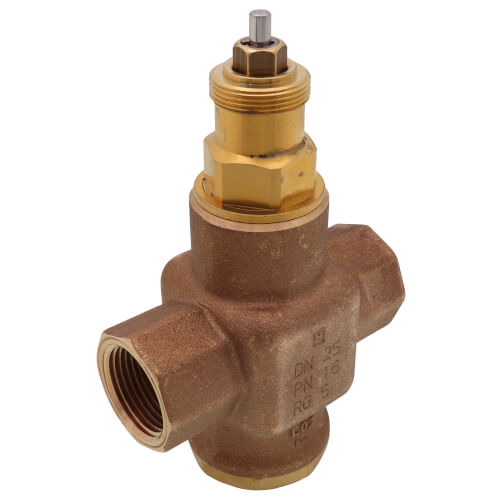

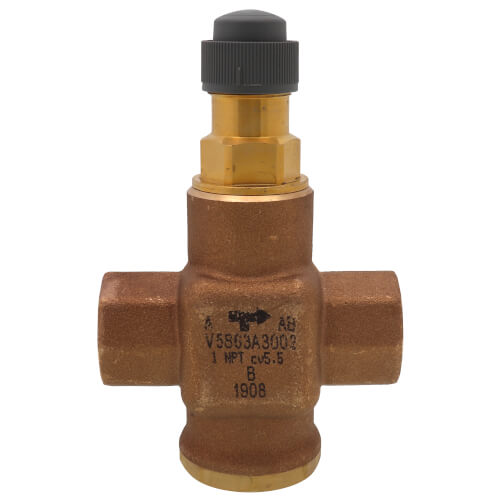

Honeywell V5863A3002 1 Inch Three-Way Valve 5.5 Cv

Product Description

Discover the efficient Honeywell V5863A3002, a 1 inch three-way valve that's ideal for regulating fluid flow in HVAC systems. This valve is perfect for applications requiring precise control over water or glycol mixtures.

• Optimized for low leakage to ensure consistent system operation.
• Durably constructed with a brass body and stainless steel trim.
• Inserts can be changed without draining the system, enhancing maintenance ease.

Product Highlights

The Honeywell V5863A3002 valve is known for its robust performance and reliability in HVAC applications, providing effective control and durability. It features interchangeable inserts and a manual operation option, making it versatile for various setups.

Product Information

Standard Information

• Valve Type: Three-way Cartridge Globe Valve
• Connection Type: NPT (Female)

Technical Specifications

• Body Material: Brass and Stainless Steel
• Maximum Safe Operating Pressure: 235 psi
• Maximum Differential Pressure: 232 psi
• Leakage Rating: ANSI Class III
• Flow Capacity (Cv): 5.5
