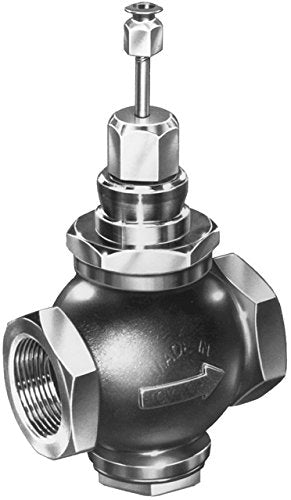

Honeywell V5047A1039 Valve 2 NPT Double Seated Globe Valve

Product Description

The Honeywell V5047A1039 is a versatile valve designed for controlling high-pressure steam, liquids, air, or noncombustible gases where positive final shutoff is not required. This double-seated globe valve is suitable for 2-position or proportional control.

• Double-seated construction
• Suitable for 2-position, floating, or proportioning control
• High capacity with minimal pressure drop

Product Highlights

The Honeywell V5047A1039 offers high performance and reliability in HVAC applications. With a cast iron body and stainless steel trim, it ensures durability and efficient operation.

Product Information

Standard Information

• Brand: Honeywell
• Model: V5047A1039
• Type: Valve

Technical Specifications

• Valve Type: Globe Valve
• Body Pattern: Two-way mixing
• Flow Characteristic: Equal Percentage
• Controlled Medium: Steam, chilled or hot water with up to 50% glycol
• Connection Type: Female NPT
• Max Safe Operating Pressure: 150 psi water, 100 psi steam
• Valve Action: Stem down to close
• ANSI/ASME Rating: 125
• Actuation: Must be purchased separately
• Stem Travel: 9/16 inches
• Static Pressure Rating: ANSI 125
• Ambient Temperature Rating: 32 F to 337 F
• Leakage Rating: Seat - 0.05% of Cv
• Materials (Body): Cast Iron
• Materials (Stem): Stainless Steel
• Bonnet Size: 1-3/8 inches
