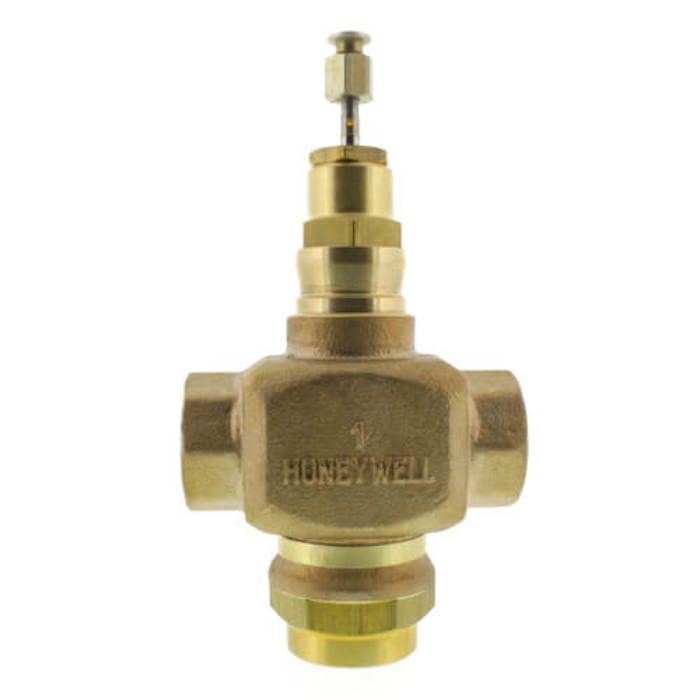

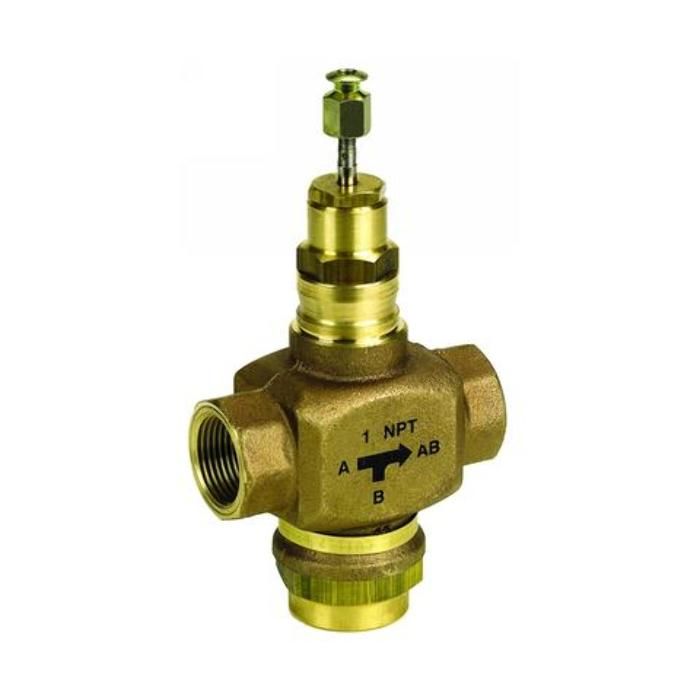

Honeywell V5013N1097/U Globe Valve, 3 Way, 2 in, 46.8 Cv

Product Description

The Honeywell V5013N1097/U is a three-way globe valve designed for HVAC applications. It effectively controls the flow of hot water, cold water, and glycol solutions up to fifty percent concentration.

• Low seat leakage rate of less than 0.05% of Cv
• Self-adjusting packing and durable red brass body
• Sizes available from one-half inch to two inches

Product Highlights

This valve ensures reliable temperature control and can be utilized with pneumatic or electric actuators. It features repack and rebuild kits for servicing in the field.

Product Information

Standard Information

• Brand: Honeywell
• Connection Type: Female NPT

Technical Specifications

• Dimensions: seven and thirteen-sixteenths inches high, five and one-fourth inches wide, one and thirteen-sixteenths inches deep
• Maximum Safe Operating Pressure: 217 psi
• Operating Temperature: thirty-six degrees Fahrenheit to two hundred forty-eight degrees Fahrenheit
• Body Material: Red brass
• Flow Characteristic: Linear and equal percentage
• Capacity (Cv): 46.8
• Leakage Rate: 0.05% of Cv
