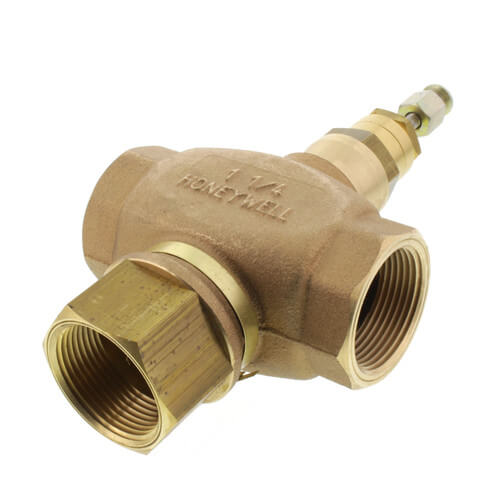

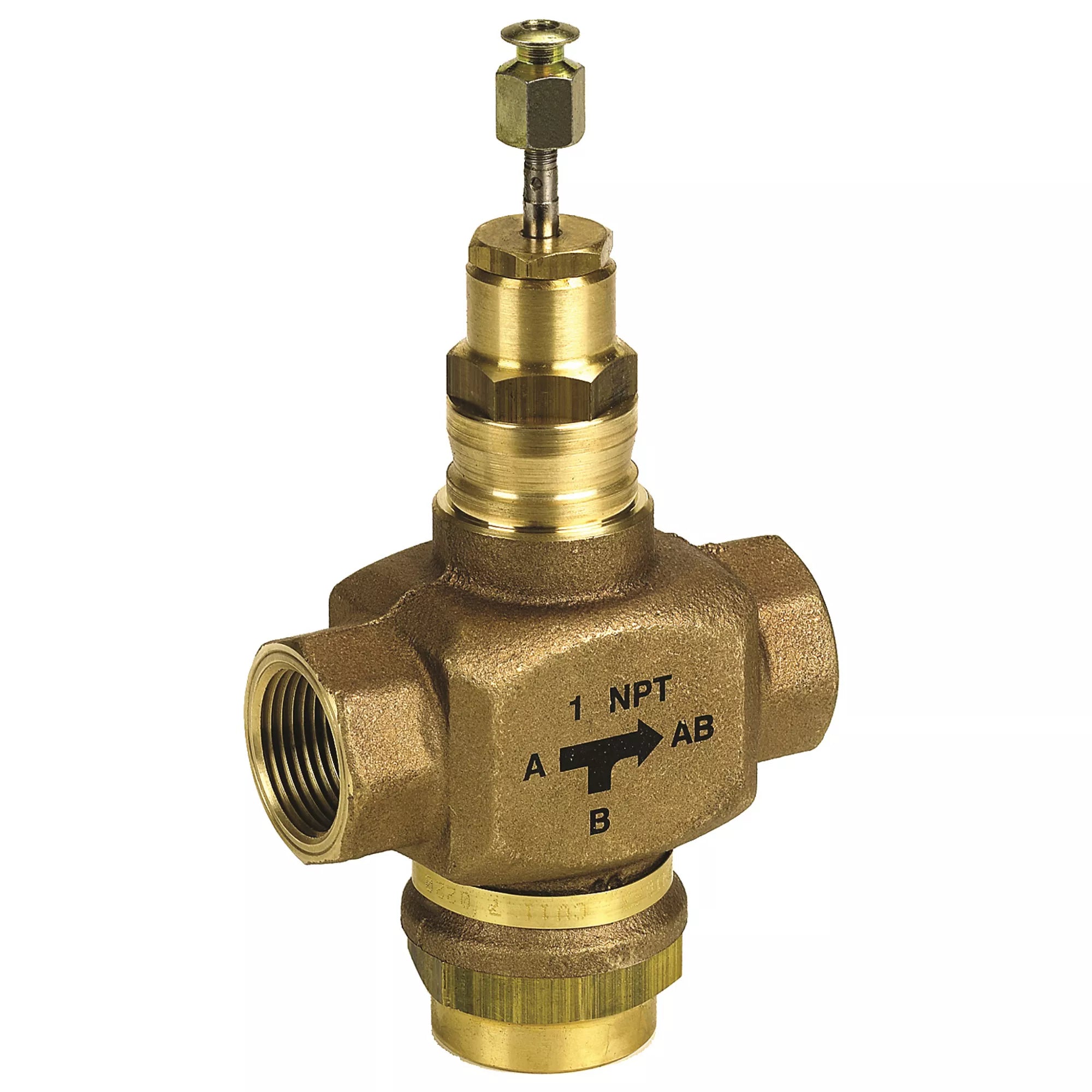

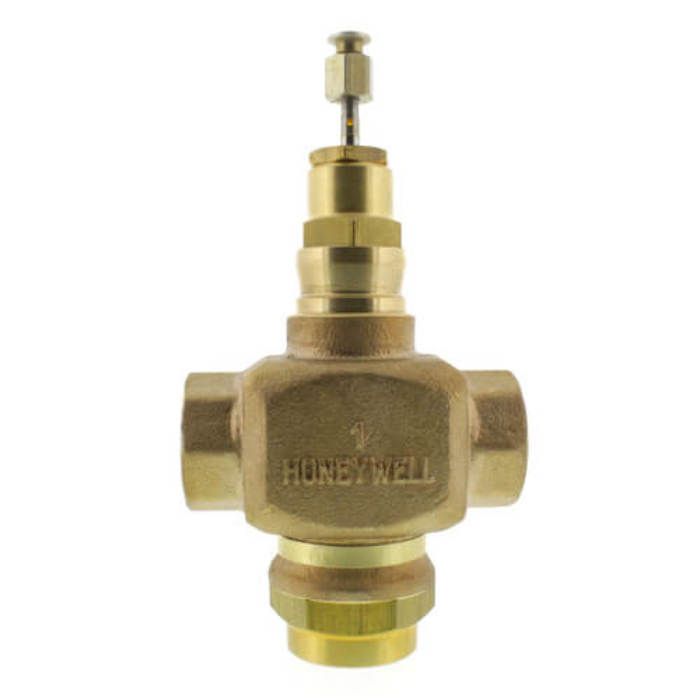

Honeywell V5013N1071/U Three-way Globe Valve, 1-1/4, Female

Product Description

The Honeywell V5013N1071/U is a three-way threaded globe valve designed for controlling hot water, cold water, and glycol solutions up to 50% concentration in HVAC heating or cooling applications. This valve directs flow from one or two inlets to a common outlet. It features NPT-threaded connections and is suitable for electric or pneumatic valve actuators.

• Controls hot water, cold water, and glycol solutions (up to 50% concentration).
• Directs flow from one or two inlets to a common outlet.
• Features a red brass body with NPT-threaded connections and a stainless steel stem with a brass plug.

Product Highlights

The Honeywell globe valve offers low seat leakage, spring-loaded packing, and constant total flow throughout the full stem travel.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: V5013N1071/U
• Country of Origin: United States

Technical Specifications

• Brand: Honeywell
• Composition: Brass
• Connection Size: 1 1/4"
• Connection Type: Female NPT
• EAN: 0085267193252
• UPC: 085267193252
• Country of Origin: USA
• Service: Hot Water, Cold Water, And Glycol Solutions Up To 50% Concentration
• Close-Off Pressure: 150 psi
• Flow Characteristic: Equal Percentage NC, Linear NO
• Operating Temperature: Actuator dependant, refer to appropriate ACTUATORS & DAMPERS section or ML Series (on following pages) for specifications
• Manufacturer: Honeywell
• Model / MPN: V5013N1071/U
• Product Type: VALVE
• Number of Items: 1.0
• Valve Type: Globe Valve
• Body Pattern: Three-way
• Controlled Medium: Water w/max of 50% Glycol
• Pipe Size (inch): 1-1/4 in.
• Pipe Size (DN): DN32
• Flow Capacity (Cv): 18.7 Cv
• Flow Capacity (kvs): 16 kvs
• Maximum Safe Operating Pressure (psi): 240 psi
• Maximum Safe Operating Pressure (kPa): 1655 kPa
• Valve Action: Mixing
• ANSI Rating: 150
• Actuation: Must be purchased separately
• Stem Travel (in.): 3/4 in.
• Stem Travel (mm): 20 mm
• Maximum Differential Pressure Ratings (Close-off) (psi): 240 psi
• Maximum Differential Pressure Ratings (Close-off) (kPa): 1655 kPa
• Maximum Differential for Quiet Water Service (psi): 20 psid
• Maximum Differential for Quiet Water Service (kPa): 138 kPa
• Static Pressure Rating: ANSI 150
• Ambient Temperature Range (F): 36 F to 248 F water
• Ambient Temperature Range (C): 2 C to 120 C water
• Leakage rate (%): 0.05% of Cv
• Materials (Body): Red Brass
• Materials (Seat): Stainless Steel
• Materials (Stem): Stainless Steel
• Materials (Plug/Ball/Disc): Brass
• Materials (Packing): Teflon/EPDM
• Stroke (in.): 3/4 in.
• Stroke (mm): 20 mm
• Bonnet Size (in.): 1-3/8 in.
• Bonnet Size (mm): 35 mm
• Used With: Q5020/DCA; ML6984/ML7984; Q5001/Modutrol IV Motor; ML6420,21A,25; ML7420/ML7421A/ML7425
• Approvals, CRN Number: 0C0861.9087YTN/0C0861.123
• Application: Point of Source
• Type: Valve Only
• Connection: NPT
• Cv: 18.7 CV
• Trim Material: Brass
• Pattern: 3-way
• Size: 1/2" to 2" FNPT
• Cv Range: 0.73 to 46.8
• Rangeability: 50:1 per VDI/VDE 2173
• Leakage Rating: ANSI Class III, 0.05% of Cv
• Life Expectancy: 250,000 full cycles at maximum rated temperature
• Maximum Close off Pressure: Actuator dependant, see Selection Chart; maximum differential pressure for quiet service 20 psid
• Pressure Drop: Maximum water differential pressure for quiet service 20 psid (138 kPa).
• Maximum Pressure Rating: Water: 217 psi (1497 kPa) from 36° to 248°F (2° to 120°C), 185 psi (1277 kPa) from 248° to 337°F (120° to 169°C); Steam: 100 psi (690 kPa) at 337°F (169°C), using stainless trim valve (V5011N2xxx):
• Pressure Rating: ANSI 150
• Materials Of Construction: Red brass body, stainless steel stem, metal-to-metal brass/stainless plug and seat, spring-loaded carbon-fiber reinforced Teflon® V-ring packing
• Media Compatibility: Hot or chilled water, <50% glycol, steam (use V5011N2xxx for steam above 15 psig (103 kPa) to 100 psig (690 kPa))
• Media Temperature Range: Brass trim: 36° to 248°F (2° to 120°C), 15 psig (103 kPa) steam; Stainless trim: 36° to 340°F (2° to 177°C), 100 psig (690 kPa) steam:
• Action: Stem up to open (2-way), stem up to open B-AB, close A-AB (3-way)
• Compatible Actuators: Honeywell MN/MS Series with appropriate Q5020 Linkage, or direct-mount ML Series shown on following pages. For pneumatic actuation see MP953 Series in PNEUMATICS & FITTINGS catalog section.
• Actuator Mounting: U-bolt or set screws to fit 1-3/8" valve yoke diameter, 3/4" stroke length
• Approvals: Actuator dependant, refer to appropriate ACTUATORS & DAMPERS section or ML Series (on following pages) for specifications
• Body Material: BRASS
• End Style: FNPT
• Nominal Size: 1-1/4 in
• Softgoods Material: PTFE/EPDM
• Temperature Rating: 36 to 248 deg F
• Product Series: V5013N
• Family Series: Honeywell HVAC Valves, V5013N Series
• Description: GLOBE VALVE
• Capacity: 18.7 Cv
• Pipe Size: 1.25 "
• Threaded: Threaded
• Max Close-Off Pressure: 20 psi
• Max Static Pressure: 240 psi
• Valve Style: Globe
• Medium Temperature Range: 36-248 °F
