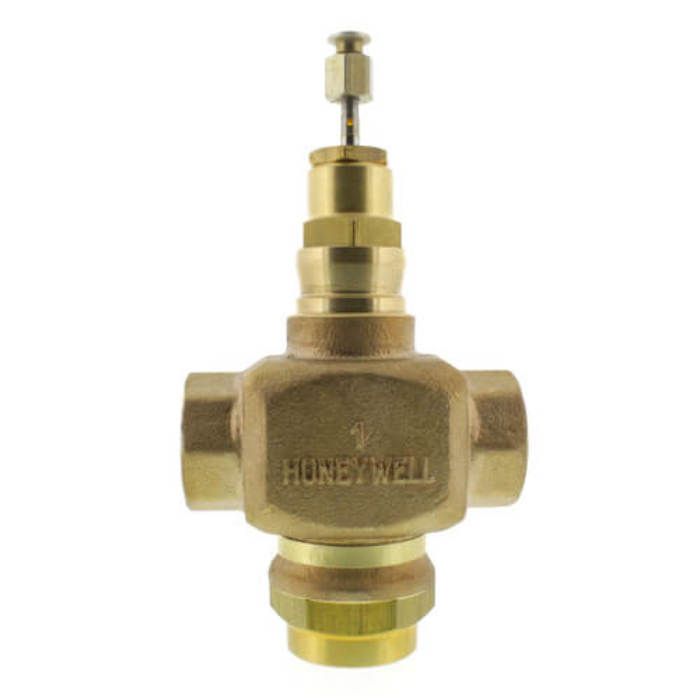

Honeywell V5013N1063/U Globe Valve, 3 Way, 1 in. 11.7 Cv

Product Description

The Honeywell V5013N1063/U is a three-way globe valve designed for efficient control of hot water, cold water, and glycol solutions in HVAC applications. This valve is compatible with a variety of actuators and can handle diverse heating and cooling needs.

• Suitable for hot and cold water, and glycol solutions.
• Designed for accurate temperature control with low seat leakage.
• Offers a range of functionality with direct mounting options for both electric and pneumatic actuators.

Product Highlights

This valve provides effective management of fluid flow in HVAC systems with precision and reliability.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: V5013N1063/U

Technical Specifications

• Service: Hot Water, Cold Water, and Glycol Solutions up to 50% concentration
• Close-Off Pressure: 150 psi
• Flow Characteristic: Port A-AB: Equal Percentage, Port B-AB: Linear
• Operating Temperature: 36 F to 248 F
• Dimensions: 7.3125 in. high x 4.0625 in. wide x 1.5625 in. deep
• Capacity (Cv): 11.7 Cv
• Materials: Red Brass Body, Stainless Steel Stem, Integral Brass Seat
