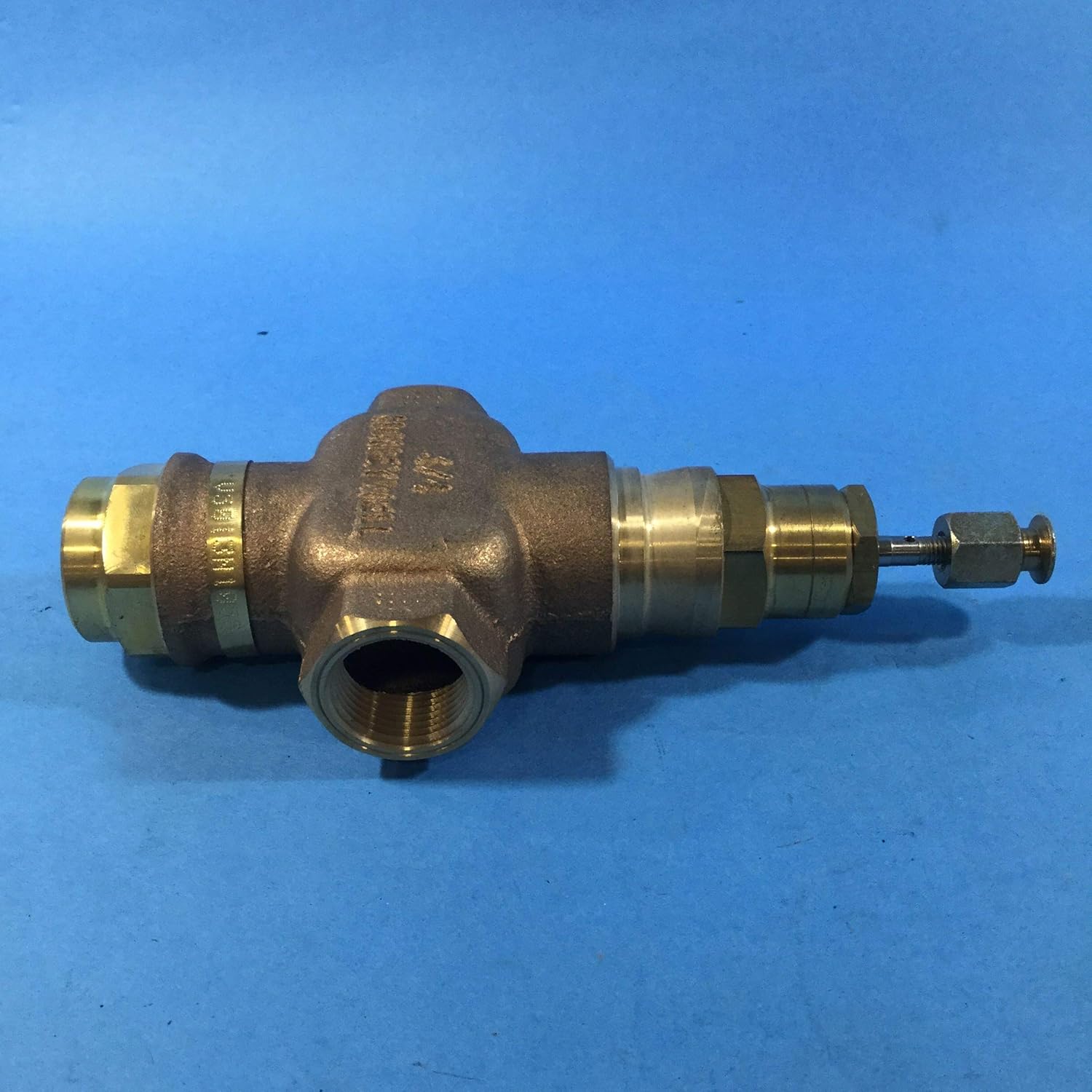

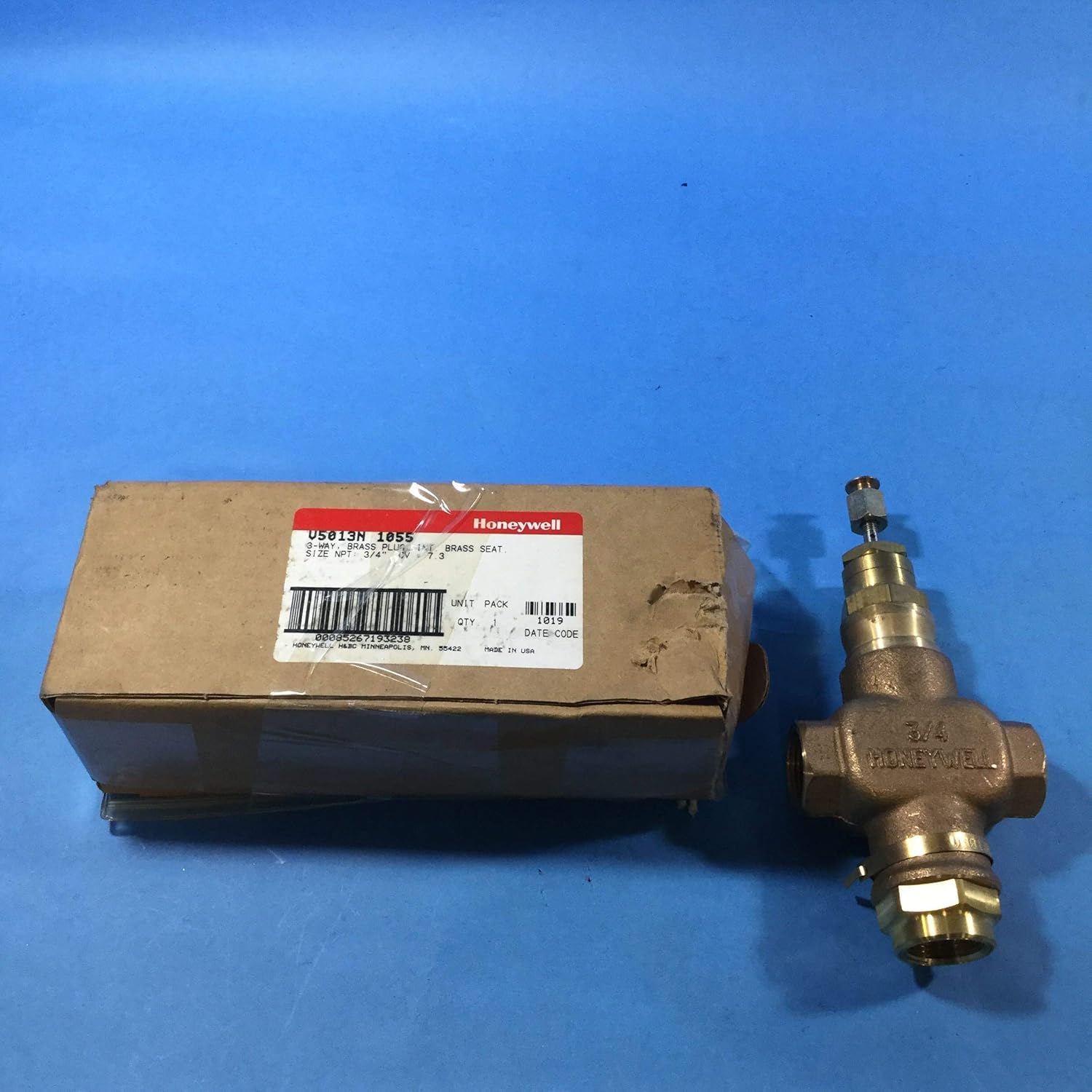

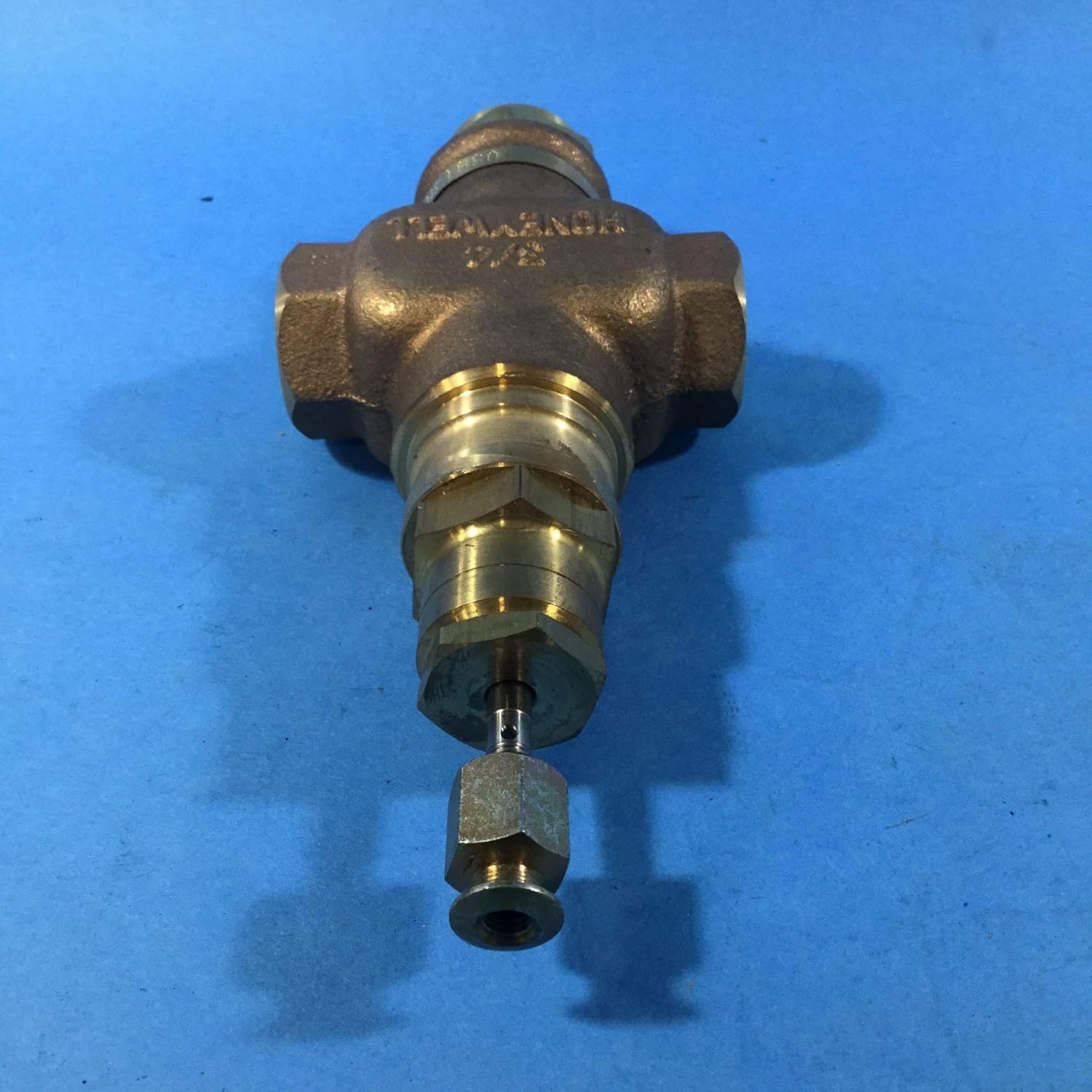

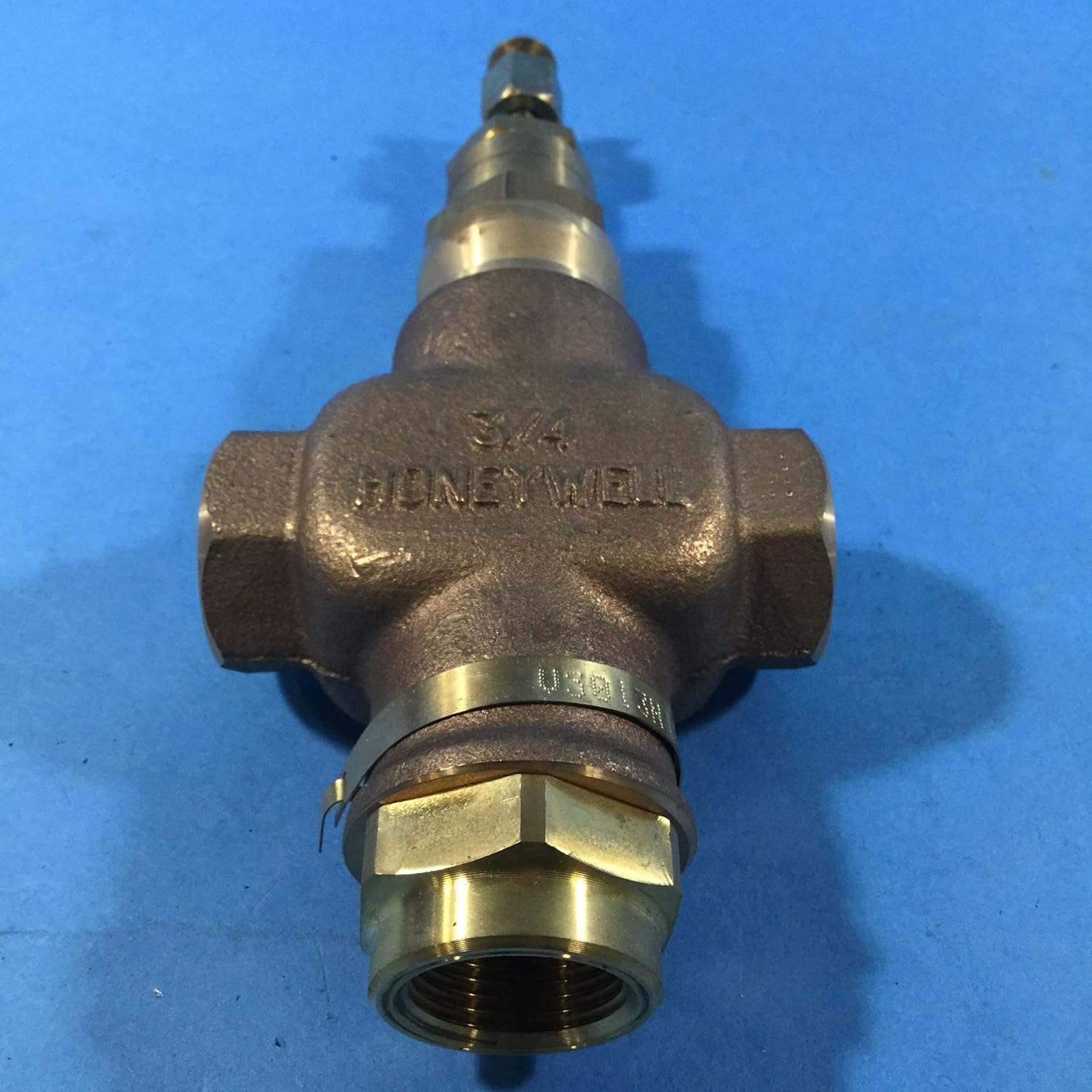

Honeywell V5013N1055 3/4 NPT 3-Way Mixing Valve 7.3 Cv

Product Description

The Honeywell V5013N1055 is a 3-way 3/4 inch NPT mixing valve designed for controlling hot and cold water, as well as glycol solutions in HVAC systems. This valve combines or diverts flow to a common outlet with precision, making it suitable for various heating and cooling applications.

• 3/4 inch NPT connection
• 7.3 Cv flow capacity
• Three-way mixing functionality

Product Highlights

This valve features a robust red brass body, stainless steel stem, brass plug, and Teflon/EPDM packing. It ensures accurate temperature control with low leakage and high rangeability. It operates in a wide temperature range, suitable for both water and glycol mixtures.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V5013N1055

Technical Specifications

• Valve Type: Globe Valve
• Body Pattern: Three-way
• Flow Characteristic: Equal Percentage (A-AB); Linear (B-AB)
• Controlled Medium: Water with maximum 50 percent Glycol
• Connection Type: NPT Female
• Piping Configuration: 3-Way
• Valve Size: 3/4 inch
• Flow Capacity: 7.3 Cv
• Maximum Safe Operating Pressure: 240 psi
• Body Material: Red Brass
• Stem Material: Stainless Steel
• Plug Material: Brass
• Packing Material: Teflon/EPDM
• Dimensions: 7 5/16 inches high x 3 1/4 inches wide x 1 9/16 inches deep
• Stroke: 3/4 inch
• Temperature Range: 36 F to 248 F
• ANSI Rating: 150
• Actuation: Must be purchased separately
