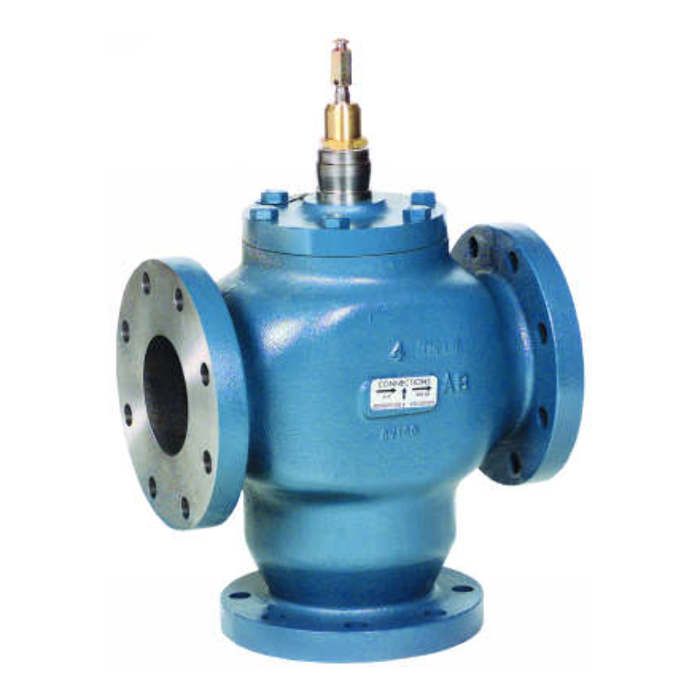

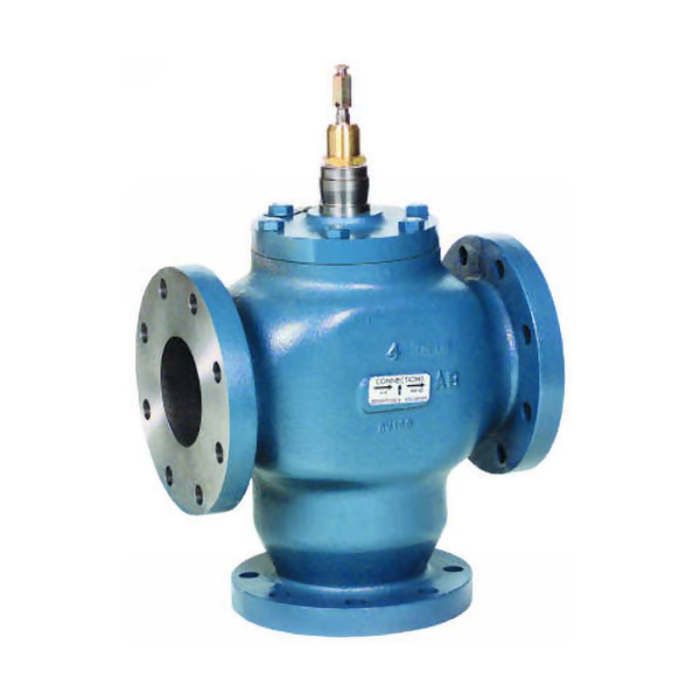

Honeywell V5013C1001/U Globe Valve 3 Way 2-1/2 in 63 Cv

Product Description

The Honeywell V5013C1001/U is a globe valve designed for three-way applications. This valve has a connection size of two and one-half inches and offers a flow capacity of sixty-three Cv. Its robust construction includes a cast iron body, a bronze seat, and a stainless steel stem, making it suitable for various heating and cooling systems.

• Suitable for hot water, cold water, and glycol solutions up to fifty percent concentration.
• Features spring-loaded, self-adjusting packing for reliable operation.
• Compatible with pneumatic or electric/electronic actuation.

Product Highlights

This valve is ideal for both mixing and diverting applications, ensuring constant total flow control of water and glycol solutions.

Product Information

Standard Information

• Product Type: Globe Valve
• Body Material: Cast Iron

Technical Specifications

• Service: Hot water, cold water, and glycol solutions up to fifty percent concentration
• Close-Off Pressure: 125 psi
• Flow Characteristic: Linear
• Maximum Operating Pressure: 150 psi at 240 degrees Fahrenheit
• Dimensions: Ten and fifteen-sixteenth inches high x seven inches wide x nine and one-half inches deep
• Pipe Size: 2.5 inches
• Ambient Temperature Range: Forty degrees to two hundred fifty degrees Fahrenheit
• Valve Action: Stem up increases AB to A flow
