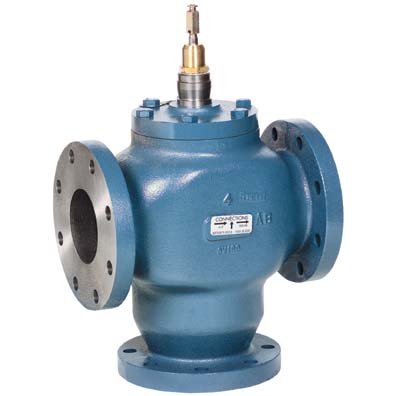

Honeywell V5013C1001 2-1/2 Flanged Three-Way Diverting Valve 63 Cv

Product Description

The Honeywell V5013C1001 is a two and a half inch flanged three-way diverting valve designed for industrial use. This valve is made with robust cast iron materials and offers a flow capacity of sixty-three Cv. It provides precise flow control for chilled or hot water applications, functioning effectively in heating and cooling systems.

• 3-way diverting action for optimal flow management.
• Flanged connection allows straightforward integration into existing systems.
• High durability with a stainless steel stem to reduce corrosion.

Product Highlights

This valve is engineered to enhance performance in HVAC systems, facilitating efficient liquid distribution across various applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V5013C1001

Technical Specifications

• Valve Type: Globe Valve
• Body Pattern: Three-way
• Controlled Medium: Chilled or hot water with up to 50% Glycol
• Connection Type: Flanged
• Max Safe Operating Pressure: 150 psi at 240°F water
• Valve Action: Stem up increases AB to A flow
• ANSI/ASME Rating: 125
• Maximum Differential for Quiet Water Service: 20 psi
