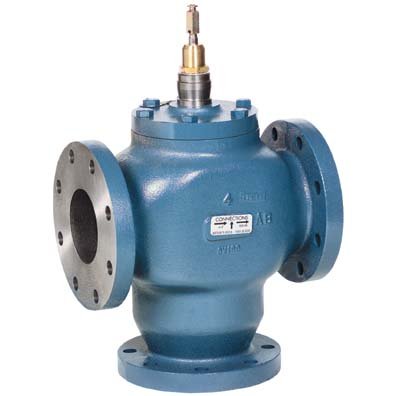

Honeywell V5013B1011 3Way Flanged Globe Valve 3 Inch

Product Description

The Honeywell V5013B1011 is a three-way flanged globe valve designed to control the flow of hot or chilled water in heating and cooling systems. It features a 3-inch connection and provides a high flow capacity with a Cv factor of 100. This valve is constructed from durable cast iron, ensuring long-lasting performance in demanding environments.

• 3-inch connection
• Three-way flanged globe valve
• High flow capacity with Cv factor of 100

Product Highlights

Ideal for industrial applications requiring precise flow control.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V5013B1011

Technical Specifications

• Valve Type: Globe Valve
• Body Pattern: Three-way
• Controlled Medium: Chilled or hot water with up to 50% glycol
• Connection Type: Flanged
• Max Safe Operating Pressure: 150 psi at 240 F
• Valve Action: Stem up increases B to AB flow
• ANSI/ASME Rating: 125
• Materials (Body): Cast Iron
• Materials (Seat): Bronze
• Materials (Stem): Stainless Steel
• Bonnet Size: 1-3/8 inches
• Weight: 73.35 lbs
• Length: 11 inches
• Width: 17.5 inches
• Height: 12.5 inches
