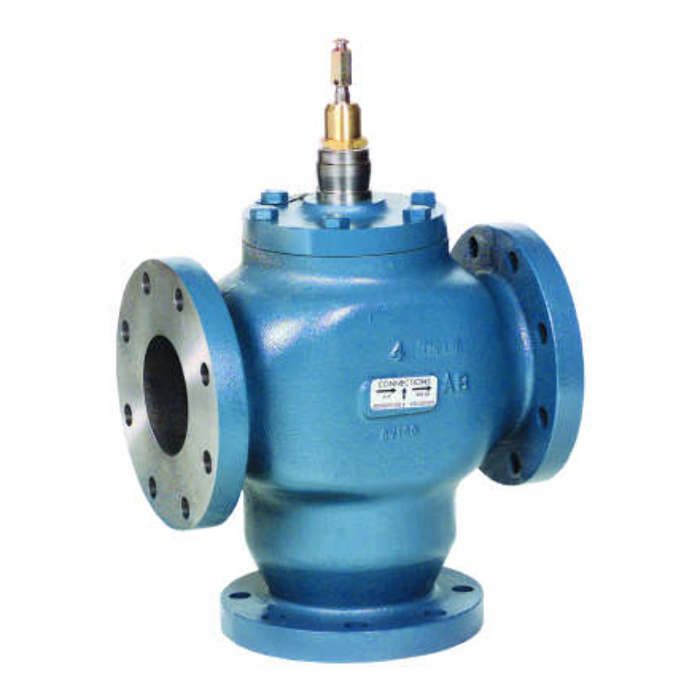

Honeywell V5013B1003/U Globe Valve 3-Way Straight Through Mixing 2-1/2 Inch 63 CV Flanged

Product Description

The Honeywell V5013B1003/U is a three-way mixing globe valve designed for hot and chilled water systems. This valve features a flanged connection and is suitable for use in commercial settings. It is ideal for providing proportional or two-position control of fluids in various applications.

• Size: Two and a half inches
• Flow Rate: 63 CV
• Pressure Rating: 150 PSI at 240°F water

Product Highlights

The valve helps manage water and glycol solutions at a maximum concentration of fifty percent. It is compatible with direct mounting actuators, ensuring reliable control in your systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V5013B1003/U

Technical Specifications

• Product Type: 3-Way Straight Through Mixing
• Size: 2-1/2 inches
• Flow Rate: 63 CV
• End Connection: Flanged
• Pressure Limit: 150 PSI at 240°F water
• Application: Water or Glycol Solution (50% Max)
• Dimensions: 10-15/16 inches (Height) x 7 inches (Width) x 9-1/2 inches (Length)
• Shipping Weight: 57.200 lbs
