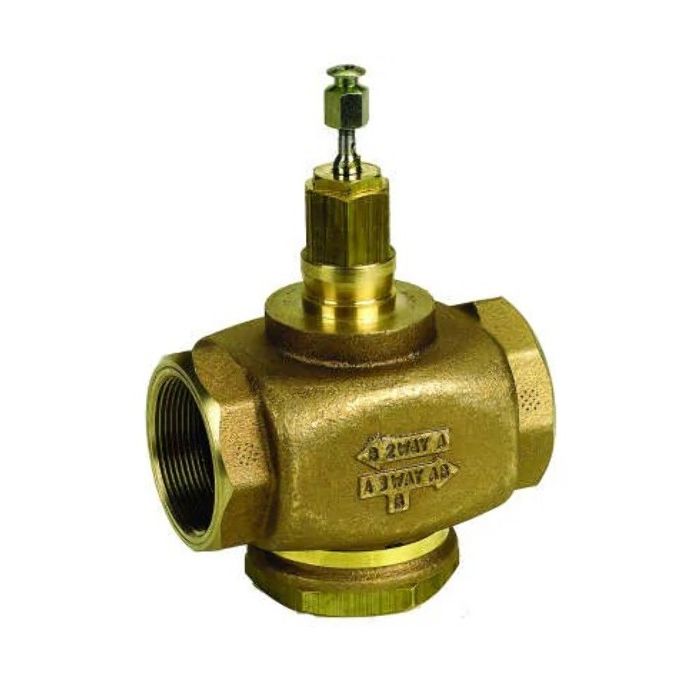

Honeywell V5011N2097/U Globe Valve, 2 Way, 2 in. 46.8 Cv

Product Description

The Honeywell V5011N2097/U is a two-way globe valve designed to control steam, water, and glycol solutions in heating or cooling systems. This valve features a high precision flow regulation and is built of durable materials for long-lasting performance.

• Low seat leakage rate of less than 0.05% of Cv
• Spring-loaded, self-adjusting packing for maintenance-free operation
• Available in size ranges from half an inch to two inches

Product Highlights

This valve is ideal for both residential and commercial heating systems, ensuring effective temperature control and energy efficiency.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: V5011N2097/U

Technical Specifications

• Operating Temperature: 36 F to 248 F
• Close-Off Pressure: 150 psi
• Flow Characteristic: Linear
• Dimensions: 11.31 inches high x 5.25 inches wide x 4.75 inches deep
• Max Pressure: 100 psi at 337 F steam
• Body Material: Red brass
• Stem Material: Stainless steel
• Connection Type: Female NPT
