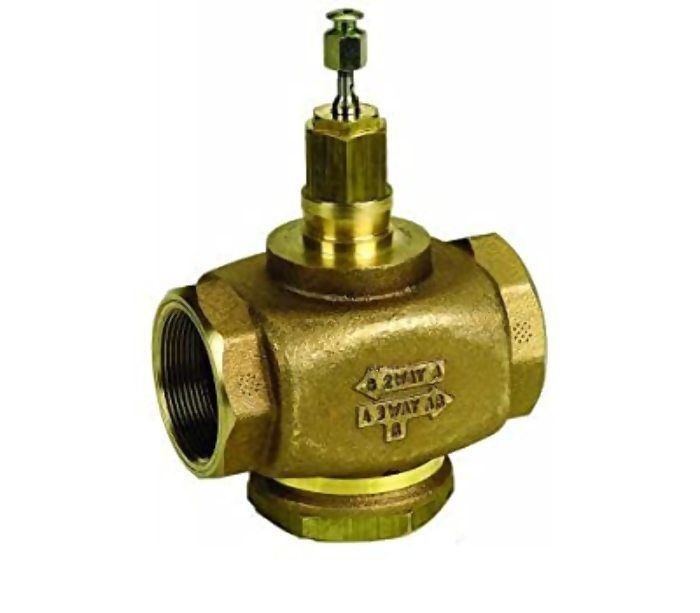

Honeywell V5011N2048/U Globe Valve 2 Way 1/2 in 4.7 Cv

Product Description

The Honeywell V5011N2048/U Globe Valve is designed for controlling the flow of steam, water, and glycol solutions in HVAC systems. This valve features a 1/2 inch pipe size and has a Cv value of 4.7, making it suitable for various heating and cooling applications.

• Low seat leakage rate of less than 0.05% of Cv
• Spring-loaded, self-adjusting packing
• Directly couples with both electric and pneumatic actuators

Product Highlights

This two-way globe valve effectively regulates flow in residential and commercial settings, ensuring optimal temperature control.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: V5011N2048/U

Technical Specifications

• Service: Steam, water, and glycol solutions up to 50% concentration
• Close-off Pressure: 150 psi
• Flow Characteristic: Linear
• Operating Temperature: 36 F to 248 F
• Dimensions: 6.625 inches high x 3.25 inches wide x 1.5625 inches deep
• Materials: Red brass body, stainless steel seat and stem
• Valve Type: Globe
