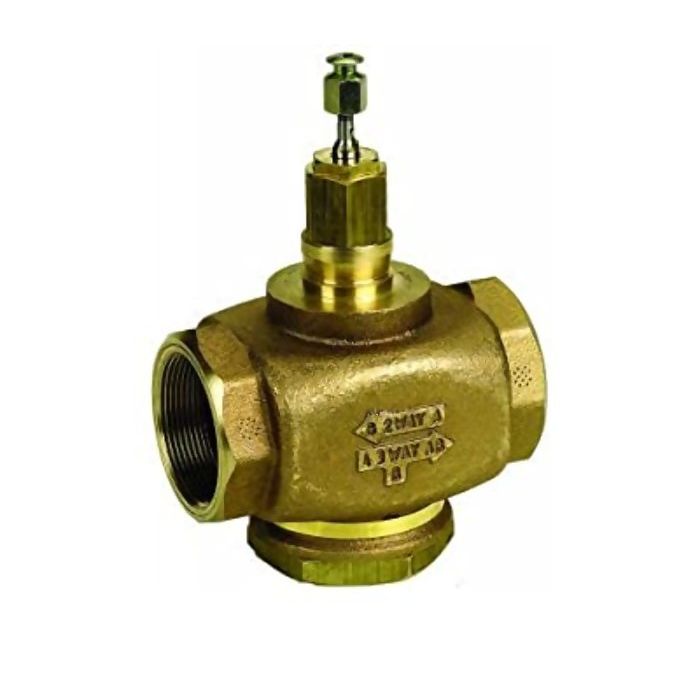

Honeywell V5011N2022/U Globe Valve, 2 Way, 1/2 in. 1.85 Cv

Product Description

The HONEYWELL V5011N2022/U is a globe valve used for modulating control of steam, water, and glycol solutions in heating or cooling systems. It features a red brass body, stainless steel seat and stem. It is suitable for two-position control. Sizes range from 1/2 to 2 inches.

• Low Seat Leakage Rate (<005% Of Cv)
• Spring-Loaded, Self-Adjusting Packing
• 50:1 Range ability Per VDI/VDE 2185

Product Highlights

The HONEYWELL V5011N2022/U globe valve ensures state-of-the-art temperature control with direct coupled electric and pneumatic actuators for easy mounting.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: V5011N2022/U

Technical Specifications

• Service: Steam, Water, And Glycol Solutions Up To 50% Concentration
• Close-Off Pressure: 150 psi
• Flow Characteristic: Linear
• Operating Temperature: 36 F To 248 F
• Manufacturer: HONEYWELL
• Product: Valves and Valve Actuators
• Style: Valves and Valve Actuators
• Maximum Safe Operating Pressure (psi): 100 psi/337 F steam
• Maximum Safe Operating Pressure (kPa): 690 kPa/169C steam
• Used With: ML6984/ML7984; Q5020/DCA; Q5001/Modutrol IV Motor; MP953; ML6420,21A,25; ML7420/ML7421A/ML7425
• Ambient Temperature Range (F): 36 F to 248 F water; 340 F steam
• Ambient Temperature Range (C): 2 C to 120 C water; 171 C steam
• Connection Type: Female NPT
• Body Pattern: Two-way
• Pipe Size (inch): 1/2 in.
• Pipe Size (DN): DN15
• Bonnet Size (in.): 1-3/8 in.
• Maximum Differential Pressure Ratings (Close-off) (psi): 240 psi; For Quiet Water Service--20 psid
• Maximum Differential Pressure Ratings (Close-off) (kPa): 1655 kPa; For Quiet Water Service--138 kPa
• Capacity (Cv): 1.85 Cv
• Capacity (Kv): 1.6 kvs
• Valve Action: Stem down to close
• Valve Type: Globe Valve
• Controlled Fluid: Chilled or hot water with up to 50% Glycol or Steam. Not for use with fuels.
• Materials (Body): Red Brass
• Materials (Seat): Stainless Steel
• Materials (Stem): Stainless Steel
• Materials (Cartridge): Stainless Steel
• Actuation: Must be purchased separately
• Static Pressure Rating (psi): Meets ANSI 150 Standard
• Static Pressure Rating (kPa): Meets ANSI 150 Standard
• ANSI/ASME Rating: 150
• Stem Travel (in.): 3/4 in.
• Stem Travel (mm): 20 mm
• Bonnet Size (mm): 35 mm
• Materials (Plug/Ball/Disc): Stainless Steel
• Materials (Packing): Teflon
• Leakage: Seat: 0.05% of Cv
• Approvals, CRN Number: 0C0861.9087YTN/0C0861.111
• Type: Valve Only
• Connection: NPT
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 1/2 in
• Manufacturer Part Number: V5011N2022/U
• Product Series: V5011N
• Family Series: Honeywell HVAC Valves, V5011N Series
• Description: SINGLE SEATED 2-WAY VALVE
• Pipe Size: 0.5 "
• Threaded: Threaded
• Max Close-Off Pressure: 20 psi
• Max Static Pressure: 240 psi
• Valve Style: Globe
• Medium Temperature Range: 36-248 00b0F
• Net Weight: 2.6 lbs
