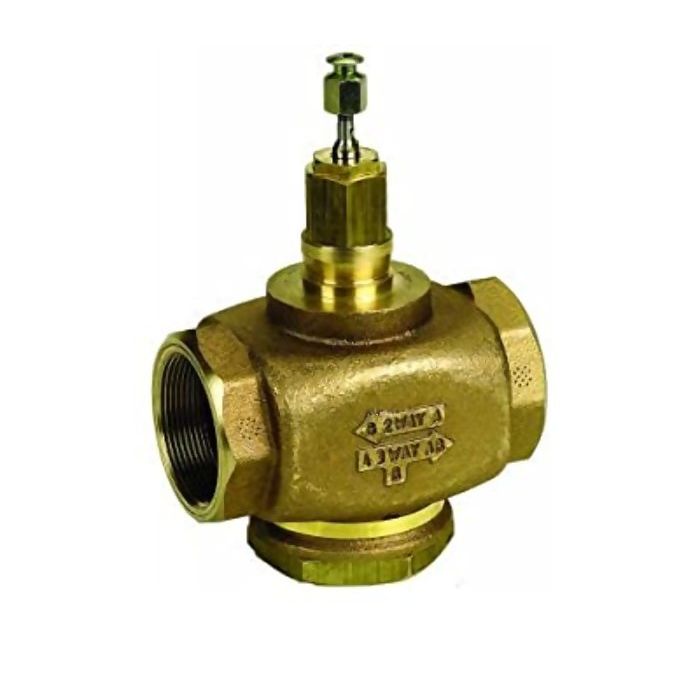

Honeywell V5011N1040/U Globe Valve 2 Way 1/2 in 4.7 Cv

Product Description

The Honeywell V5011N1040/U is a two-way globe valve designed for use in heating and cooling systems. This valve controls the flow of steam, water, and glycol solutions up to fifty percent concentration. It features a female NPT connection and supports a maximum safe operating pressure of 217 psi at two hundred forty-eight degrees Fahrenheit.

• Low seat leakage rate of less than 0.05% of Cv
• Stainless steel stem and seat provide durability and corrosion resistance
• Sizes range from half inch to two inches

Product Highlights

This valve is ideal for precise control of temperature in HVAC systems. It can be used with electric and pneumatic actuators for straightforward installation.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: V5011N1040/U

Technical Specifications

• Service: Steam, water, and glycol solutions up to fifty percent concentration
• Close-Off Pressure: 150 psi
• Flow Characteristic: Equal percentage
• Operating Temperature: 36 F to 248 F
• Dimensions: 6.625 in height x 3.25 in width x 1.5625 in depth
• Maximum Differential Pressure: 240 psi
• Capacity: 4.7 Cv
• Body Material: Red brass
• Seat Material: Stainless steel
