Honeywell V5011N1016/U Globe Valve, 2 Way, 1/2 in. 1.16 Cv

Product Description

The HONEYWELL V5011N1016/U is a two-way threaded globe valve designed for controlling steam, water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC systems. It is used in two-position and modulating control systems and is not suitable for combustible gas service.

• Low Seat Leakage Rate (<005% Of Cv)
• Spring-Loaded, Self-Adjusting Packing
• 50:1 Range ability Per VDI/VDE 2174

Product Highlights

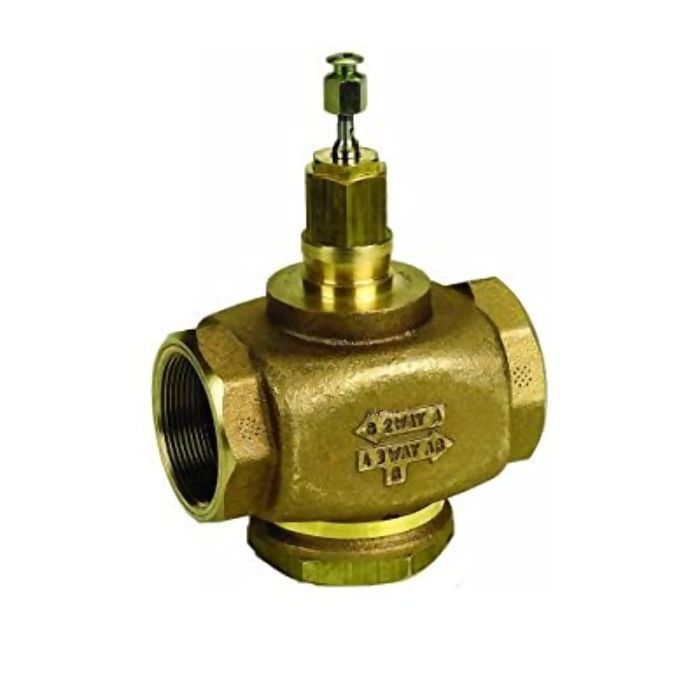

This globe valve features a red brass body, stainless steel seat and stem, and is designed for use with electric and pneumatic actuators.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: V5011N1016/U

Technical Specifications

• Service: Steam, Water, And Glycol Solutions Up To 50% Concentration
• Close-Off Pressure: 150 psi
• Flow Characteristic: Equal Percentage
• Operating Temperature: 36 F To 248 F
• Maximum Safe Operating Pressure (psi): 217 psi at 248 F
• Maximum Safe Operating Pressure (kPa): 1500 kPa at 120 C
• Used With: Q5020/DCA; ML6984/ML7984; Q5001/Modutrol IV Motor; MP953; ML7420/ML7421A/ML7425; ML6420,21A,25
• Ambient Temperature Range (F): 36 F to 248 F water
• Ambient Temperature Range (C): 2 C to 120 C water
• Connection Type: Female NPT
• Body Pattern: Two-way
• Pipe Size (inch): 1/2 in.
• Pipe Size (DN): DN15
• Bonnet Size (in.): 1-3/8 in.
• Maximum Differential Pressure Ratings (Close-off) (psi): 240 psi; For Quiet Water Service--20 psid
• Maximum Differential Pressure Ratings (Close-off) (kPa): 1655 kPa; For Quiet Water Service--138 kPa
• Capacity: 1.2 Cv
• Valve Action: Stem down to close
• Valve Type: Globe Valve
• Controlled Fluid: Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
• Materials (Body): Red Brass
• Materials (Seat): Stainless Steel
• Materials (Stem): Stainless Steel
• Materials (Cartridge): Brass
• Actuation: Must be purchased separately
• Static Pressure Rating (psi): Meets ANSI 150 Standard
• Static Pressure Rating (kPa): Meets ANSI 150 Standard
• ANSI/ASME Rating: 150
• Stem Travel (in.): 3/4 in.
• Stem Travel (mm): 20 mm
• Bonnet Size (mm): 35 mm
• Materials (Plug/Ball/Disc): Brass
• Materials (Packing): Teflon
• Leakage: Seat: 0.05% of Cv
• Approvals, CRN Number: 0C0861.9087YTN/0C0861.100
• Category: Commercial Building Controls
• Manufacturer: HONEYWELL
• Product: Valves and Valve Actuators
• Style: Valves and Valve Actuators
• Cv: 1.16 CV
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 1/2 in
• Model: V5011N
• Valve Size: 1/2"
• Valve Connection: NPT
• Piping Configuration: Straight
• Body Material: Red Brass
• Valve Application: Steam, Water
• Max Pressure: 15 psi WSP, 250 psi WOG
• End Style: FNPT
• Nominal Size: 1/2 in
• Pressure Class: 150 Lb
• Inlet to Outlet Length: 3-1/4
• Manufacturer #: V5011N1016/U
• Series: V5011N
• Softgoods Material: PTFE Packing
• Equal percentage flow characteristic: True
• Pipe Size: 0.5 in
• Assembly: Valve Only
• Trim: Brass
• Valve Number: V5011N1016
