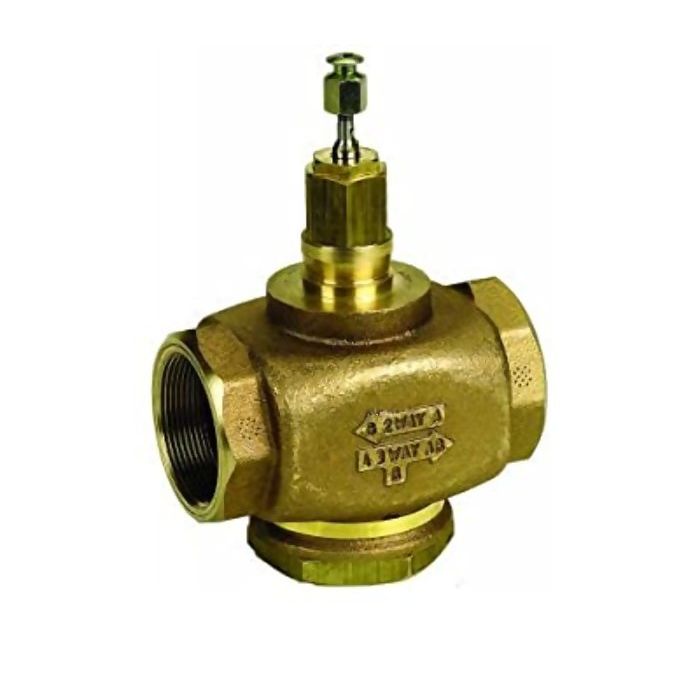

Honeywell V5011N1008/U Globe Valve 2 Way 1/2 in 0.73 Cv

Product Description

The Honeywell V5011N1008/U is a globe valve designed for two-way flow control. This valve features a half-inch connection and provides a capacity of 0.73 Cv. It is suitable for regulating the flow of steam, water, and glycol solutions in heating and cooling systems.

• Low seat leakage rate of less than 0.05% of Cv.
• Self-adjusting packing allows for reliable performance.
• Directly coupled actuators simplify installation and use.

Product Highlights

This valve supports two-position or modulating control, making it versatile for HVAC applications.

Product Information

Standard Information

• Type: Globe Valve
• Size: 1/2 inch

Technical Specifications

• Service: Steam, water, and glycol solutions up to 50% concentration
• Close-Off Pressure: 150 psi
• Flow Characteristic: Equal percentage
• Operating Temperature: 36 F to 248 F
• Maximum Safe Operating Pressure: 217 psi at 248 F
• Dimensions: 6.625 inches high x 3.25 inches wide x 1.5625 inches deep
