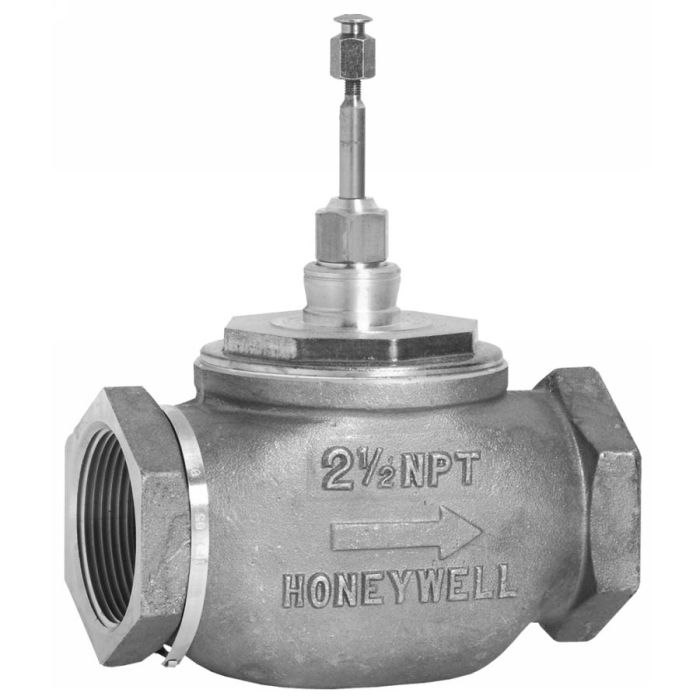

Honeywell V5011G1111/U Globe Valve 2 Way 2-1/2 in 63 Cv

Product Description

The Honeywell V5011G1111/U is a two-way globe valve used in HVAC systems for controlling steam and water. This valve has a pipe size of 2-1/2 inches and a flow capacity of 63 Cv. It features a red brass body, stainless steel seat, and a stainless steel stem, ensuring durability and resistance against corrosion.

• Compatible with steam and water systems
• High durability due to stainless steel components
• Spring-loaded, self-adjusting packing for efficient sealing

Product Highlights

This valve is suitable for direct or reverse-acting applications with high-pressure steam models.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V5011G1111/U

Technical Specifications

• Service: Steam, water, and glycol solutions up to 50% concentration
• Close-Off Pressure: 150 psi
• Flow Characteristic: Equal Percentage
• Operating Temperature: 45 F to 250 F (4 C to 121 C)
• Dimensions: 8 inches high x 1.625 inches wide x 5.625 inches deep
• Maximum Safe Operating Pressure: 240 psi at 150 F water; 100 psi at 337 F steam
• Body Pattern: Two-way, straight-through
• Pipe Size: 2-1/2 inches
